Description

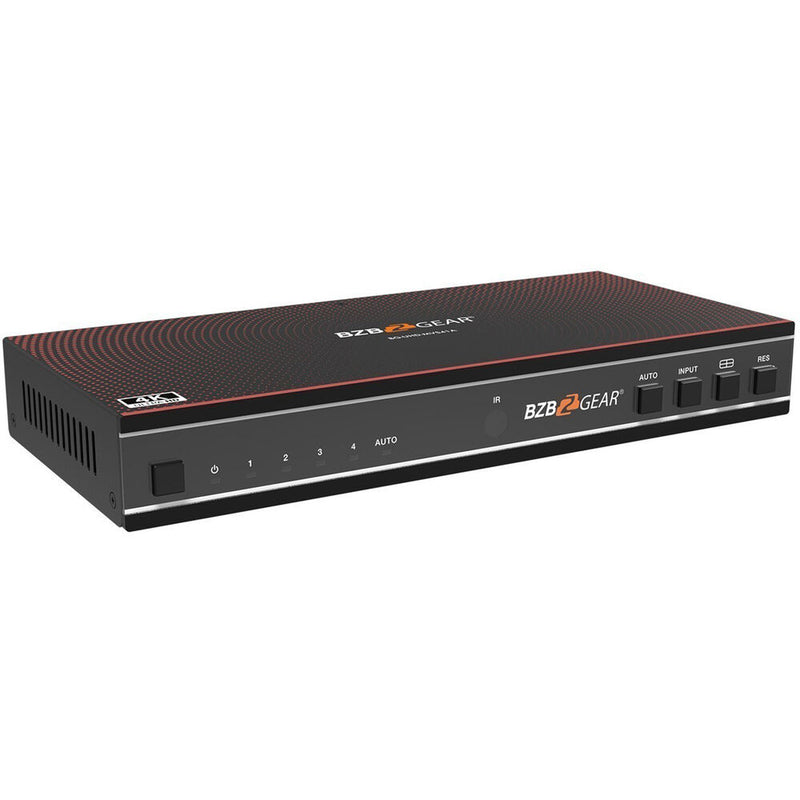

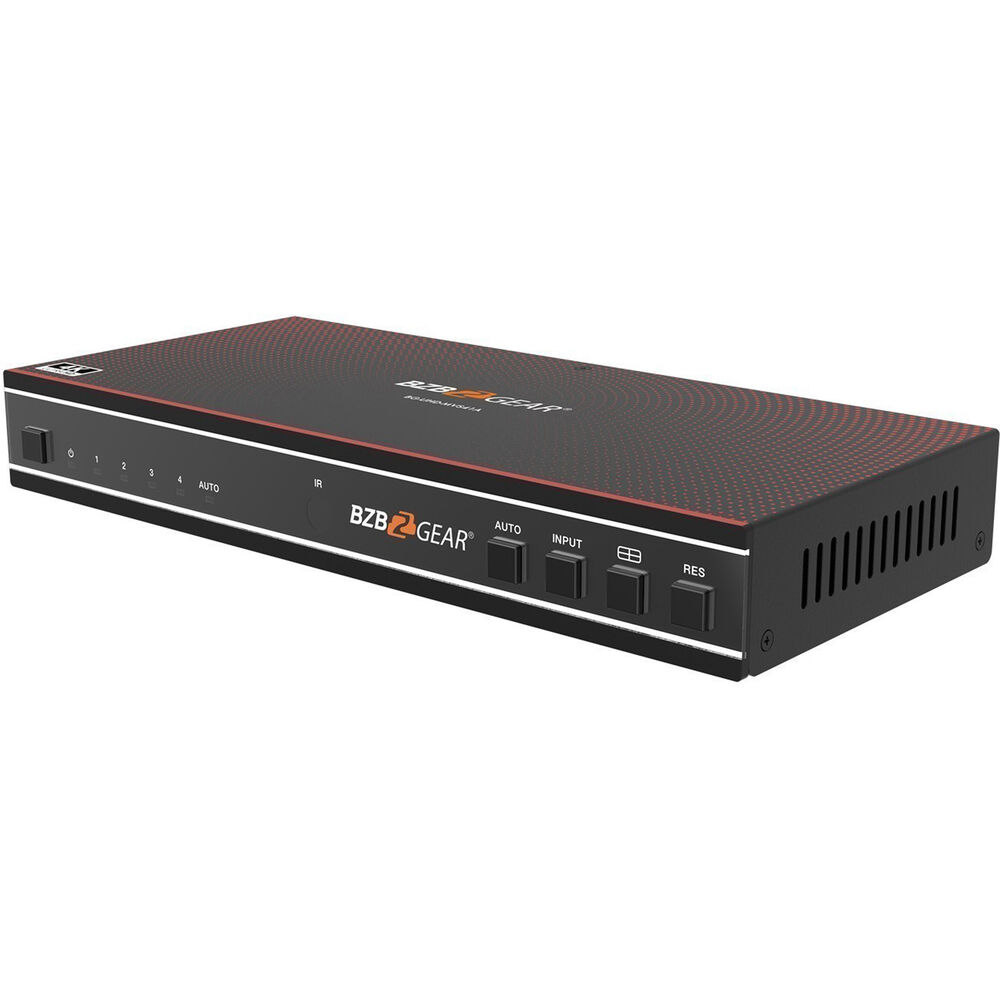

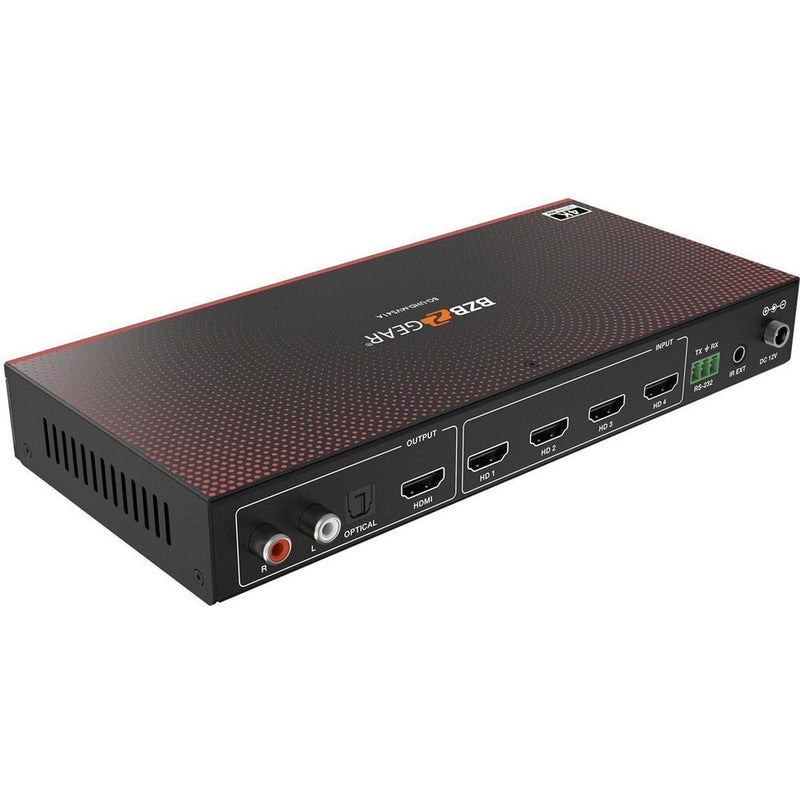

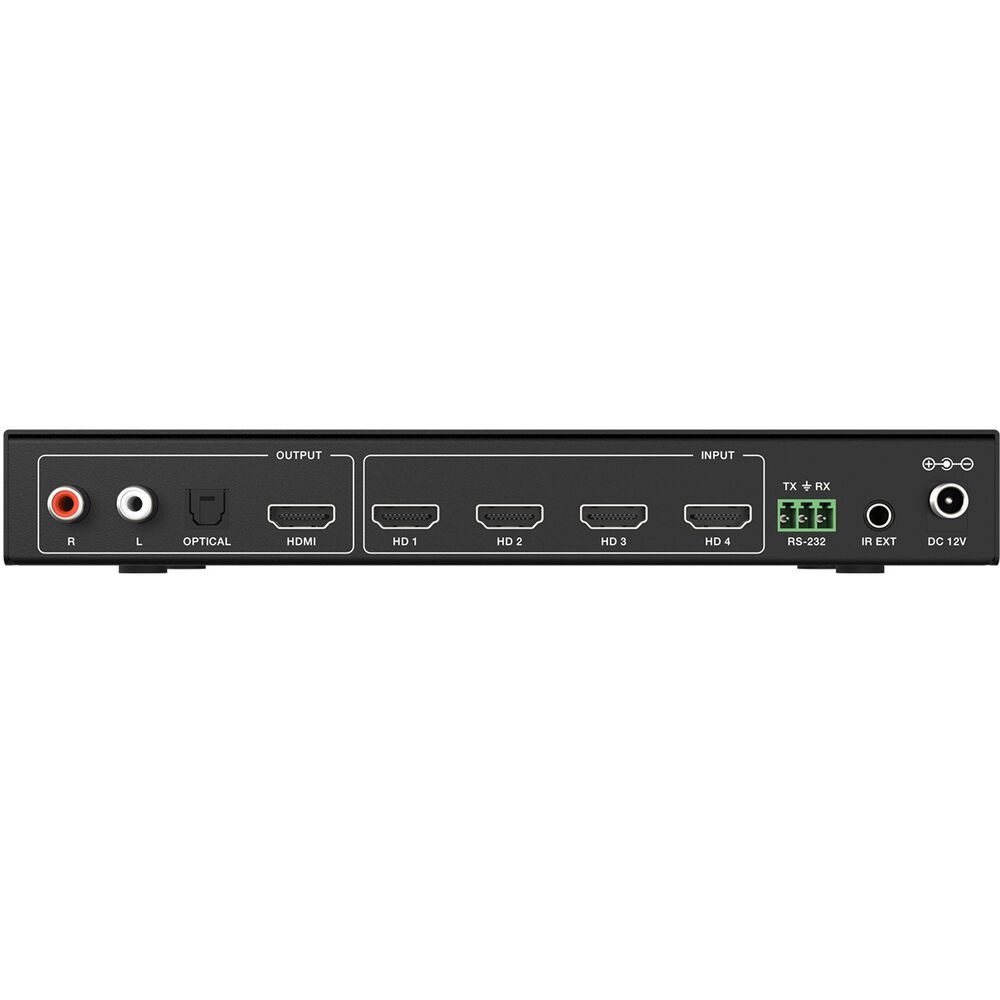

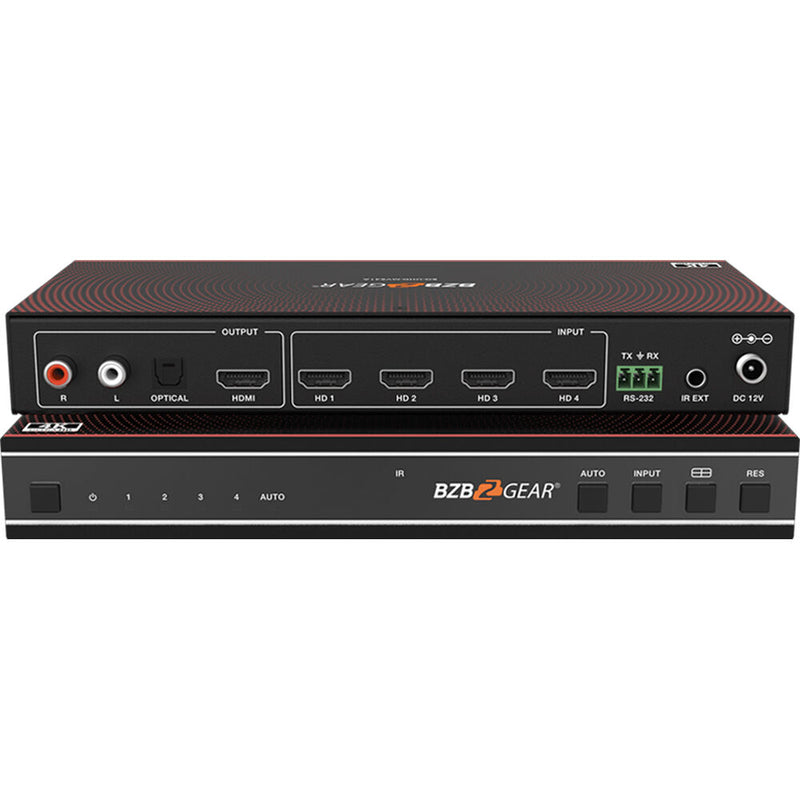

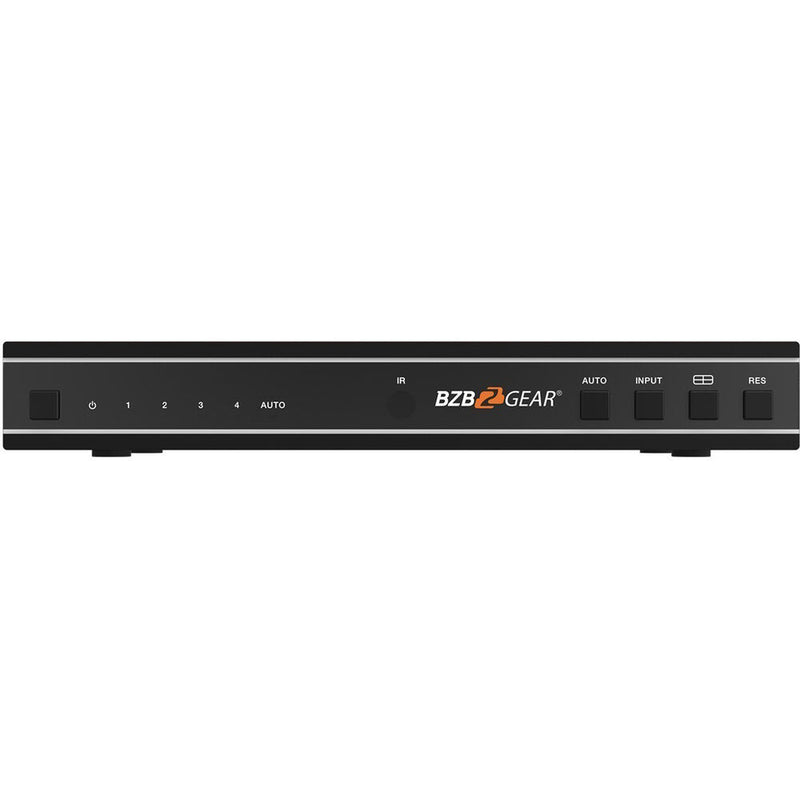

BZBGEAR UHD-MVS41A Overview
Display multiple video sources at up to 4K60 resolution with a video bandwidth of 18 Gb/s on a single display with this 4x1 4K60 Multiviewer with Seamless Switcher and Audio De-Embedder from BZBGear. The compact unit allows users to seamlessly switch between sources and combine up to four UHD 4K signals while managing each input separately with adjustable positioning on the target display. The video sources may also be displayed in Picture-in-Picture (PIP) or Picture-by-Picture (PBP) modes, with flexible layouts for presenting content as needed for your specific application.
There are four HDMI inputs and one HDMI output with audio de-embedding capabilities available for any of the input sources to various formats, including LPCM, AC3, DD+, DTS, DTS- HD. Audio volume is controllable when using the LPCM format. The unit offers control via front-panel buttons, RS-232, or the included IR remote. Furthermore, the RS-232 interface also provides EDID management.
- HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant
- Supports 18 Gb/s video bandwidth
- Input and output resoluttions support up to 4K60 4:4:4
- Supports LPCM, AC3 up to 7.1 audio channels
- Seamless switching
- Audio de-embedding via analog and optical fiber audio ports
- Supports volume control and independent audio selection
- Advanced EDID management
- Control via front-panel buttons, IR remote, and RS-232 commands
- Compact design for easy and flexible installation
In the Box
- BZBGEAR 4x1 4K60 Multiviewer with Seamless Switcher and Audio De-Embedder
- IR Remote
- 3-Pin Phoenix Connector
- 38KHz IR Wideband Receiver Cable (5')
- 2 x Mounting Ear
- 4 x Machine Screw
- 4 x Rubber Foot
- 12 VDC, 1A Locking Power Adapter
- Limited 3-Year Manufacturer Warranty
BZBGEAR UHD-MVS41A Specs
| Switching Type |
IR Remote, Pushbutton, Software
|
| Processing Resolution |
UHD 4K at 60
|
| Color Processing |
8-Bit 4:4:4 YCbCr
8-Bit 4:2:2 YCbCr 8-Bit 4:2:0 YCbCr |
| Video Inputs |
4 x HDMI (HDMI 2.0b) Female
|
| Input Video Format |
HDMI (8-Bit 4:4:4/4:2:2/4:2:0)
UHD 4K up to 60 fps |
| Embedded Audio Input |
HDMI: 8-Channel (per Input)
|
| Video Outputs |
1 x HDMI (HDMI 2.0b) Female
|
| Output Video Format |
HDMI (8-Bit 4:4:4/4:2:2/4:2:0)
UHD 4K up to 60 fps |
| Audio Outputs |
1 x 2RCA Stereo Analog Female
1 x TOSLINK 8-Channel S/PDIF Female |
| Output Audio Format |
Analog
S/PDIF LPCM (Linear Pulse-Code Modulation) |
| Embedded Audio Output |
HDMI: 8-Channel
|
| Other I/O |
1 x Block 3-Pin Control, RS-232 Input/Output
1 x 1/8" / 3.5 mm IR |
| HDCP Support |
Version 2.2
|
| DTS Compatibility |
DTS, DTS-HD High Resolution
|
| Dolby Compatibility |
Dolby Digital, Dolby Digital Plus
|
| Wi-Fi |
Yes
|
| Bluetooth |
Yes
|
| Power I/O |
1 x Barrel (100 to 240 VAC) Input
1 x Barrel (12 VDC 1 A) Output |
| Power Consumption |
10 W
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
20 to 90% (Non-Condensing)
|
| Certifications |
CE, FCC, UL
*as per Manufacturer |
| Rack Form Factor |
1 RU
|
| Dimensions |
8.7 x 3.9 x 1.2" / 22.1 x 9.9 x 3 cm
|
| Weight |
1.4 lb / 635 g
|
| Package Weight |
2.36 lb
|
| Box Dimensions (LxWxH) |
12.1 x 7.6 x 3.3"
|
