Description

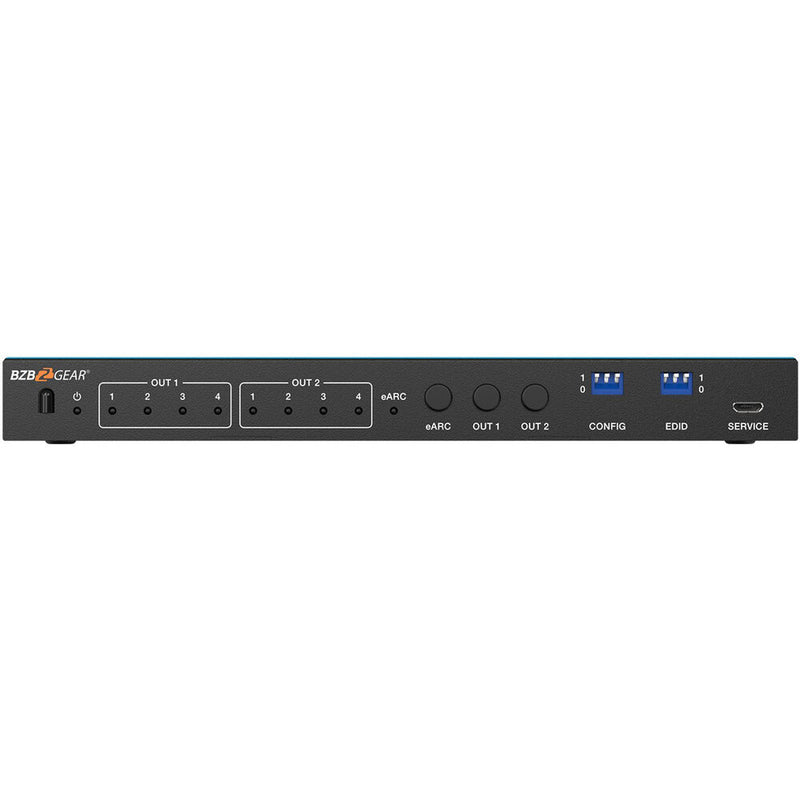

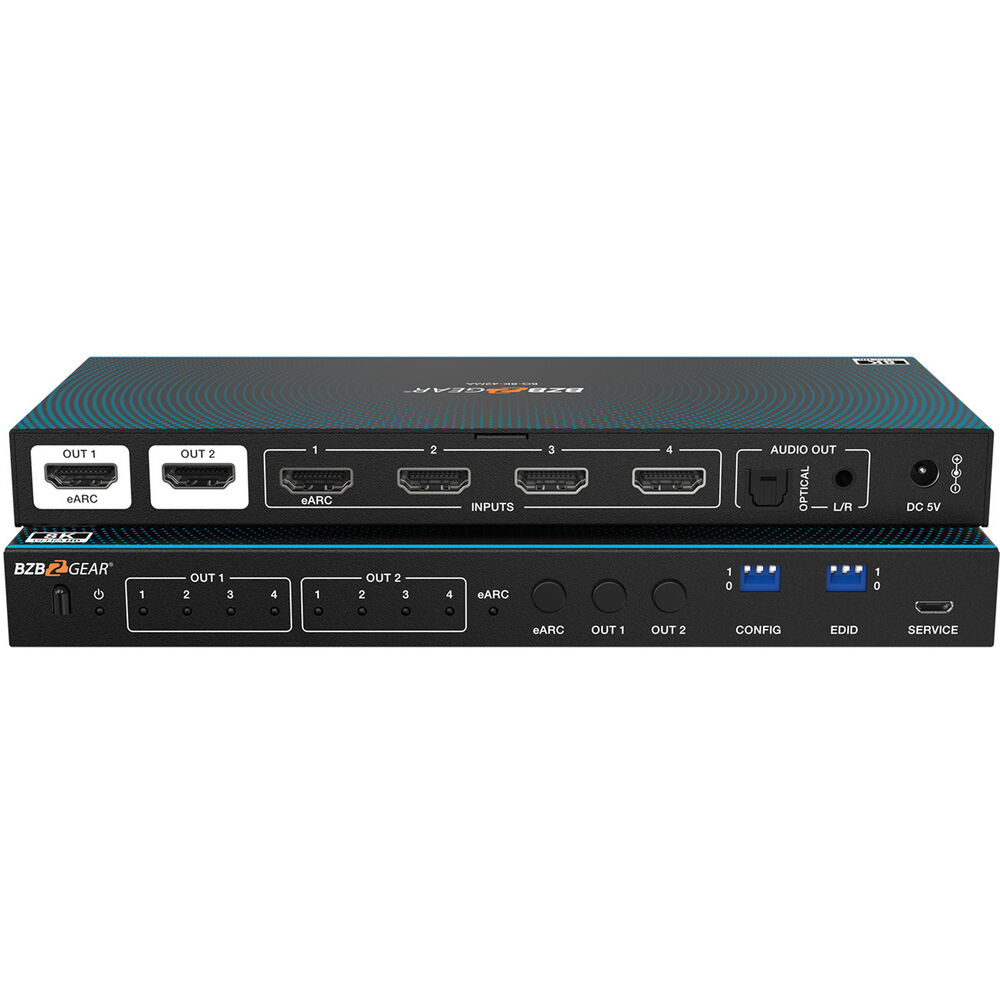

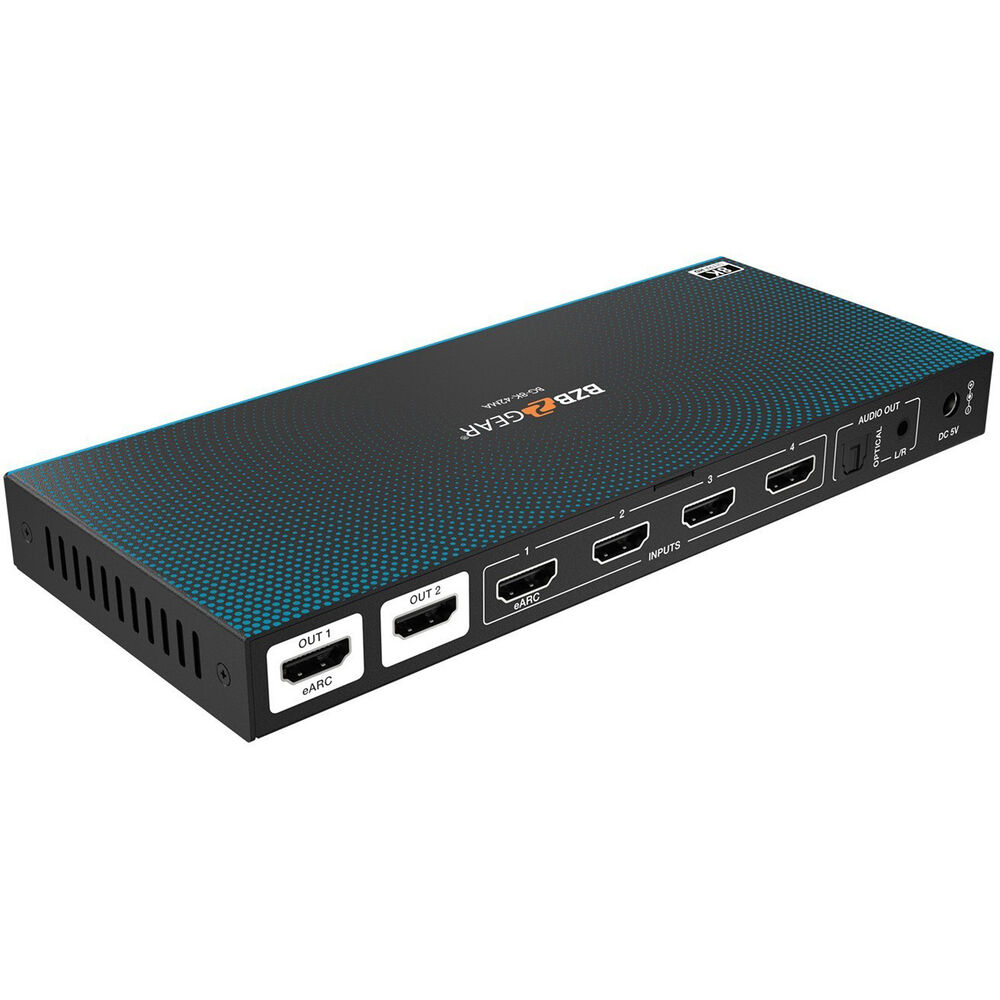

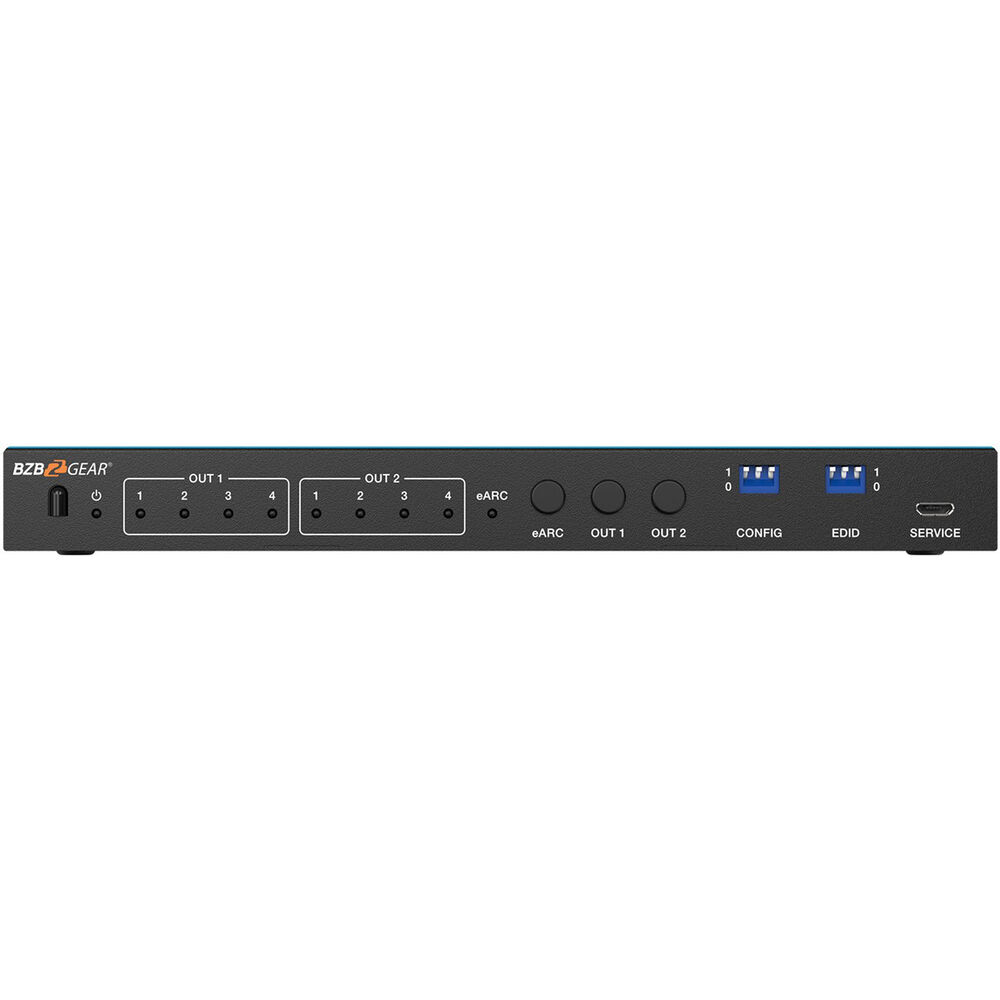

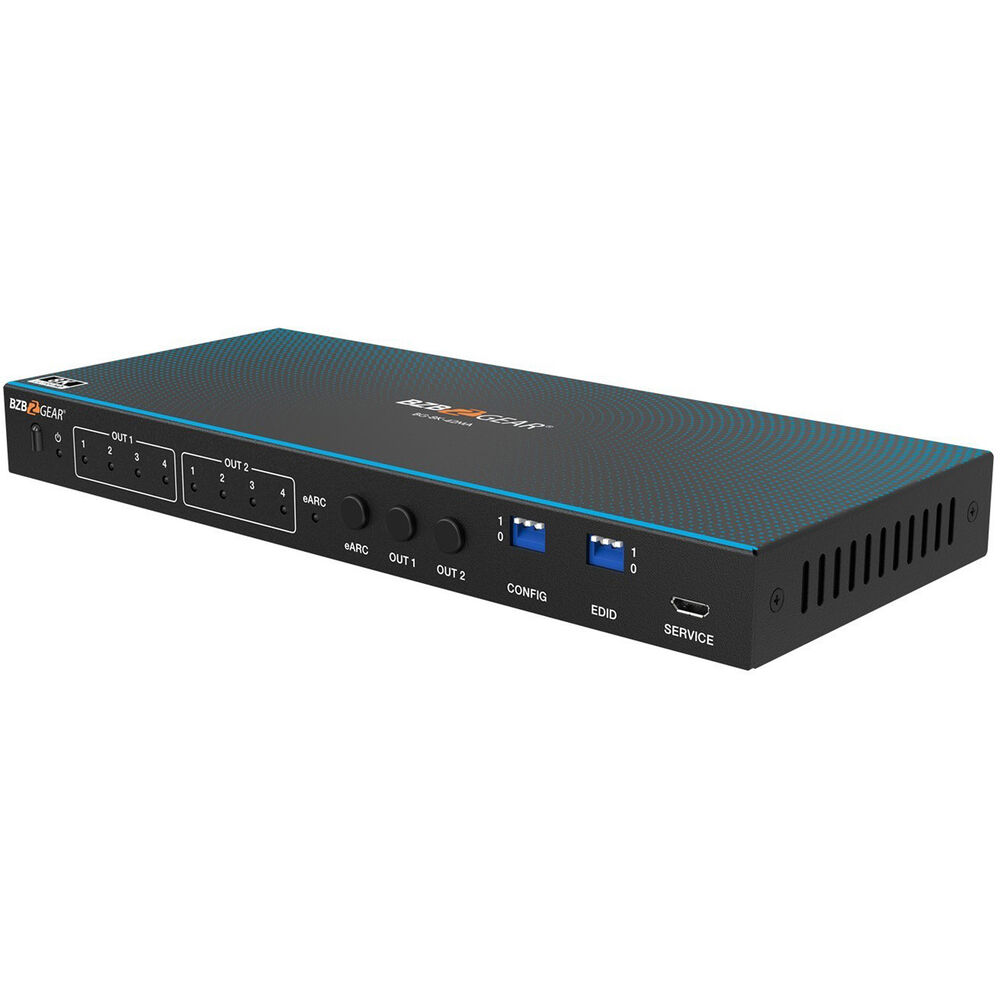

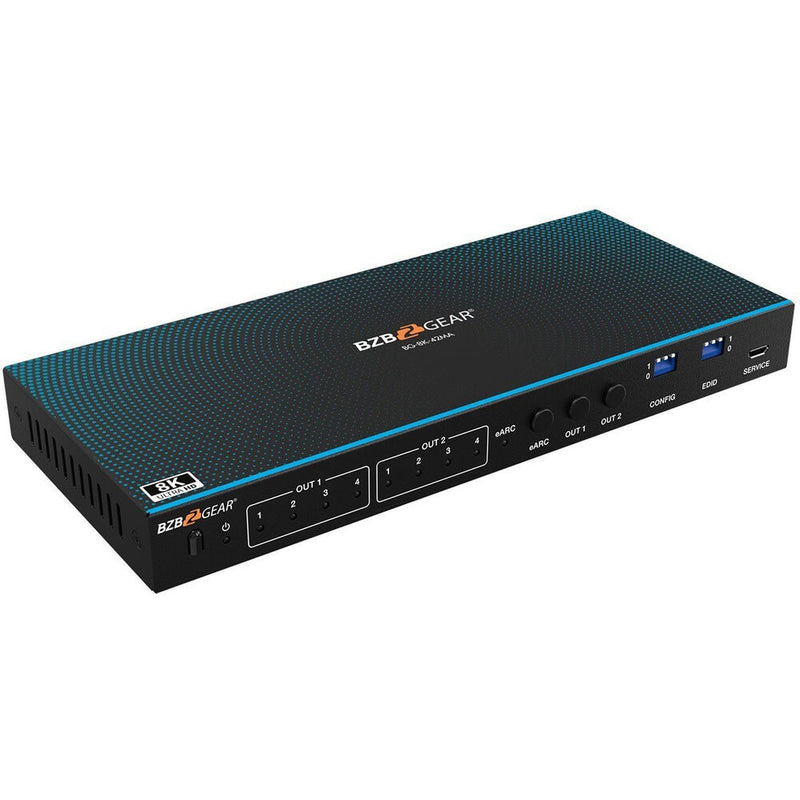

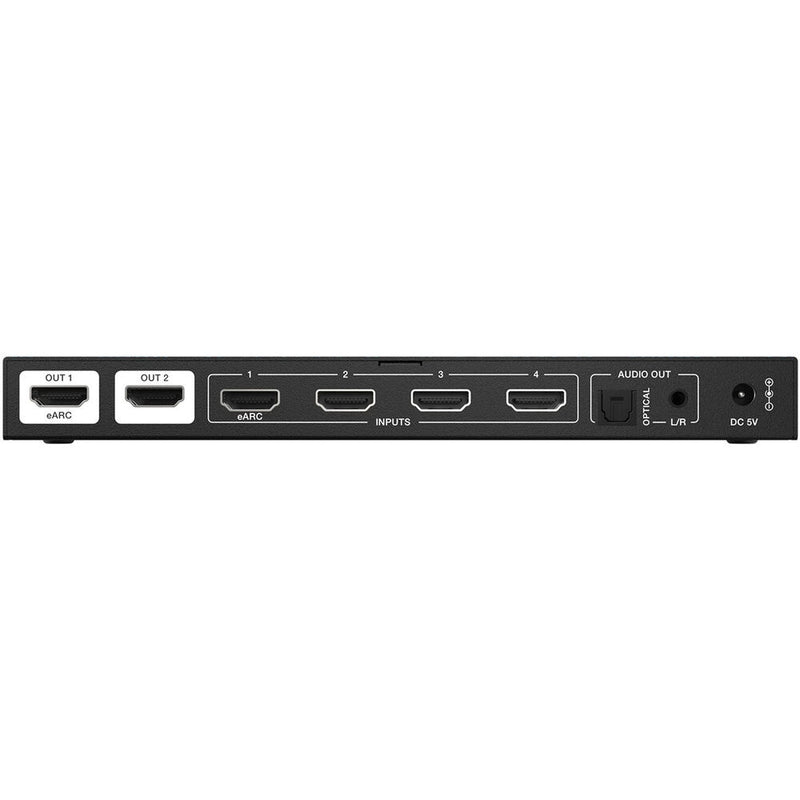

BZBGEAR BG-8K-42MA Overview
Share up to four HDMI devices with up to two displays and de-embed audio to analog and digital outputs using this 4x2 8K60 HDMI 2.1 Matrix Switcher with Audio De-Embedder from BZBGear. The sleek user-friendly device is easy enough to operate for recreational usage, but it also offers the advanced features one requires for professional applications. Boasting four HDMI inputs and two HDMI outputs, the switcher handles resolutions up to 8K60 and has 4:4:4 chroma subsampling and full support for various flavors of HDR.
A video bandwidth of 40 Gb/s ensures reliable delivery of exceptional picture and audio quality, making it an ideal solution for routing multiple home entertainment devices, but it is also great for gaming thanks to its support for 4K resolution at up to 120 Hz, which provides reliable imaging with reduced motion blur during fast-paced games. Automatic downscaling can take your video from 8K to 4K or even down to 2K, and a built-in EDID DIP switch allows you to quickly set your EDID management to ensure wide compatibility with a multitude of devices. The compact design facilitates easy installation and an included IR remote provides you with control for those times when the unit may be placed slightly out of reach.
- HDMI 2.1 and HDCP 2.3 compliant
- 40 Gb/s video bandwidth
- Supports video resolution up to 8K60 4:2:0 10-bit, 8K30 4:4:4 10-bit, and 4K120 4:4:4 10-bit
- VRR, FVA, ALLM supported
- Supports HDR, HDR10, HDR10+, Dolby Vision, HLG passthrough
- Supports HDMI audio formats: Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- Input 1 and Output 1 ports support ARC\eARC
- Audio de-embedding via analog and digital out ports
- Built-in equalizer, retiming, and driver
- Advanced EDID management
- Auto switching is supported
- Compact design for easy and flexible installation
In the Box
- BZBGEAR 4x2 8K60 HDMI 2.1 Matrix Switcher with Audio De-Embedder
- IR Remote
- 5 VDC, 2A Power Supply
-
Limited 3-Year Manufacturer Warranty
Registration Extension: 2-Year
BZBGEAR BG-8K-42MA Specs
| Switching Type |
IR Remote, Pushbutton
|
| Processing Resolution |
8K at 60
|
| Color Processing |
10-Bit 4:4:4 RGB
10-Bit 4:4:4 YCbCr 10-Bit 4:2:2 YCbCr 8-Bit 4:2:0 YCbCr 12-Bit |
| Video Inputs |
4x HDMI (2.1) Female
|
| Input Video Format |
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0)
8K at 30/60 fps UHD 4K at 24/60 fps 1080p |
| Input Audio Format |
LPCM (Linear Pulse-Code Modulation)
|
| Embedded Audio Input |
HDMI
|
| Video Outputs |
2x HDMI Female
|
| Output Video Format |
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC)
8K at 30/60 fps UHD 4K at 24/60 fps 1080p |
| Audio Outputs |
1x TOSLINK 8-Channel S/PDIF Female
1x 1/8" / 3.5 mm TRS Stereo Analog Female |
| Output Audio Format |
S/PDIF
Analog |
| Embedded Audio Output |
HDMI
|
| Other I/O |
1x Micro-USB Firmware Input
|
| HDCP Support |
Yes, Version 2.3
|
| HDR Compatibility |
HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma
|
| DTS Compatibility |
DTS, DTS 96/24, DTS-HD Express, DTS-HD High Resolution, DTS-HD Master Audio
|
| Dolby Compatibility |
Dolby Atmos, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Power I/O |
1x Barrel (5 VDC at 2 A) Input
|
| Power Consumption |
Device: 2.05 W
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
20 to 90% ()
|
| Dimensions |
7.9 x 3.3 x 0.8" / 200 x 85 x 21 mm
|
| Weight |
0.9 lb / 411 g
|
| Package Weight |
1.675 lb
|
| Box Dimensions (LxWxH) |
10.3 x 6.6 x 3.1"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 64773.1 |
| 3-5 | ₹ 64112.15 |
| 5-10 | ₹ 62790.25 |
| 10+ | ₹ 61468.35 |
Bulk discount will be automatically applied during checkout based on quantity.
