BZBGEAR H3GS Overview

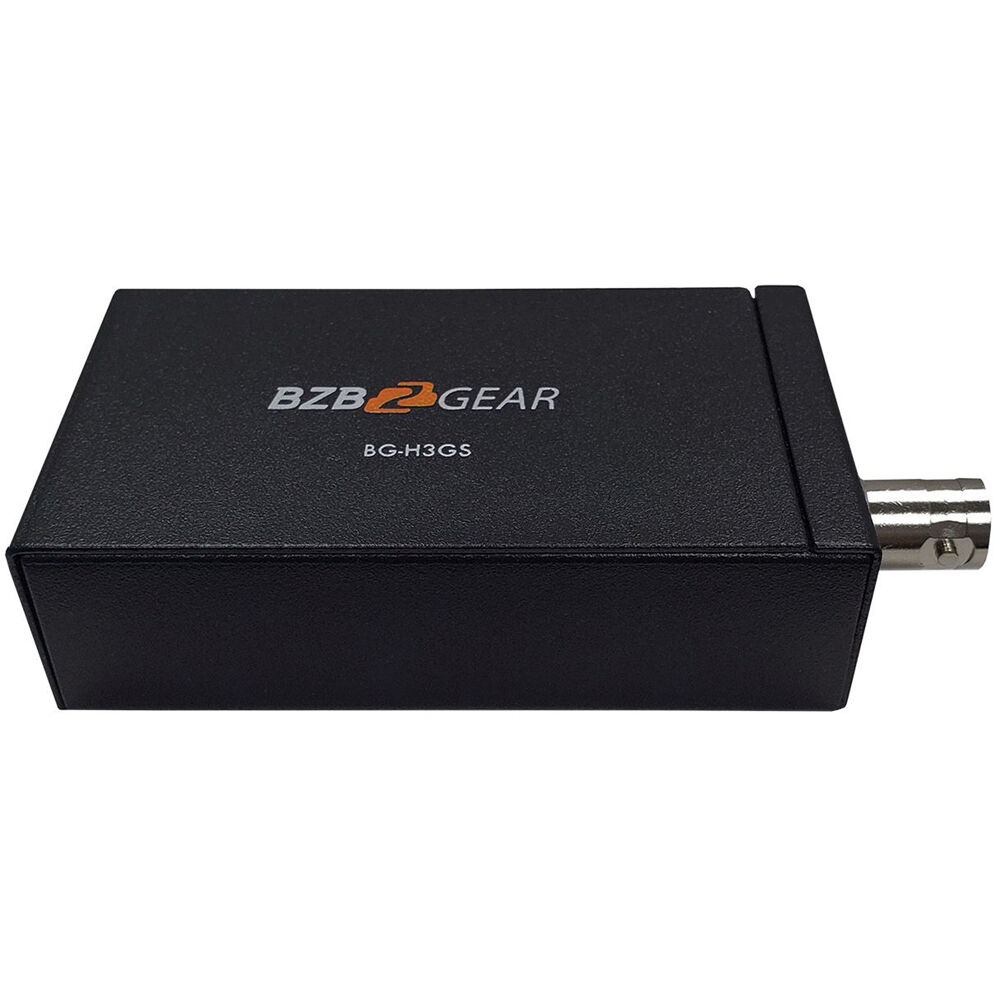

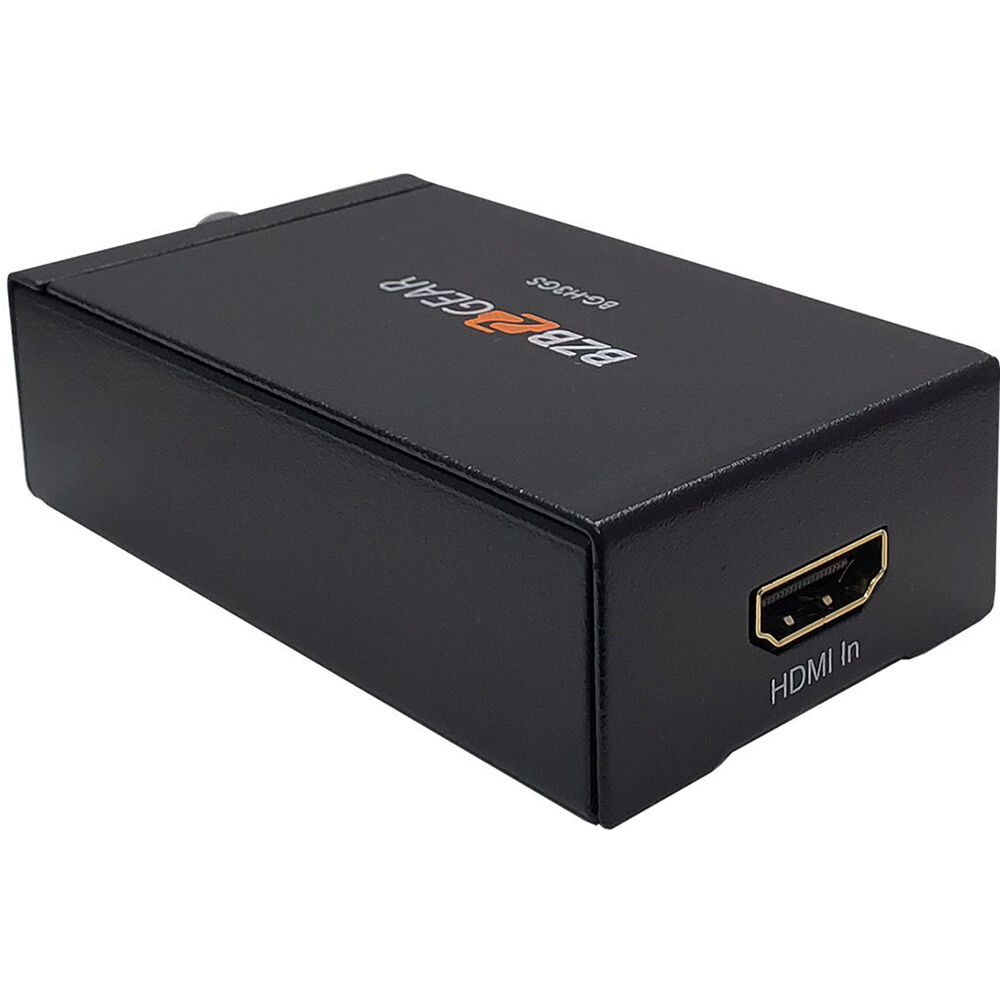

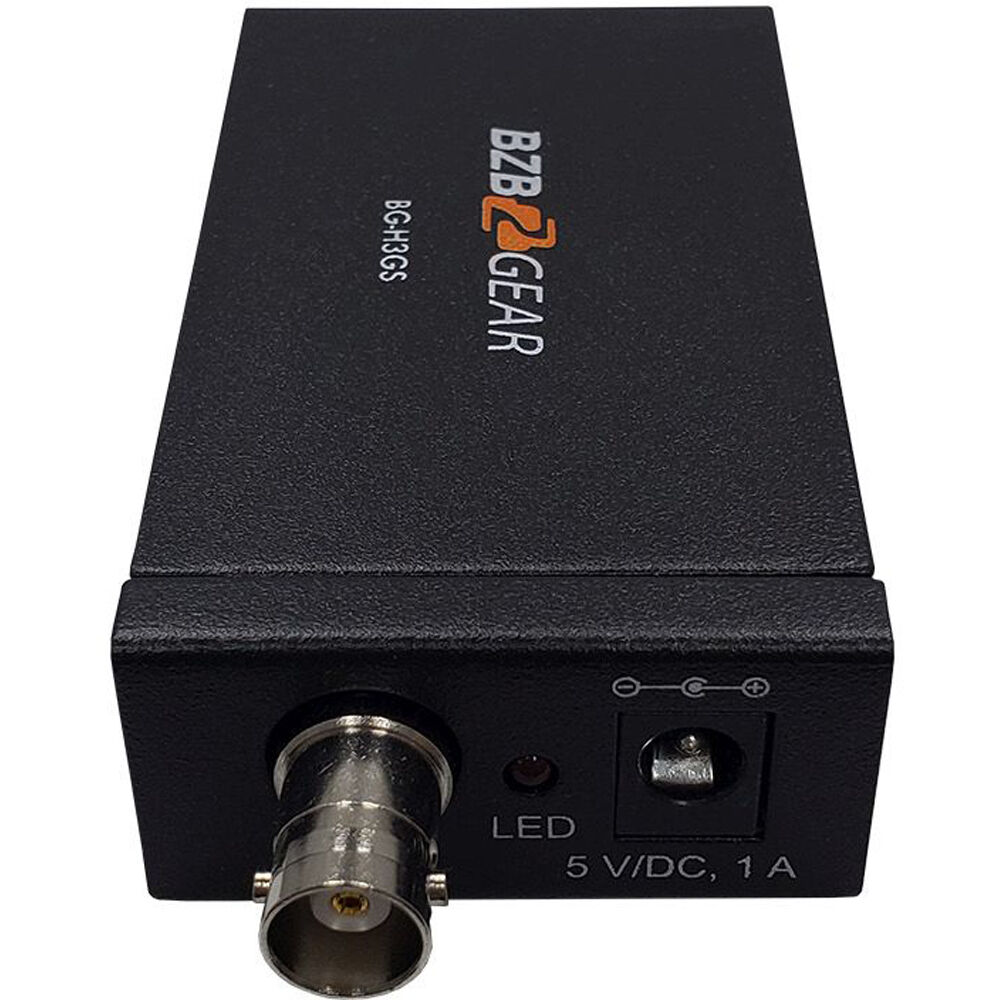

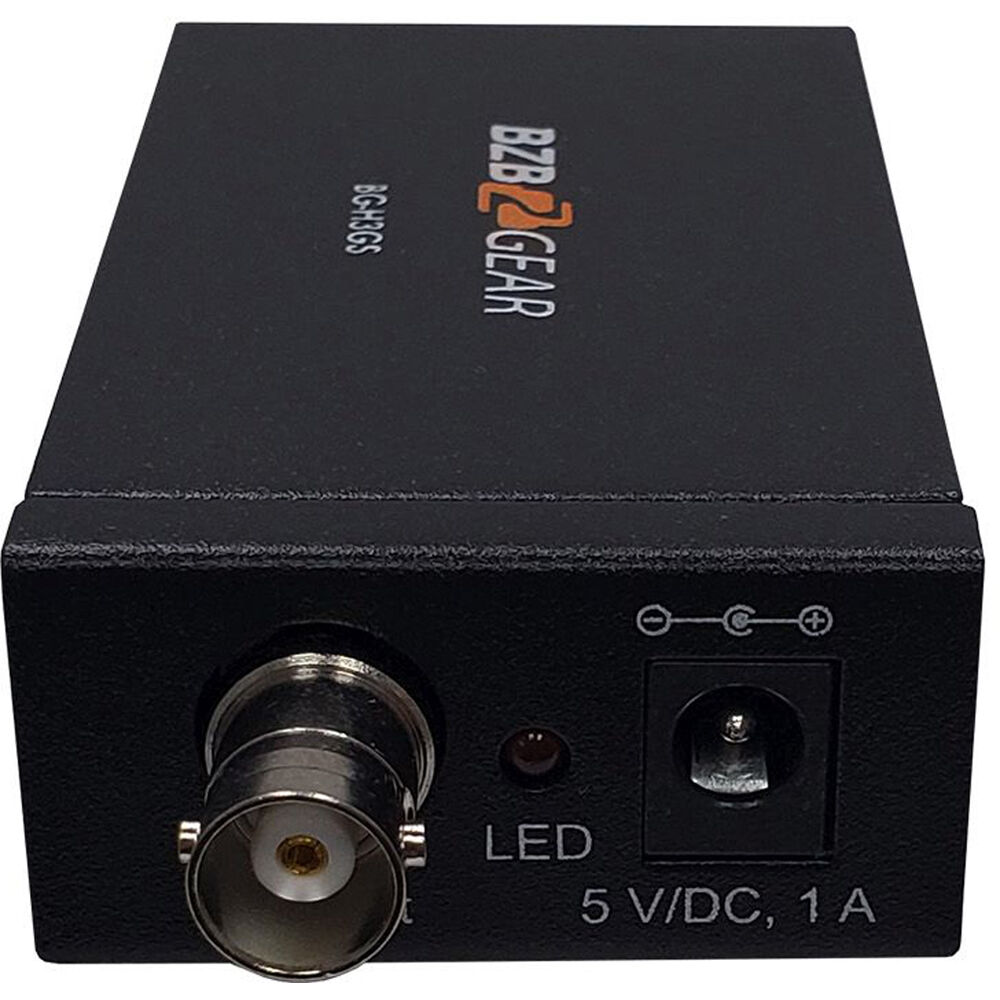

Compact and rugged, the HDMI to 3G-SDI Converter from BZBGear enables you to use SDI monitors and televisions for production monitoring when using an HDMI video source. This compact converter has one HDMI input and one SD/HD/3G-SDI output and it supports video resolutions up to 1080p60 10-bit 4:2:2. The converter supports SDI output data rates up to 2.97 Gb/s and can equalize and re-clock video across long distances when daisy-chaining with optional units.
Key Features
Operation at 2.970 Gb/s, 1.485 Gb/s, and 270 Mb/s
Supports SMPTE 425M, SMPTE 424M, SMPTE 259M-C, and SMPTE 292M
Extend 3G-SDI up to 328' and SD-SDI up to 984'
UPC: 850023208187
In the Box
- BZBGEAR HDMI to 3G-SDI Converter
- Power Adapter
- Limited 3-Year Manufacturer Warranty
Guides & Manuals
BZBGEAR H3GS Specs
Inputs / Outputs
| Video Inputs |

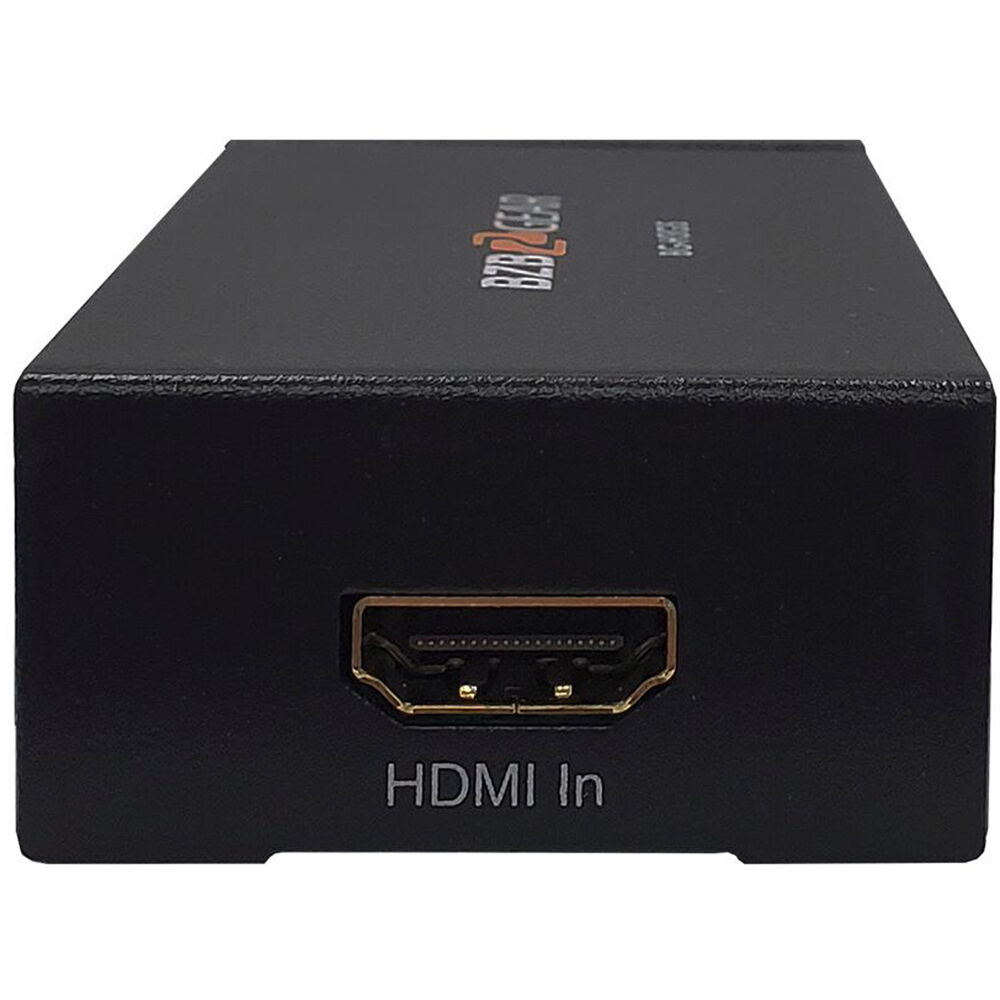

1 x HDMI Female
|
| Audio Inputs |
No
|
| Video Outputs |

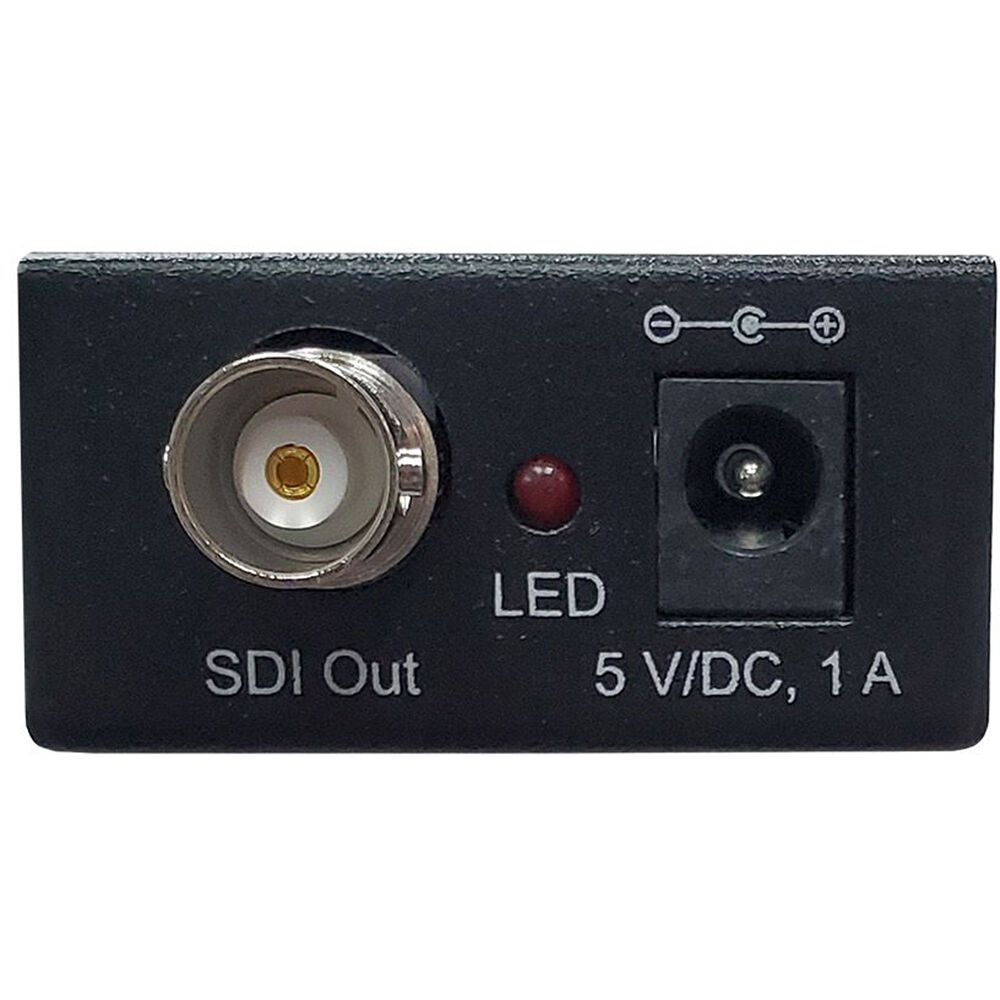

1 x BNC (3G-SDI) Female
|
| Audio Outputs |
No
|
| Expansion Slots |
No
|
Format Support
| Input Video Format |
HDMI
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 59.94 fps 576i / 625 lines 50 fps |
| Output Video Format |
SDI
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 59.94 fps 576i / 625 lines 50 fps |
| Embedded Audio |
SDI
|
Standards
| Video Standard Compliance |
SMPTE 259M-C/292M/424M/425M/425M-A/425M-B
|
| HDR Compatibility |
No
|
Power
| Power I/O |
1 x Barrel (5 to 12 VDC) Input
|
| Power Consumption |
5 W
|
Environmental
| Operating Temperature |
32 to 72°F / 0 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
20 to 90%
|
General
| Dimensions |
3.1 x 1.6 x 1" / 80 x 41 x 25 mm
|
| Weight |
5.3 oz / 150 g
|
Packaging Info
| Package Weight |
0.475 lb
|
| Box Dimensions (LxWxH) |
6.4 x 4 x 1.8"
|
