Description

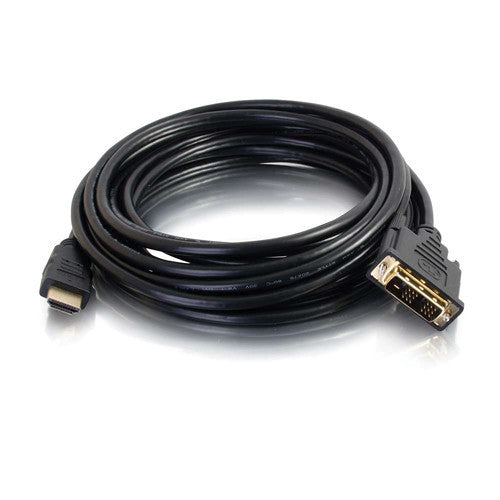

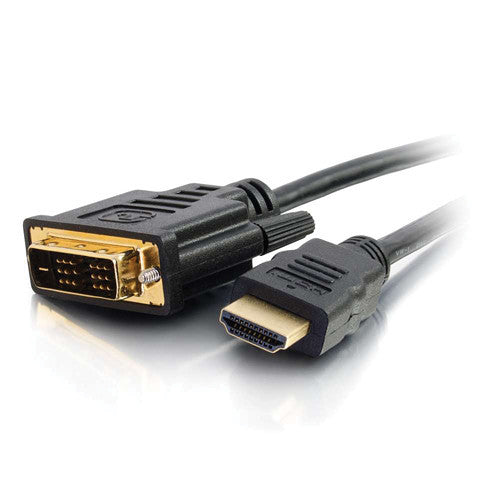

The black C2G HDMI Male to DVI-D Male Digital Video Cable is a 16.4' cable that connects an HDMI source device to a DVI-D display or a DVI-D source device to an HDMI display. This fully-functional, high-bandwidth cable is tested to perform at industry standards.
- Full 1080p resolution support
- High-bandwidth conductor (10.2 Gbps) for high-speed data transfer
- Fully shielded to provide immunity to EMI/RFI interference
UPC: 757120425182
In the Box
C2G HDMI Male to DVI-D Male Digital Video Cable (Black, 16.4')
- Limited Lifetime Warranty
| Electrical | |
|---|---|
| Resolution Supported | Up to 1080p |
| Bandwidth | 340 MHz |
| Nominal Velocity of Propagation | 10.2 Gbps |
| Nominal Attenuation | 8 dB (1-825 MHz) |
| DC Resistance | 300 V |
| Dielectric Strength | AC 500 V/minute |
| Insulation Resistance | 100 ? |
| Physical | |
|---|---|
| Voltage Rating | 30 V |
| Maximum Bend Radius | 3.25" (82.5 mm) |
| Operating Temperature Range | 32-122�F (0-50�C) |
| Storage Temperature Range | -13-185�F (-25-85�C) |
| Approvals | RoHS |
| Conductor | Conductor 1 (4 pair): Conductor Type: 30 AWG (7/0.10), tinned copper Insulation: Foamed PE SKIN, red/white, brown/white, blue/white, green/white, black/white O.D.: 0.03" ( 0.78 mm) Drain Wire: 30 AWG (7/0.10), tinned copper Shield: aluminum foil, 100% coverage Conductor 2 (1 pair): Conductor Type: 30 AWG (7/0.10), Tinned Copper Insulation - HDPE, yellow, red, green, purple O.D.: 0.02" (0.55 mm) Conductor 3 (3 conductors): Conductor Type: 30 AWG (7/0.10), tinned copper Insulation: HDPE, Yellow, Red, Green, Purple O.D.: 0.02" (0.55 mm) |
| Cable | Drain Wire: 30 AWG (07/0.10), tinned copper Foil Shield: aluminum foil, 100% coverage Braided Shield: 16/4/0.12, Al/Mg Jacket: PVC, O.D.: 0.24 � 0.008" (6.0 � 0.2 mm) |

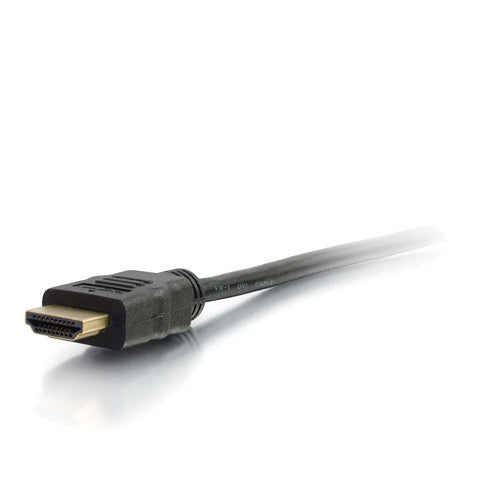

| Connector 1 | Connector Type: HDMI type A male Pin Construction: phosphor copper Plating: 1 �m Gold Dimensions: 0.39 x 0.79 x 1.46" (10.0 x 20.1 x 37.1 mm) |

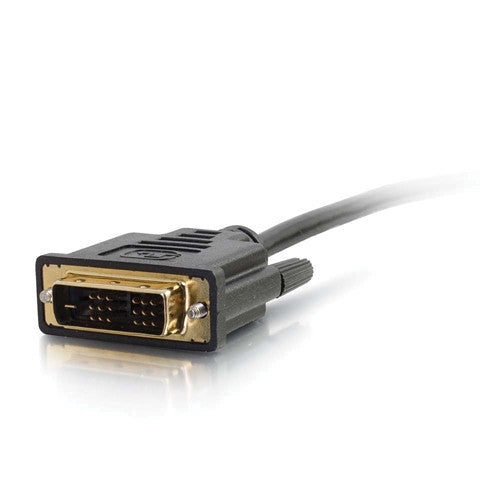

| Connector 2 | Connector Type: DVI-D single link male Pin Construction: phosphor copper Plating: 3 �m gold Dimensions: 0.62 x 1.55 x 1.84" (16.0 x 39.4 x 46.7 mm) |
| Length | 16.4 ft. |
| Weight | 0.45 lb (0.2 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 0.45 lb |
| Box Dimensions (LxWxH) | 7.1 x 5.3 x 1.1" |
