Description

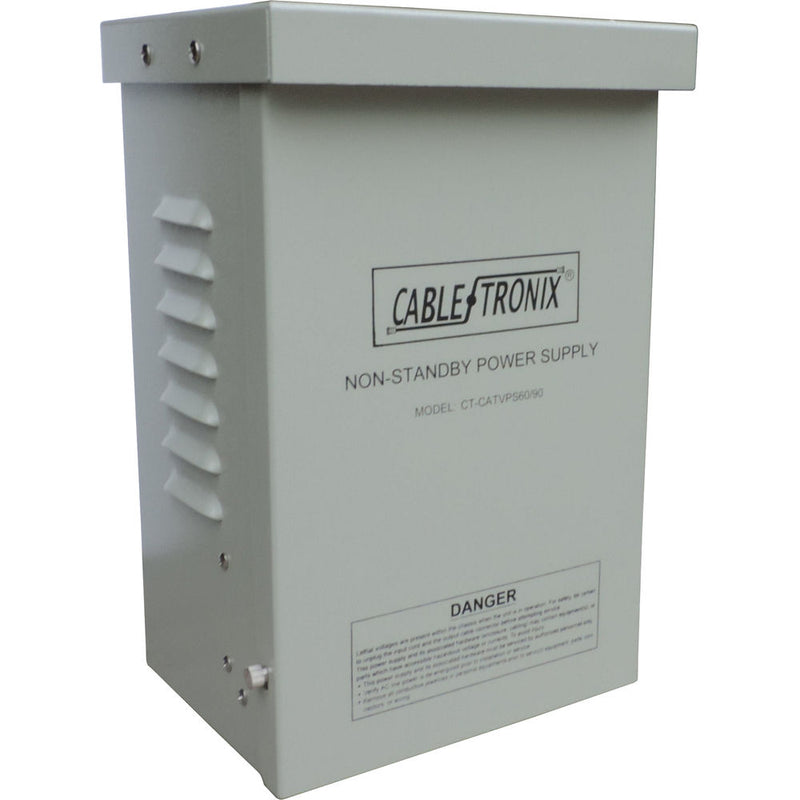

The CableTronix 60/90 VAC CATV Power Supply is designed to provide conditioned power to remote active devices over a hardline CATV cable distribution plant. It is designed to work with either 120 or 220 VAC input voltage with 60 or 90 VAC selectable output. The power supply's enclosure is built of weather-resistant and powder-coated aluminum for use in outdoor environments. The included installation bracket allows the unit to be easily mounted on a flat vertical surface or on a wooden or concrete pole.
- Constant voltage ferroresonant transformer
- Fully regulated AC power output
- Input and output surge protection
- Current limited output and short-circuit protection
- Automatic restart upon removal of short
- Field selectable output voltages
- Powder-coated enclosure for outdoor applications
- Supports pole and wall mount installations
- 5/8" female output connection
- LED indicator
| Input | |
|---|---|
| Input Voltage | 120 or 220 VAC |
| Input Frequency | 60 Hz |
| Fuse Protection | 15 A |
| Output Voltage | 60 or 90 VAC |
| Output Current | 15 A at 60 VAC 10 A at 90 VAC |
| Output Power | 90 VA |
| Voltage Range | ±15% |
| Power Factor | >0.9 at full load |
| Voltage Regulation | ±5% |
| Waveform | Quasi-square wave |
| Protection | Current limited |
| Short Circuit Output Current | 150% of maximum rating |
| Efficiency | ?90% |
| Input Connection | Terminal block (3-pin) |
| Output Connections | 5/8" female |
| Material | Aluminum |
| Finish | Powder coated |
| Operating Temperature | -40 to 131°F (-40 to 55°C) |
| Operating Humidity | 0 to 95% non-condensing |
| Dimensions | 13.2 x 8.5 x 7.5" (335.28 x 215.9 x 190.5 mm) |
| Weight | 39.7 lb (18 kg) |
In the Box
CableTronix 60/90 VAC CATV Power Supply
- Power Supply
- Mounting Bracket
- Limited 1-Year Warranty
