Description
CableTronix CTA-30 Overview

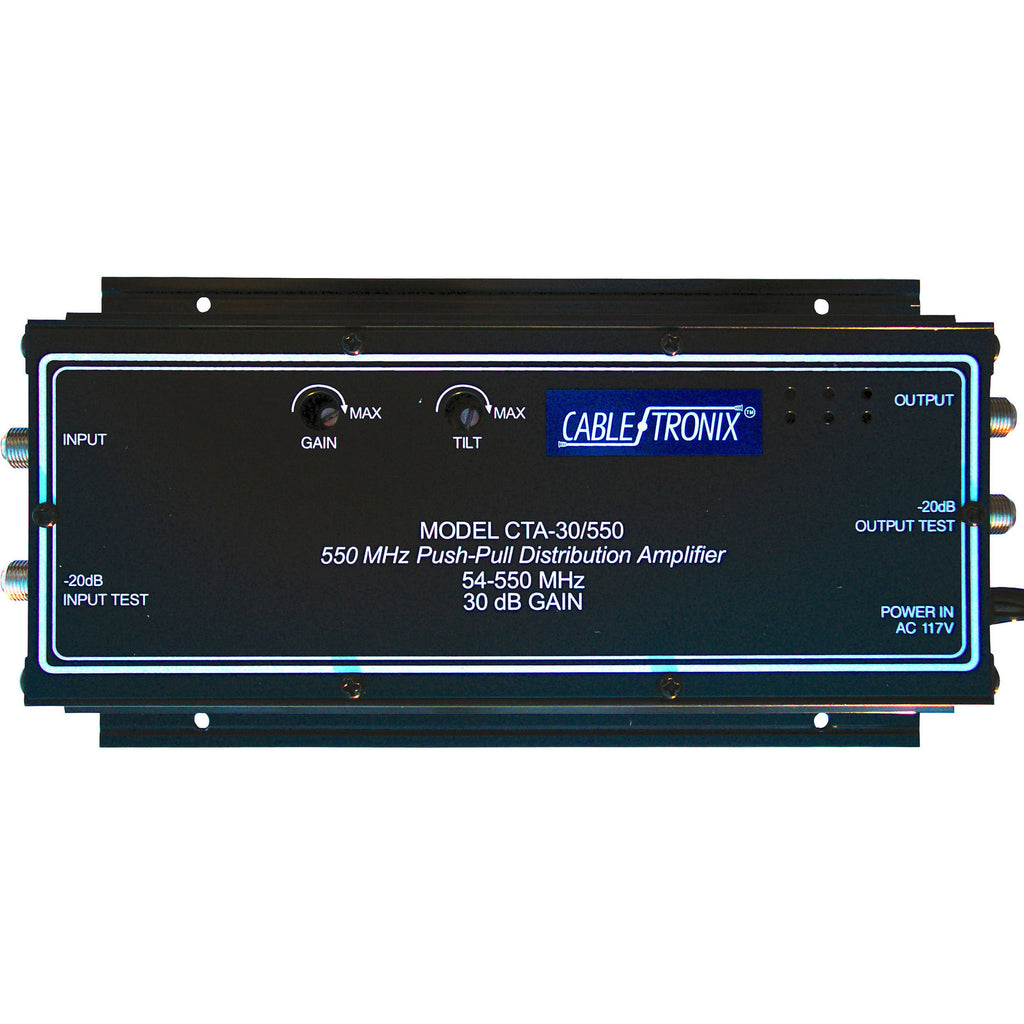

The CableTronix CTA-30/550 Distribution Amplifier is a wall mountable push-pull amplifier producing signals with low distortion and harmonic content. It supports 82-channel operation from 54 to 550 MHz. The amplifier offers adjustable slope and gain controls.
Input and output test ports
Easily accessible controls
Shielded RFI enclosure
UPC: 810842024962
In the Box
- CableTronix CTA-30/550 Distribution Amplifier (Wall Mount)
- Limited 1-Year Manufacturer Warranty
CableTronix CTA-30 Specs
| Bandwidth | 54 to 550 MHz |
| Gain | 30 dB |
| Input Adjust Range | Gain: 0 to 8 dB variable Slope: 0 to 8 dB variable |
| Flatness | ±0.5 dB per channel |
| Noise Figure | 5 dB |
| Maximum Level (Input) | 7 Channels: 36 dBmV 12 Channels: 33 dBmV 36 Channels: 24 dBmV 54 Channels: 16 dBmV 77 Channels: 13 dBmV |
| Maximum Level (Output) | 7 Channels: 65 dBmV 12 Channels: 57 dBmV 36 Channels: 50 dBmV 54 Channels: 46 dBmV 77 Channels: 44 dBmV |
| Cross Modulation | -57 dB |
| Beat | Second Order Beats: -70 dB Composite Triple Beat: -61 dB |
| Return Loss | In: 16 dB Out: 16 dB |
| Test Port | -20 dB |
| Power Requirements | 115 VAC, 60 Hz, 4 W |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Connectors | All "F" type |
| Dimensions | 8 x 4.5 x 2.75" (203.2 x 114.3 x 69.85 mm) |
| Weight | 2.3 lb (1 kg) |
Packaging Info
| Package Weight | 2.6 lb |
| Box Dimensions (LxWxH) | 10.3 x 5.9 x 2.3" |
