Description
Cambium EX2052R-P Overview
- 1Description
- 2Flexible Management
- 3Performance
- 4Layer 2 & Layer 3 Switch
- 5Easy Installation & Management
- 6Cooling

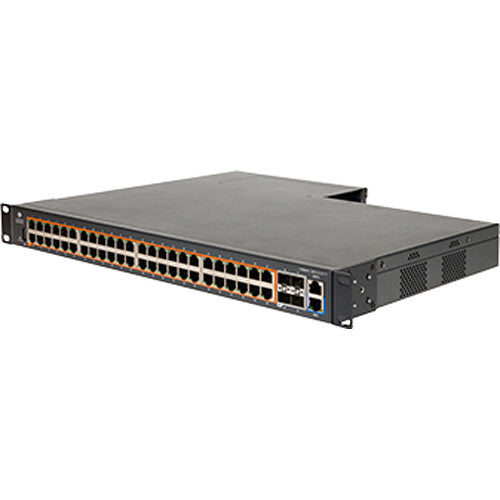

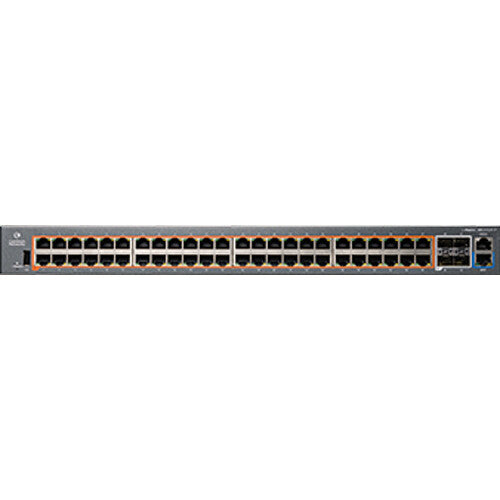

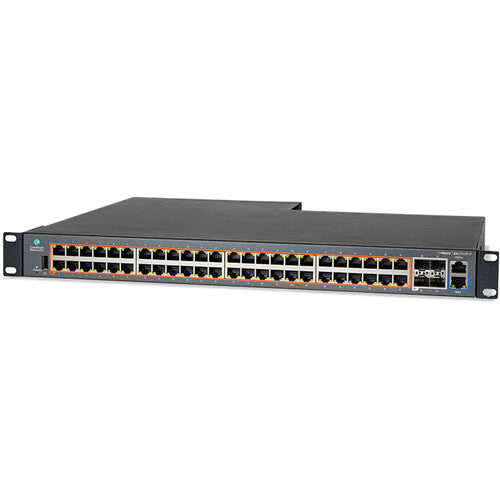

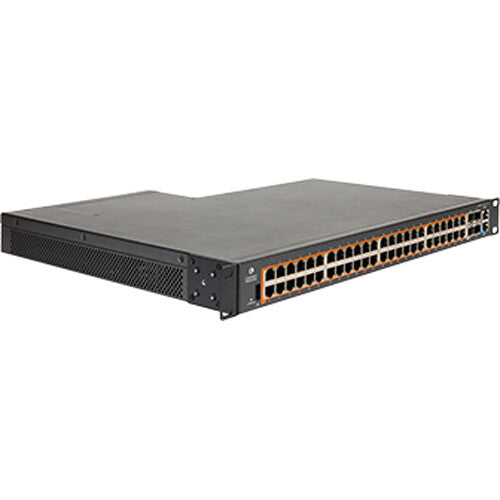

Integrating the cnMatrix EX2052R-P 48-Port PoE+ Compliant Gigabit Managed Switch from Cambium into your network allows you to quickly expand your business's network capacity. Its 48 Gigabit speed Ethernet ports each support up to 30W of power to operate access points, IP security cameras, VoIP phones, and other powered devices. Install a separately purchased modular power supply of your choice to customize the switch's capabilities to fit your needs. Four SFP+ slots are also available for up to 10 Gb/s fiber uplink connections.
This network switch may be installed into a 1 RU rackmount space with the included kit.
Flexible Management
This switch supports cloud-based and on premise management through the cnMaestro or XMS platforms.
Performance
With a 176 Gb/s switching capacity and 120 Mpps forwarding rate, the cnMatrix EX2052R-P provides fast and smooth data transfers.
Layer 2 & Layer 3 Switch
Comprehensive Layer 2 and Layer 3 support provides a wide range of features and enhanced security.
Easy Installation & Management
Zero-touch deployment simplifies installation. Policy Based Automation eliminates manual configuration during adds, moves, and changes of network devices.
Cooling
Two cooling fans help to maintain optimal performance while producing minimal noise.
In the Box
- Cambium cnMatrix EX2052R-P 48-Port PoE+ Compliant Gigabit Managed Network Switch
- Rackmount Kit
- Limited Lifetime Warranty
Table of Contents
- Description
- Flexible Management
- Performance
- Layer 2 & Layer 3 Switch
- Easy Installation & Management
- Cooling
Cambium EX2052R-P Specs
Key Specs
| Wi-Fi |
No
|
| Inputs/Outputs |
48 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
4 x 10Gb SFP+ (Uplink) 1 x RS-232 (Console) 1 x USB-A 1 x Ethernet (RJ45) (Console) |
Interfaces
| Inputs/Outputs |
48 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
4 x 10Gb SFP+ (Uplink) 1 x RS-232 (Console) 1 x USB-A 1 x Ethernet (RJ45) (Console) |
Protocols
| Layer Services Supported |
Layer 2 Support, Layer 3 Support
|
| Supported Protocols |
DHCP Server
IPv4 IPv6 Link Aggregation MAC Filtering RADIUS |
| Jumbo Frames Support |
9000 Bytes
|
| MAC Address Table Size |
16K
|
| Multicast Groups |
256
|
| VLAN Groups |
4000
|
Security
| Security Features |
DHCP Snooping
DoS Attack Prevention RADIUS Authentication Storm Control |
| Static Routes |
64
|
Standards
| RFC |
RFC 1858
RFC 2474 RFC 2475 RFC 2597 |
| Supported IEEE Standards |
802.1p, 802.1x, 802.3af, 802.3at
|
Performance
| Forwarding Rate |
120 Mpps
|
| Switching Bandwidth |
176 Gb/s
|
| Priority Queues |
8
|
Computer
| Flash Memory |
128 MB
|
| CPU |
Single-Core: Up to 800 MHz
|
| Memory |
512 MB
|
Electrical
| Power Draw |
46.98 W (Max)
|
| AC Input Power |
No
|
| PoE per Port |
30 W
|
Environmental
| Operating Temperature |
32 to 82°F / 0 to 50°C
|
| Operating Humidity |
95%
|
| Storage Temperature |
-40 to 158°F / -40 to 70°C
|
General
| Certifications |
No
|
| Cooling System |
Fan
|
| Mean Time Between Failures (MTBF) |
202,977 Hours
|
| Indicator Lights |
Link/Activity, PoE
|
| Rack Form Factor |
1 RU
|
| Dimensions |
17.3 x 13.8 x 1.7" / 44 x 35 x 4.4 cm
|
| Weight |
11.5 lb / 5.2 kg
|
Packaging Info
| Package Weight |
11.765 lb
|
| Box Dimensions (LxWxH) |
21.3 x 19.1 x 4.9"
|
