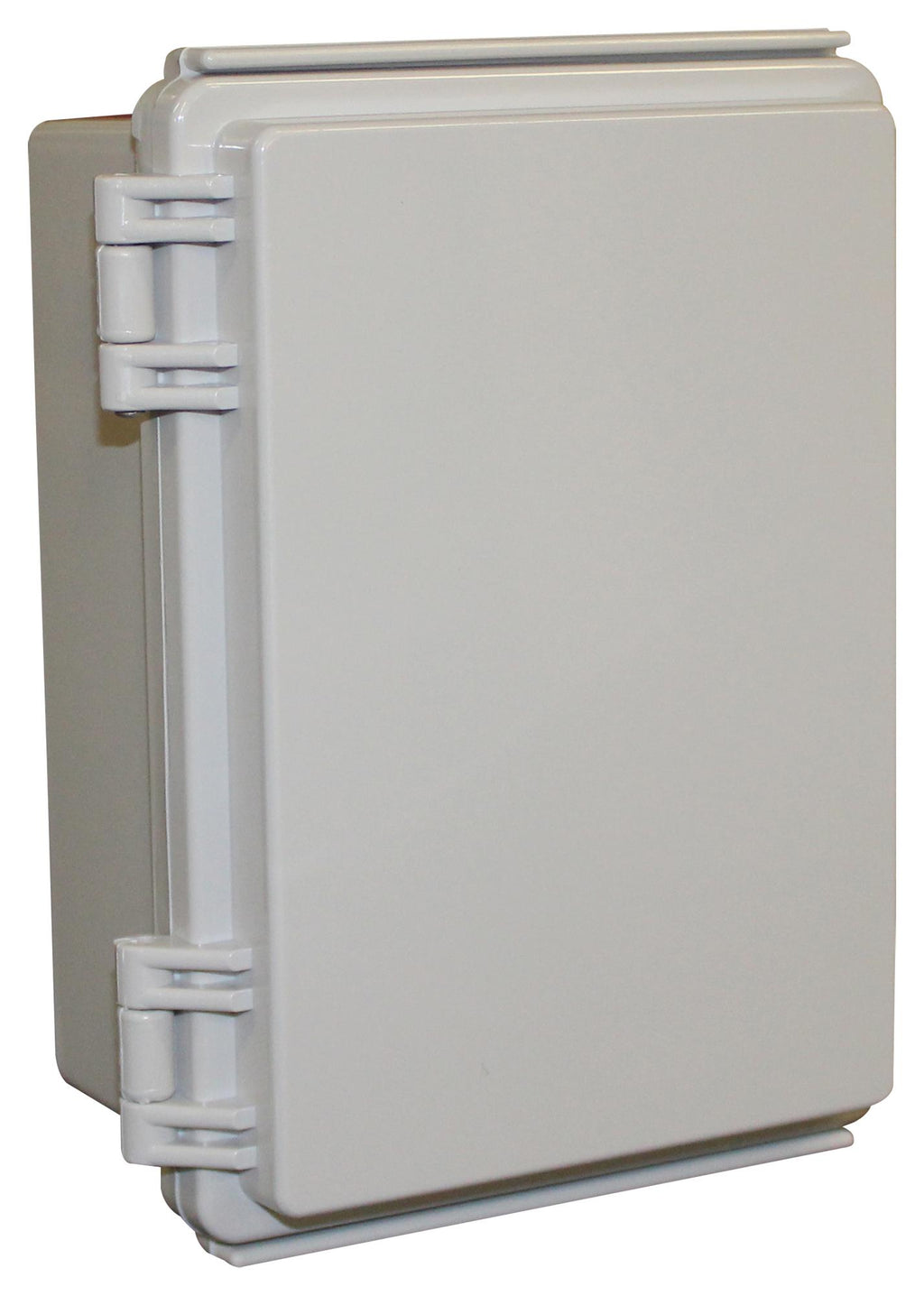

When it comes to housing your electronics, the X Series range never compromises on quality or protection. X8 Series feature hinged lids where repeated access to internal components is required. The padlock tab offers increased security with optional keyed latches that lock the enclosure shut. X8 types are ideal for control and measurement equipment as well as distribution boards. A dual door option is available for control panel applications.
Product details
| Enclosure Type |
Multipurpose |
| Enclosure Material |
Polycarbonate |
| External Height - Metric |
85mm |
| External Width - Metric |
135mm |
| External Depth - Metric |
185mm |
| IP Rating |
IP66, IP67 |
| Body Colour |
Grey |
| NEMA Rating |
- |
| External Height - Imperial |
3.35" |
| External Width - Imperial |
5.31" |
| External Depth - Imperial |
7.28" |
| Product Range |
X8 Series |
Other details
| Brand |
CAMDENBOSS |
| Part Number |
CHDX8-223 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
