Description

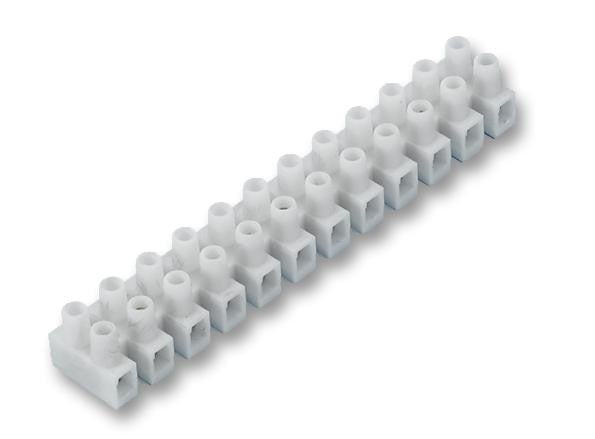

The CTSN433/12/F is a 10mm pitch, 12-way pluggable Terminal Block with moulded from natural PA6 (standard, CTSN400), cream PA66 (CTSN500) and grey PA66 glass fibre (CTSN600). M3 terminal screws, UL94-V2 self extinguishing as standard and V0 types pass 960�C glow wire test. Screws are 6� Zinc, colour passivated and tropicalised, and only come along one side of the connector.
- Without wire protection
- Easily cut to size
- Can also be supplied pre-cut
- Can be printed on request
- Closed inserts (middle barrier) option
- Captive terminal screws
Applications
Industrial
Product details
| No. of Rows | 1 Row |
| Wire Size AWG Max | 12AWG |
| Rated Current | 41A |
| No. of Positions | 12Ways |
| Product Range | CTSN433 Series |
| Pitch Spacing | 9.95mm |
| Wire Size AWG Min | - |
| Rated Voltage | 450V |
Other details
| Brand | CAMDENBOSS |
| Part Number | CTSN433/12/F |
| Quantity | Each |
| Technical Data Sheet EN |  |
