Camplex SMXS9-ST-ST-001 Overview

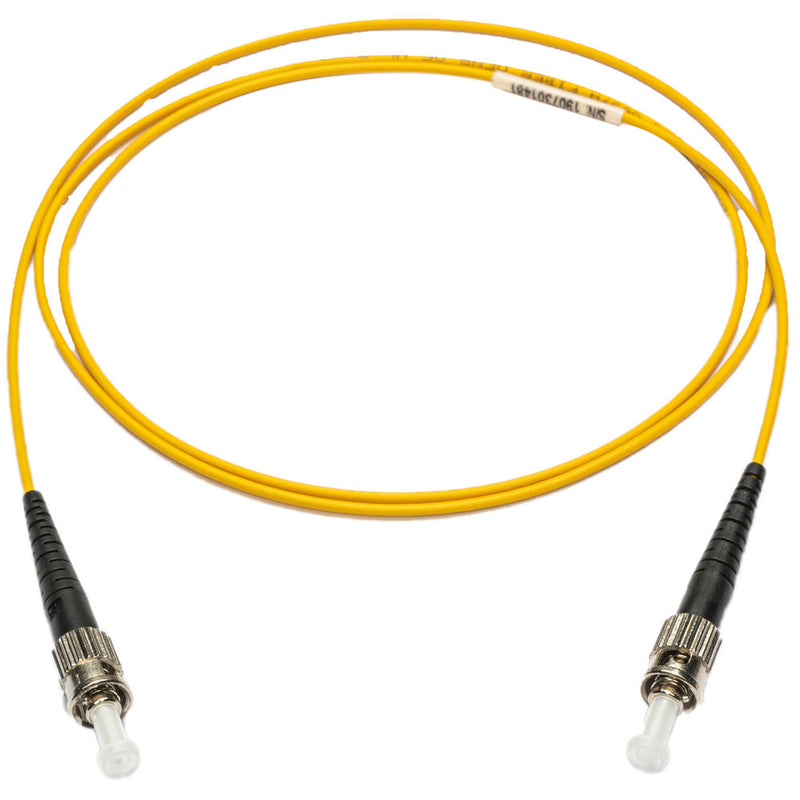

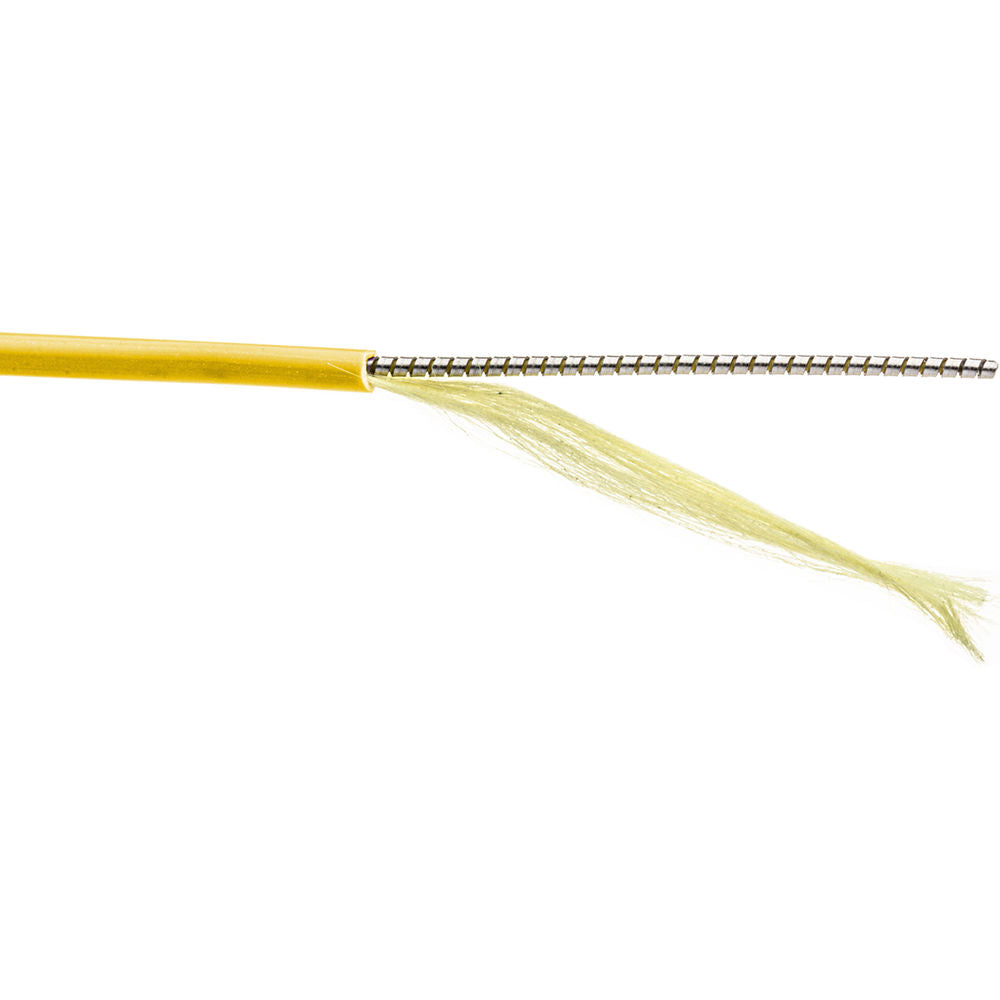

Outfit your network backbone with the 3.3' Armored Singlemode ST to Singlemode ST Simplex Fiber Optic Patch Cable from Camplex for reliable high-speed connections with compatible devices. Designed for intrabuilding applications, this durable yellow simplex cable features a 9µm core that's wrapped in a stainless steel tube and a riser-rated PVC jacket that provides flame-retardant protection with crush, moisture, and rodent resistance without sacrificing flexibility. There are singlemode ST connectors on both ends of the cable for easy installation. Additionally, the ceramic ferrules help to provide precise alignment of the fiber cable along with enhanced reliability.
Camplex SMXS9-ST-ST-001 Specs
General
| Connector 1 |
ST |
| Connector 2 |
ST |
| Cable Length |
3.3' / 1 m |
| Fiber Type |
Single Mode |
| Core Size |
9 µm |
| Return Loss |
-65 to -55 dB |
| Attenuation |
< 35 dB/km @ 1310 nm
< 0.21 dB/km @ 1550 nm |
| Bend Radius |
2.4" / 60 mm |
Physical and Environmental
| Jacket Type |
Polyvinyl Chloride (PVC) |
| Operating Temperature |
-4 to 140°F / -20 to 60°C |
Packaging Info
| Package Weight |
0.1 lb |
| Box Dimensions (LxWxH) |
7.8 x 6.55 x 0.7" |
