CAMVATE C3146 Overview

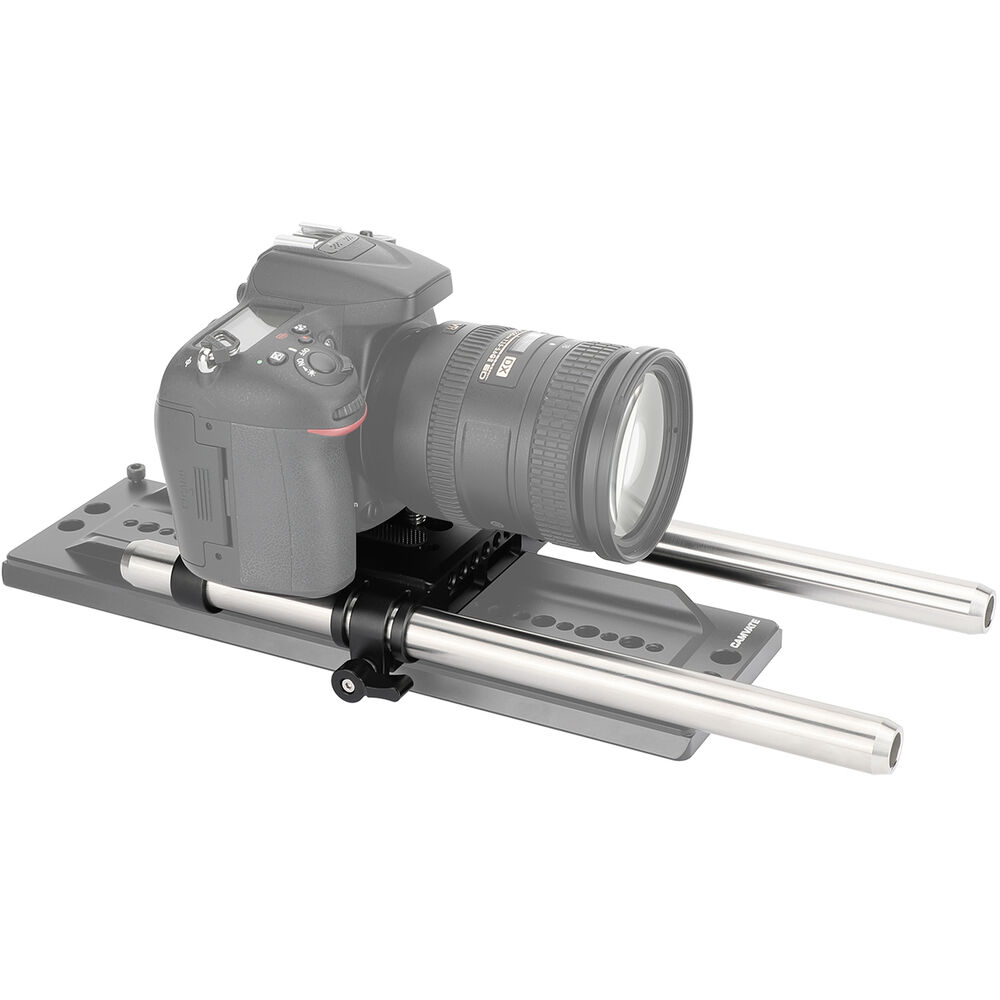

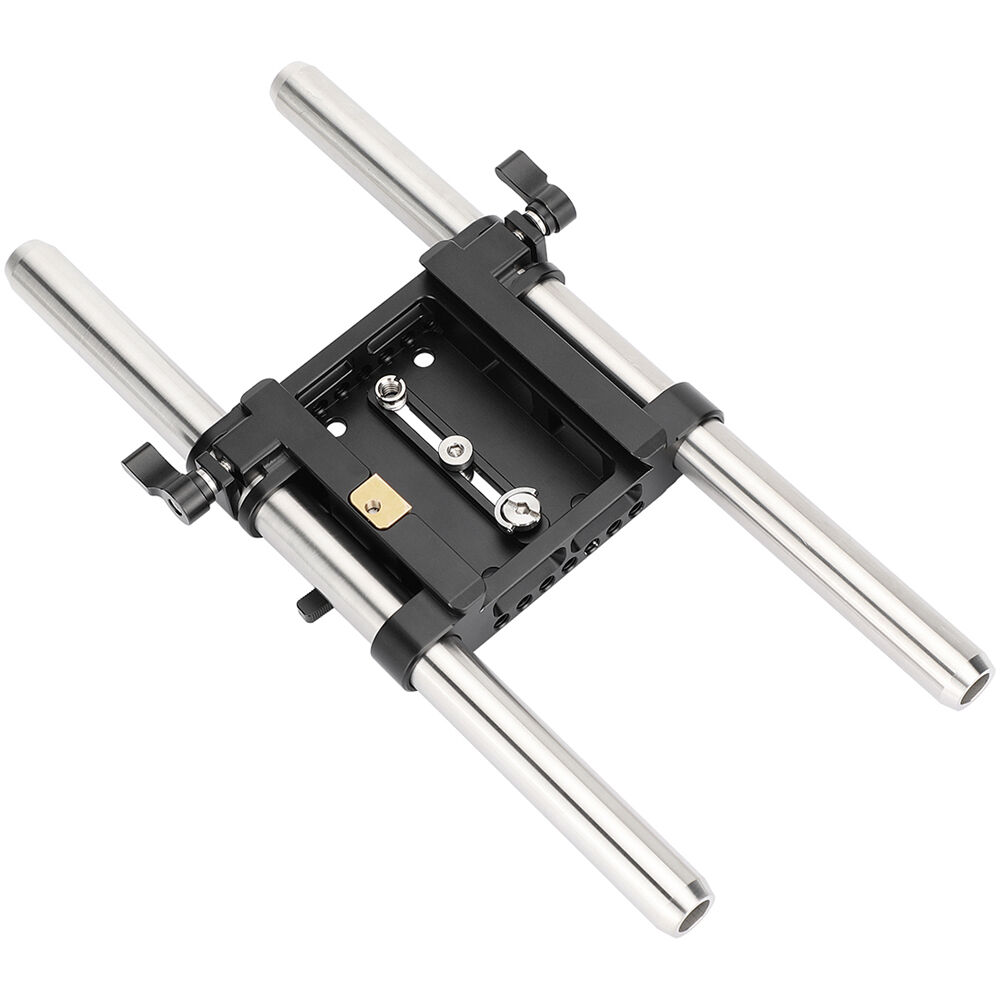

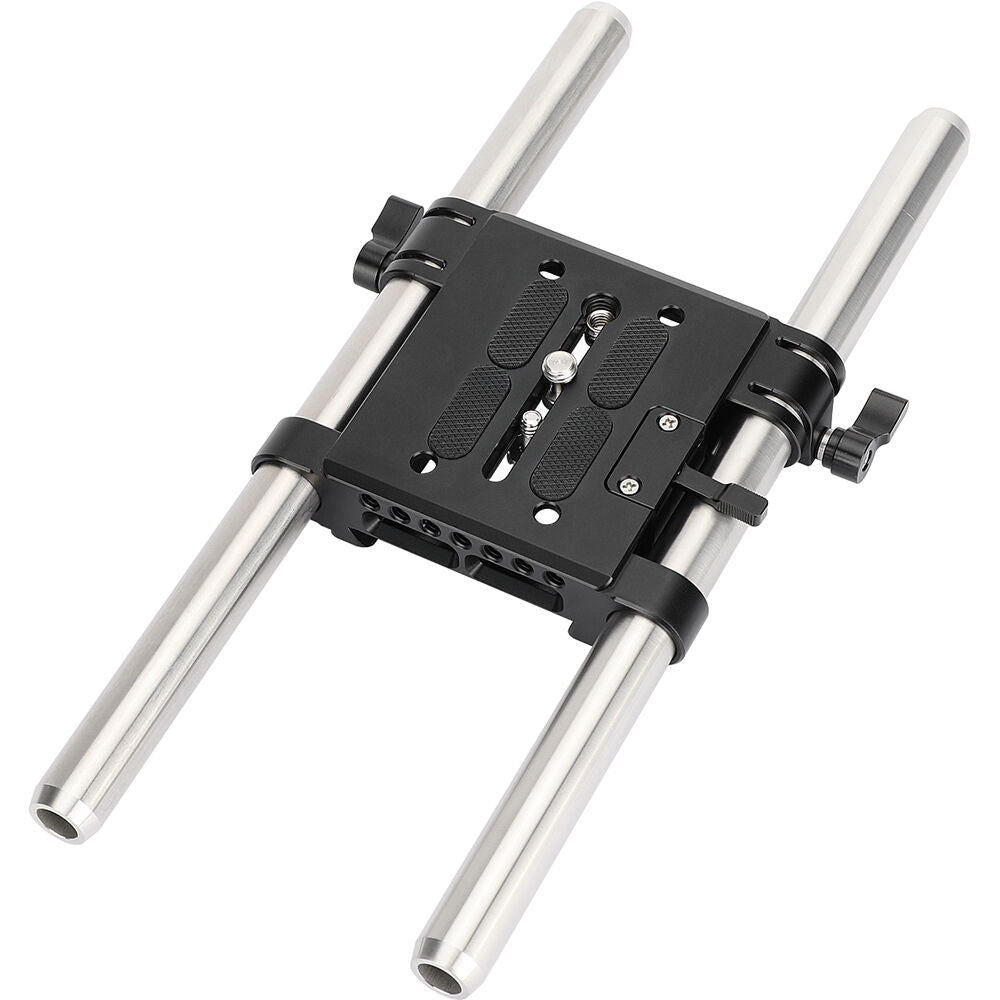

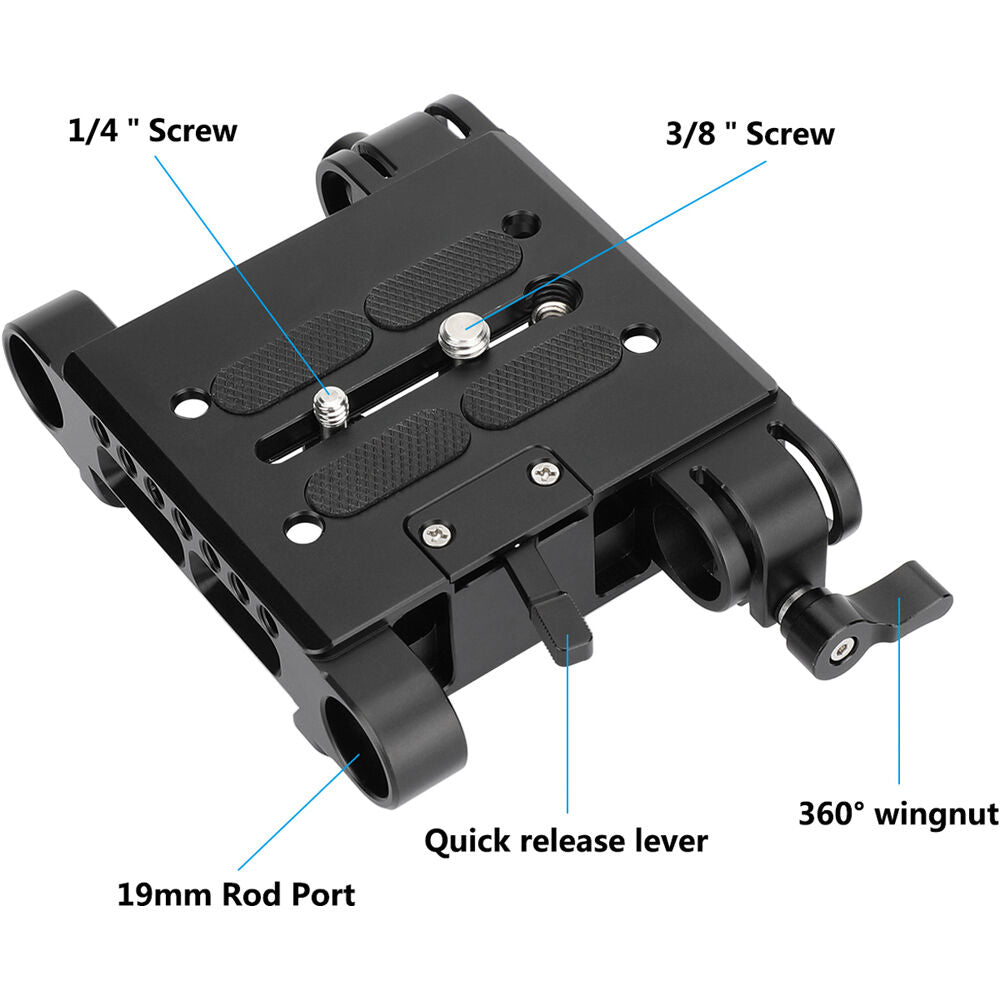

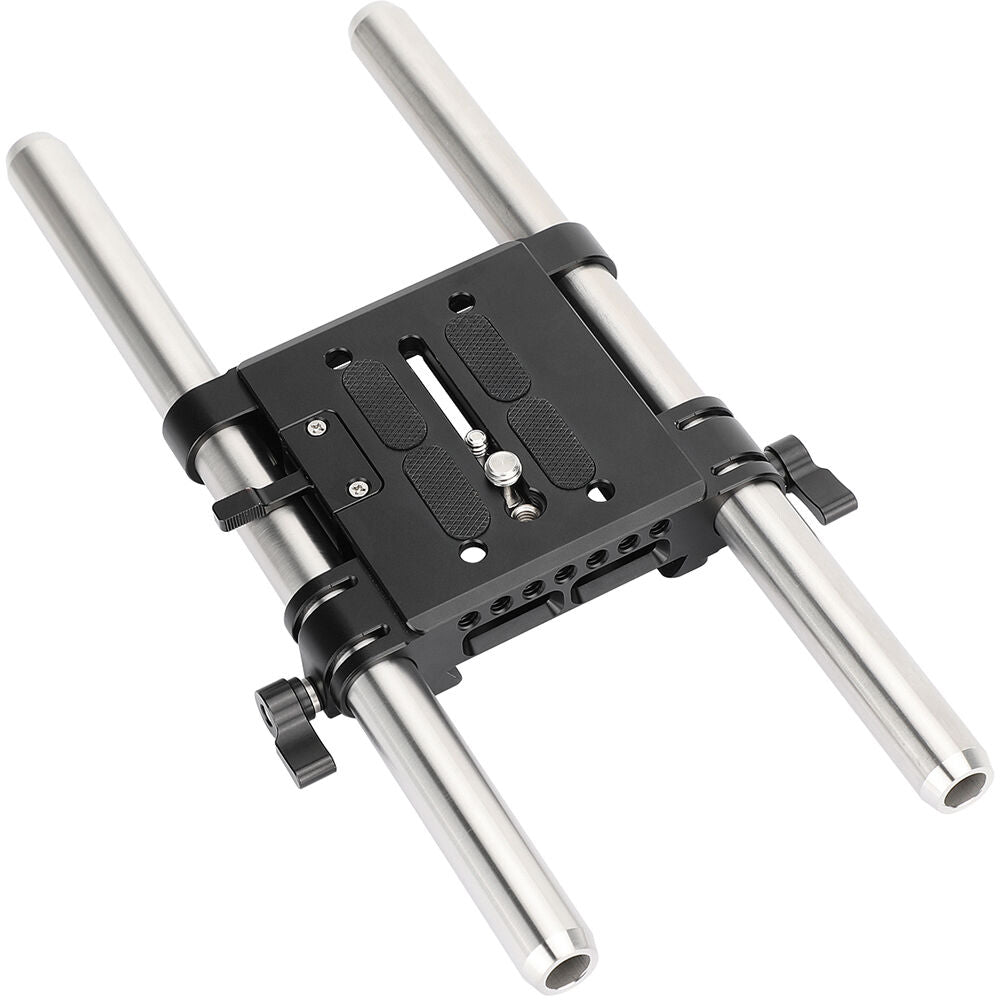

Mount your camera on this Quick Release ARRI Dovetail Baseplate with 19mm Studio Rods from CAMVATE to incorporate it into 19mm studio standard configurations. The ARRI standard dovetail plate features both a 1/4"-20 and 3/8"-16 screw to secure your camera to the baseplate and can be dismounted by engaging the quick release lever.
Either side of the plate has a 19mm rod clamp with 360° wingnuts to secure the included 11.8" rods. You can then freely adjust the plate along the length of the rods for optimal placement. The 1/4"-20 mounting threads at the front and back of the plate can incorporate lens support and battery plate accessories into the configuration to better power or reduce strain on your camera.

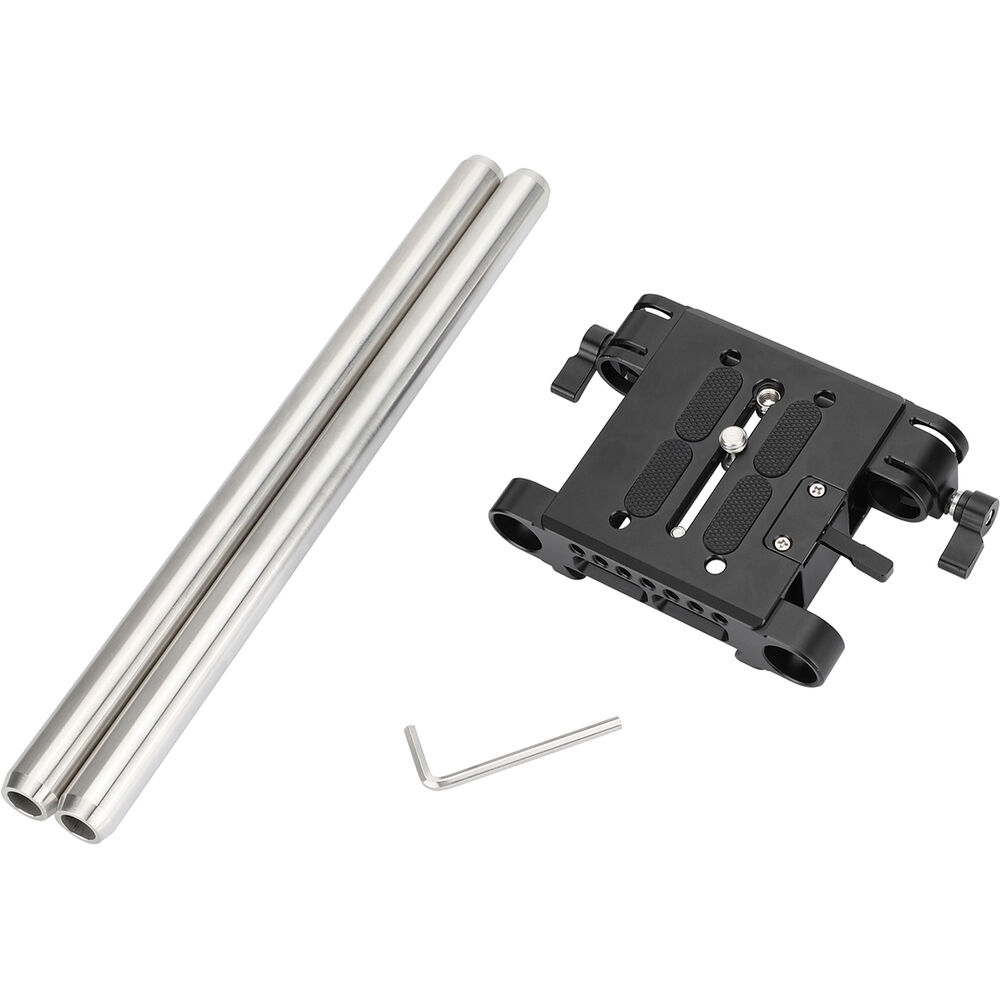

In the Box
- CAMVATE Quick Release ARRI Dovetail Baseplate with 19mm Studio Rods
- 2 x 19mm Rod (11.8")
- Allen Key
CAMVATE C3146 Specs
| Support Type |
Baseplate |
| Grip Type |
None |
Mounting
| Rod Standard |
19 mm Studio / 104 mm Spacing |
| Included Rods |
2 x 11.8" / 30 cm Rod |
| Battery Plate Type |
None |
| Accessory Mounting |
Multiple x 1/4"-20 Female Thread |
| Camera Mounting |
1/4"-20 Male Screw, 3/8"-16 Male Screw |
| Rod Ports |
2 x 19 mm Rod Port |
| Shoe Mounting |
None |
| Rosettes |
None |
General
| Materials |
Aluminum, Steel |

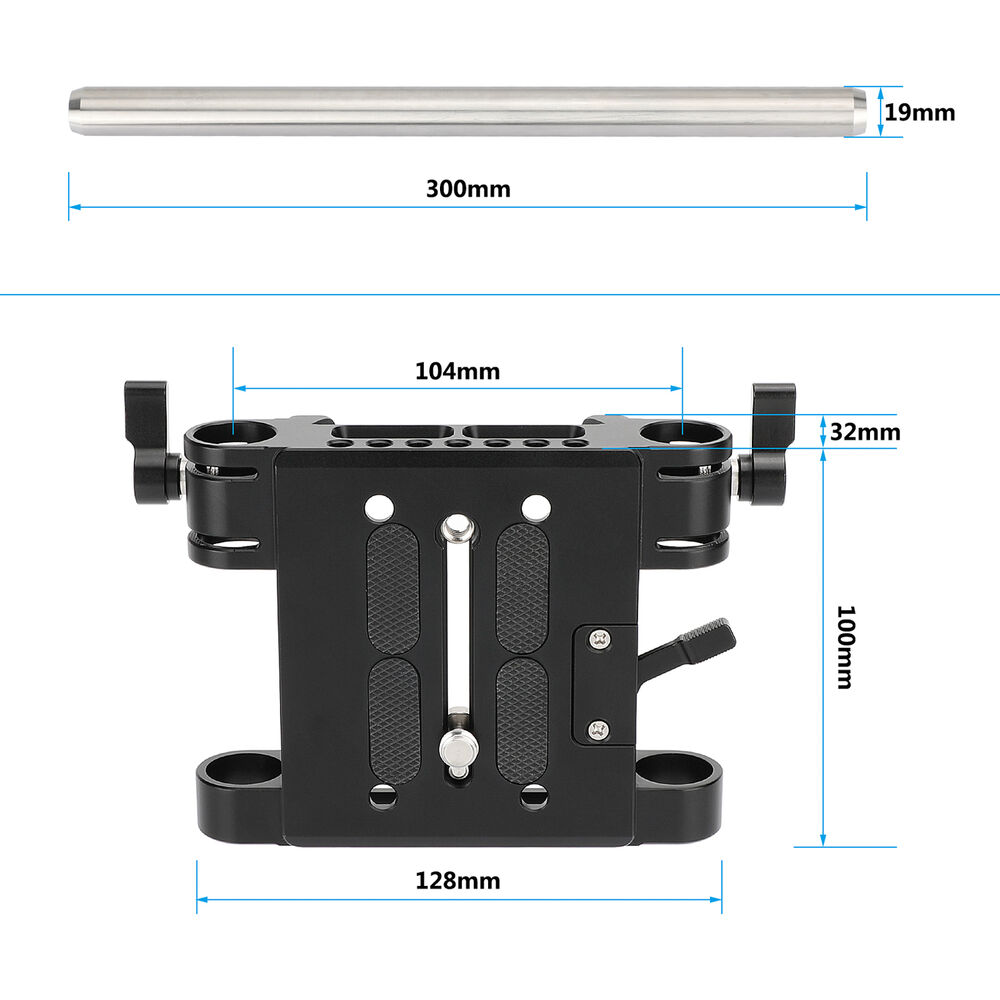

| Dimensions |
5 x 3.9 x 1.3" / 128 x 100 x 32 mm (Baseplate) |
| Weight |
2.54 lb / 1.15 kg |
