Canare Star Quad (L-4E6S) Microphone Cable Overview

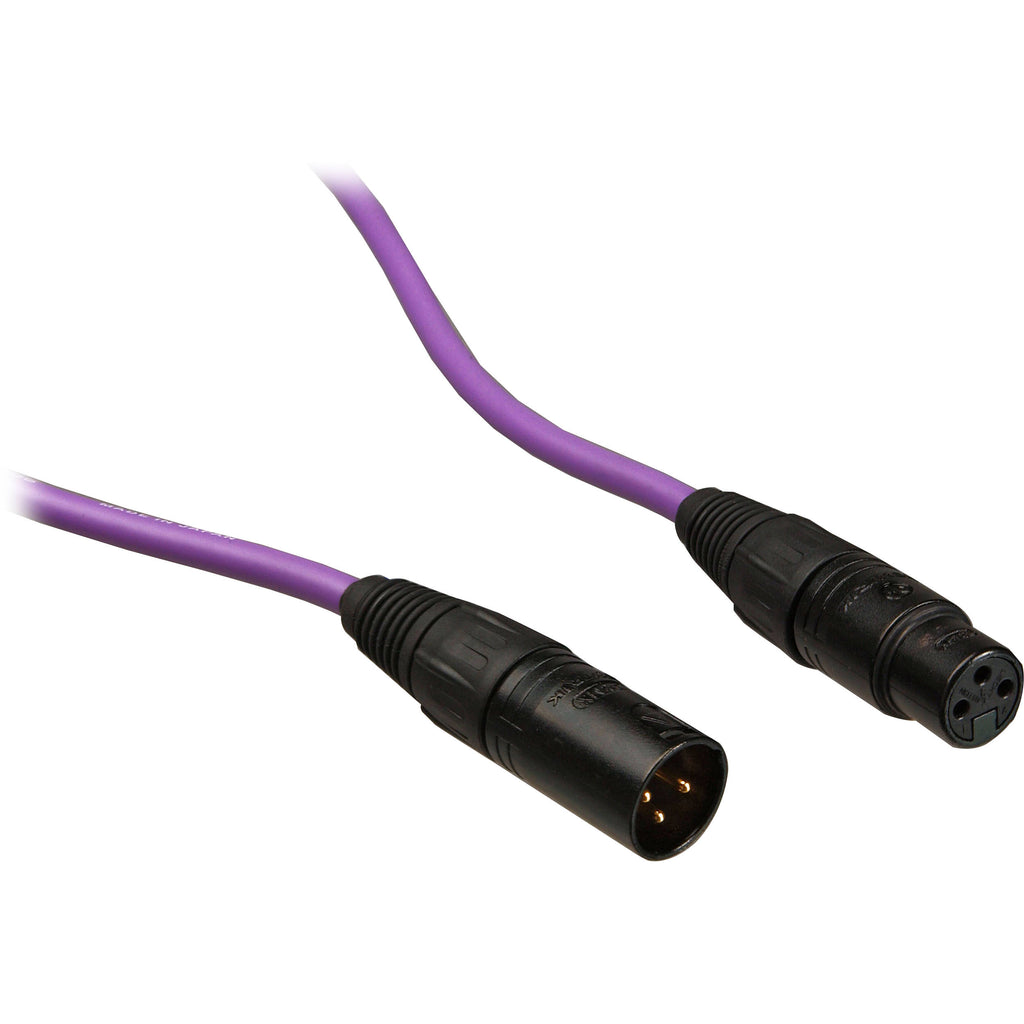

The 10' purple Canare L-4ES- Star Quad XLR Male to XLR Female Cable is a 4-conductor cable that features Neutrik Black & Gold male and female XLR connectors and 21 American Wire Gauge (AWG), 40-strand annealed copper conductors. Its shielding is a copper high-density TAC braid that helps provide flexibility when handling. It can be used for handheld and camera mounted microphones, as well as for studio purposes.
Canare Star Quad (L-4E6S) Microphone Cable Specs
Connector 1 |
XLR 3-Pin Male |
Connector 2 |
XLR 3-Pin Female |
Cable Length |
10' / 3 m |
Shielding |
95% Tinned-Annealed Copper (TAC) Braid |
Conductor Material |
Bare Annealed Copper (BAC) |
Number of Conductors |
4 |
Wire Gauge |
21 AWG |
Insulation Type |
Polyethylene |
Nominal Impedance |
44 Ohms |
Conductor DC Resistance |
0.0299 Ohms/ft (Up to 1000' / 304.8 m) |
Shield DC Resistance |
0.0091 Ohms/ft (Up to 1000' / 304.8 m) |
Packaging Info
Package Weight |
0.47 lb |
Box Dimensions (LxWxH) |
7.3 x 6.8 x 1.35" |
