- Neutrik Black & Gold Connectors
- 21 AWG Wire
- 4-Conductor Cable
- Copper Braid Shielding

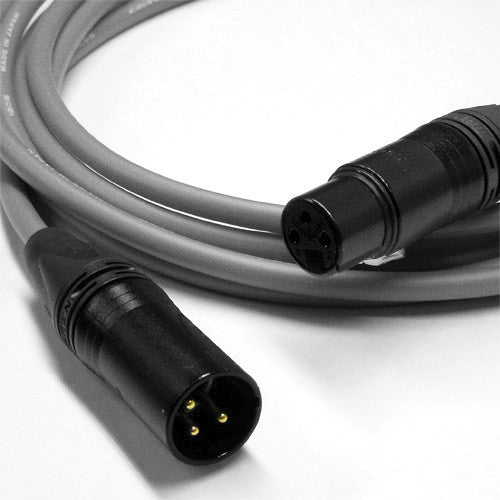

The 6' gray Canare L-4ES- Star Quad XLR Male to XLR Female Cable is a 4-conductor cable that features Neutrik Black & Gold male and female XLR connectors and 21 American Wire Gauge (AWG), 40-strand annealed copper conductors. Its shielding is a copper high-density TAC braid that helps provide flexibility when handling. It can be used for handheld and camera mounted microphones, as well as for studio purposes.
| Connector 1 | Neutrik Black & Gold XLR-Male |
| Connector 2 | Neutrik Black & Gold XLR-Female |
| Conductors | 21 AWG, 40-Strand (x 4) Annealed Copper |
| Insulation | Cross-Linked PE Insulation |
| Shield | > 95% Copper High-Density TAC Braid |
| Resistance | Conductor DC: <29.9 ?/1000' (305 m)
Shield DC: <9.1 ?/1000' (305 m) |
| Impedance | 44 ? (Nominal) |
| Capacitance | 46.0 pF/ft @ 1 kHz |
| Length | 6' (1.8 m) |
| Packaging Info |
| Package Weight | 0.4 lb |
| Box Dimensions (LxWxH) | 7.0 x 6.5 x 0.75" |
