Description
Canare LV-61S Overview

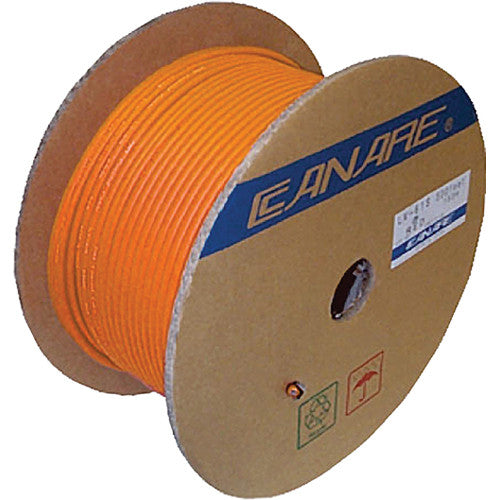

The Canare LV-61S Video Coaxial Cable (500� / Orange) is a flexible RG59B/U equivalent cable suitable for interfacing with video equipment, making it useful in video patch cord assembles and general ENG work. The cable utilizes a smooth, non-glare Orange finish PVC jacket. The cable retains its flexibility in a wide array of weather conditions, including subzero weather.
Stays flexible even in subzero weather conditions
Flexible, stranded bare copper center conductor
Dielectric strips away clean from conductor
Solid polyethylene dielectric
Ideal for broadcast transmission, digital and analog, ENG/EFP, and inter-rack wiring applications
In the Box
- Canare LV-61S Video Coaxial Cable (500' / Orange)
- Limited 1-Year Manufacturer Warranty
Canare LV-61S Specs
| Length | 500' / 153 m |
| Impedance | 75 Ohms |
| Outer Diameter | Nominal: 0.24' / 6.1 mm Conductor: 0.02" / 0.6 mm Insulation: 0.14" / 3.6 mm |
| PVC Jacket Thickness | 0.04' / 1 mm |
| Connector Type | 24 AWG |
| Cable | RG59 Type |
| Insulation | Polyethylene Dielectric |
| Brittle Point | -22°F / -30°C |
| Conductor | AWG (AC): 24 (7 / 7.88 Quantity / mm) |
| Shield Material Coverage | AC >95% |
| Conductor D.C.R. | At 1000': <25.9 Ohms At 100 m: <8.5 Ohms |
| Shield D.C.R | At 1000': <4 Ohms At 100 m: <1.3 Ohms |
| Return Loss | ? 20 dB |
| Nominal Capacitance | At 1 kHz: 21 pF/ft / 67 pF/m |
| Velocity of Propagation | 75 Ohms |
| Transmission Rate | SD 66% at 270 Mb/s |
| Nominal Attenuation | At 10 MHz: 1.3 dB/100' / 30.48 m; 4.2 dB/100 m / 328' At 50 MHz: 2.7 dB/100' / 30.48 m; 9 dB/100 m / 328' At 100 MHz: 4.1 dB/100' / 30.48 m; 13.3 dB/100 m / 328' At 150 MHz: 5 dB/100' / 30.48 m; 16.3 dB/100 m / 328' At 200 MHz: 5.7 dB/100' / 30.48 m; 18.8 dB/100 m / 328' At 400 MHz: 8.1 dB/100' / 30.48 m; 26.6 dB/100 m / 328' At 700 MHz: 10.7 dB/100' / 30.48 m; 35.1 dB/100 m / 328' At 900 MHz: 12.1 dB/100' / 30.48 m; 39.8 dB/100 m / 328' At 1 GHz: 12.8 dB/100' / 30.42 m; 42 dB/100 m / 328' |
| Weight | 19 lb / 8.6 kg |
Packaging Info
| Package Weight | 19.25 lb |
| Box Dimensions (LxWxH) | 11.5 x 11.5 x 6.6" |
