Description

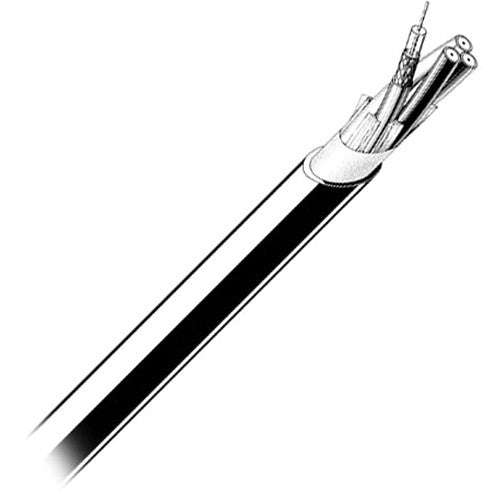

Canare V3-3C Overview
The Canare V3-3C Video Coaxial Cable (656' / 200 m) is a good choice for limited length cable runs or where conduit size may be restricted. It is flexible for untangled pay-out and easy wrap-ups.
Used for the following applications: Component analog video, video projectors, video walls, studio tie lines, and CG / CAD workstations
Flexible center conductor
Channel ID colors
Special jacket fillers
Dielectric strips away clean from conductor
2.2 ns differential delay
Canare V3-3C Specs
| Number of Channels | 3 (Red, green, & blue) |
| Outer Diameter | Nominal: 0.453" (11.5 mm) Channel: 0.237" (6 mm) Conductor: 0.031" (0.78 mm) Insulation: 0.189" (4.8 mm) |
| Channel Jacket Nominal Thickness | 0.036" (0.90 mm) |
| Brittle Point | -22°F (-30°C) |
| Conductor | AWG: AC-#25 (7/7.09) (Quantity/mm) |
| Dielectric Insulation Type | Foam PE |
| Dielectric Strength | 1000 VAC/min |
| Shield Material Coverage | >97% |
| Conductor D.C.R. | <10.5 |
| Shield D.C.R | <1.1 |
| Nominal Mutual Capacitance | 21 pF/ft (67 pF/m) @ 1 KHz |
| Nominal Impedance | 75 ? |
| Differential | Delay: <2.2 |
| Velocity of Propagation | 66% |
| Return Loss | ?20 dB at 2 GHz |
| Nominal Attenuation | At 10 MHz: 1.5 (4.9) dB At 50 MHz: 3.2 (10.4) dB At 100 MHz: 4.7 (15.5) dB At 150 MHz: 5.8 (19) dB At 200 MHz: 6.7 (21.9) dB At 400 MHz: 9.4 (31) dB At 700 MHz: 12.5 (41) dB At 900 MHz: 14.2 (46.5) dB At 1.0 GHz: 14.9 (49) dB |
| Length | 656' (200 m) |
| Weight | 66 lb (30 kg) |
Canare V3-3C Reviews
