Description

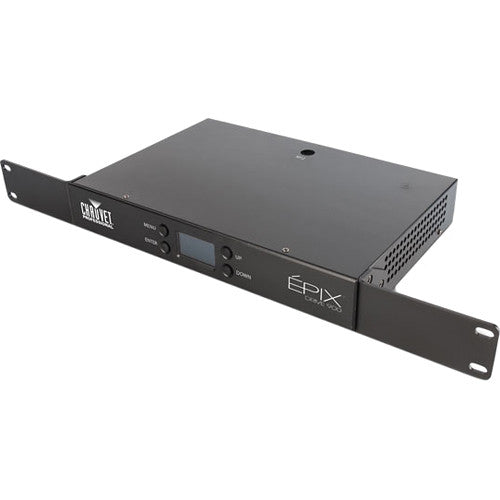

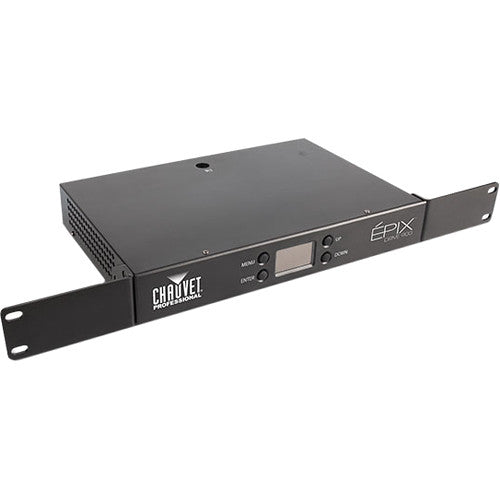

CHAUVET PROFESSIONAL Drive 900 Overview
As the processing host and power supply of the ÉPIX Tour System, the ÉPIX Drive 900 from Chauvet supports either 18 ÉPIX Strip Tours or 6 ÉPIX Bar Tours, or any combination of the two, with a total capacity of 900 LEDs. The unit supports Art-Net, Kling-Net, and sACN, giving you a variety of control options. Its integrated web server allows you to remotely diagnose, troubleshoot, and change settings as needed without having to directly access the ÉPIX lights.
Benefits
The processing and power center of the ÉPIX Tour system will drive any combination of ÉPIX Tour products, up to 900 LEDs
Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring/rental/installation markets
Quickly and easily configure the ÉPIX Drive 900 using the built-in OLED display
Easily detect and automatically configure your devices using the auto-address function, regardless of fixture order or type (bar/strip)
Supports up to 18 ÉPIX Strip Tours or 6 ÉPIX Bar Tours
Easily daisy chain fixtures directly from the single output of the ÉPIX Drive 900 on a single cable
Advanced power management design allows you to position the ÉPIX Drive 900 up to 65 ft away from your last fixture (using shielded cable)
Works with Arkaos Media Master Express for a plug-and-play system that requires almost no training to operate
UPC: 781462214890
In the Box
- CHAUVET PROFESSIONAL ÉPIX Drive 900
- Neutrik powerCON Power Cord
- 2 x Rack Ears
- Bag of Rack Ear Mounting Screws
- 4 x Rubber Feet
- Limited 2-Year Warranty
CHAUVET PROFESSIONAL Drive 900 Specs
| Material |
Black-finished steel
|
| Mounting |
M12 threaded bolt
Rackmount: 1U |

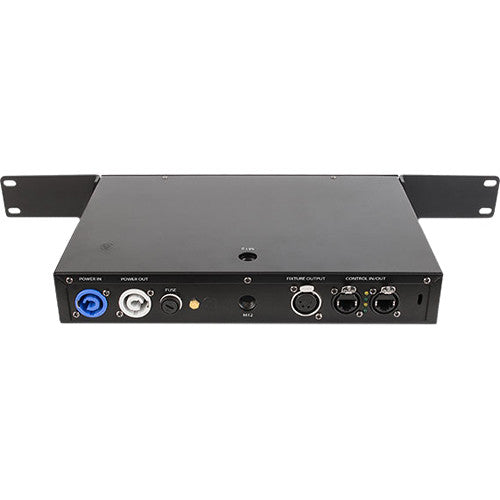

| Connections |
Power Connection: Edison (local) plug to Neutrik powerCON
Power Input: Neutrik powerCON Power Output: Neutrik powerCON Device Outputs (4-pin XLR): 1x Physical Linking: 18 inline Epix Strip Tour or 6 inline Epix Bar Tour Data Connectors: Neutrik etherCON Cable Length (power): 5.0' (1.5 m) Minimum Required Device Linking Cable Size: 4 conductor (2x 18 AWG, 2x 20 AWG) |
| Maximum Cable Length |
Shielded Cables:
Between Epix Drive 900 and Last Epix Tour Fixture: 210' (64 m) Between Epix Drive 900 and First Epix Tour Fixture: 65' (20 m) Between Epix Tour Fixtures: 60' (18 m) Unshielded Cables: Between Epix Drive 900 and Last Epix Tour Fixture: 300' (91 m) Between Epix Drive 900 and First Epix Tour Fixture: 150' (45 m) Between Epix Tour Fixtures: 100' (30 m) |
| Control |
Control Protocol: Art-Net, Kling-Net, sACN
Control Channels: 6 Art-Net/sACN Universes |
| Electrical |
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 6 units @ 120 VAC, 11 units @ 208 VAC 12 units @ 230 VAC Power and Current 299 W, 2.53 A @ 120 VAC, 60 Hz 299 W, 1.44 A @ 208 VAC, 60 Hz 299 W, 1.31 A @ 230 VAC, 50 Hz Power and Current Resting 23 W, 0.195 A @ 120 VAC, 60 Hz 32 W, 0.156 A @ 208 VAC, 60 Hz 32 W, 0.133 A @ 230 VAC, 50 Hz Maximum Load: 18 Epix Strip Tours or 6 Epix Bar Tours (per output) |
| Certifications & Ratings |
CE, MET
IP Rating: IP20, dry location Temperature (Ambient): -4 to 113°F (-20 to 45°C) |
| Dimensions |
Rack with Ears: 19 x 7.6 x 1.97" (483 x 193 x 50 mm)
Rack Without Ears: 11.14 x 7.60 x 1.97 in (283 x 193 x 50 mm) |
| Weight |
5.42 lb (2.46 kg)
|
Packaging Info
| Package Weight |
8.45 lb
|
| Box Dimensions (LxWxH) |
14.3 x 11.9 x 4.6"
|
