Description

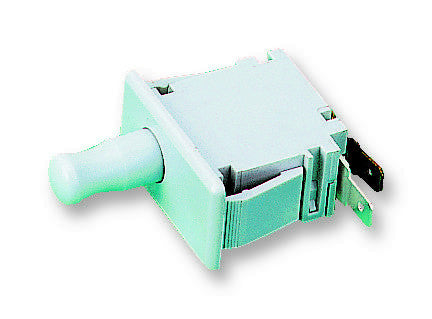

The 0E69-00A0 is a single-pole double-throw panel-mount Pushbutton Switch with stainless steel long life coil spring, momentary button style and snap-in mounting. The pushbutton switch comes with a thermoplastic polyester case, thermoplastic acetal actuator button, brass (common Ag plated) terminals and beryllium copper moving blade.
- -40 to 85�C Temperature range
Applications
Industrial
Product details
| Contact Voltage DC Nom | - |
| Switch Operation | Off-(On) |
| Contact Voltage AC Nom | 250V |
| Switch Terminals | Quick Connect, Solder |
| Contact Configuration | SPDT |
| Product Range | Basic Momentary Action Series |
| Contact Current Max | 10A |
Other details
| Brand | CHERRY |
| Part Number | 0E69-00A0 |
| Quantity | Each |
