Description
CINEGEARS Ghost Eye 300M Overview
The Ghost-Eye 300M Wireless HDMI/3G-SDI Video Transmission Kit from CINEGEARS enables you to transmit up to 1080p60 uncompressed HD video and audio at line-of-sight distances up to 1150'. This Ghost-Eye set features both HDMI and 3G-SDI inputs and outputs, 10-bit 4:2:2 video, a built-in fan, and a heavy-duty articulated mounting arm. The 300M kit uses up to 30% less power than previous models and can transmit to an unlimited number of additional receivers.
Additional features of the Ghost-Eye 300M set include 10-channel frequency selection, HDMI to SDI cross conversion, AES encryption, and 5 GHz Wi-Fi compatibility. Cross-compatibility with Ghost-Eye 100M/300M/400M units enables you to mix and match the set with components you may already have.
The 300M transmitter and receiver accept a wide 7-36V power input range via their 4-pin LEMO power inputs. Three omnidirectional antennas are included with the transmitter; the receiver has a built-in directional antenna. A hard-shell case with dedicated foam cutouts is included for transporting and protecting all the Ghost-Eye 300M set components.
Features
- Transmits uncompressed 1080p60, 10-bit, 4:2:2 video up to 1150'
- Cross-compatible with 100M/300M/400M Ghost-Eye models
- Supports unlimited receivers
- Less than 1 ms of latency
- Uses license-free 5 GHz frequency band; coexists with Wi-Fi
- Includes a heavy-duty articulated mounting arm
- HDMI and SDI outputs with cross conversion capability
- Uses up to 30% less power than earlier models
- Auto-relink function
- AES-128/265 signal encryption
- Plug-and-play installation
- 1/4"-20 mounting thread
- Wide 7-36V power input via 4-pin LEMO port
- Sturdy metal housings
- Hard-shell case with foam inserts
In the Box

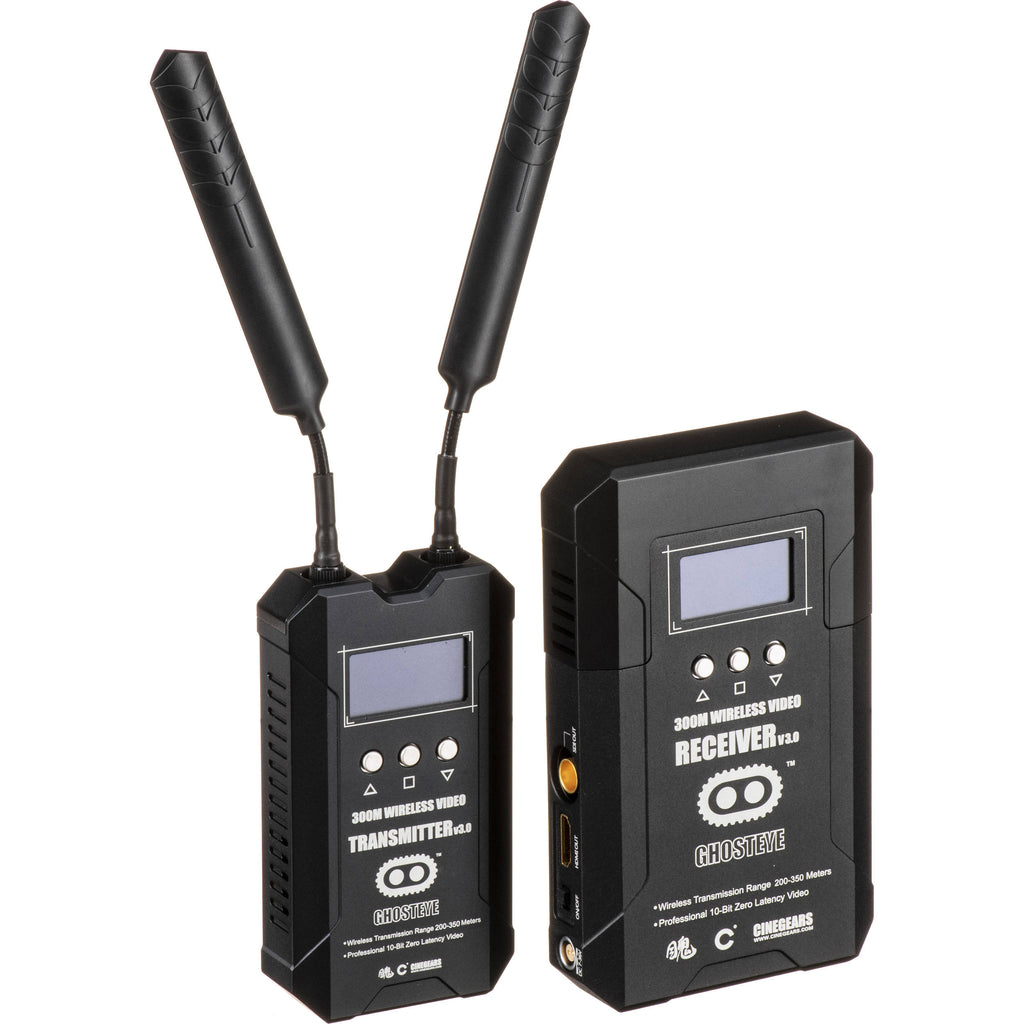

- CINEGEARS Ghost-Eye 300M Wireless HDMI/3G-SDI Video Transmission Kit (1150')

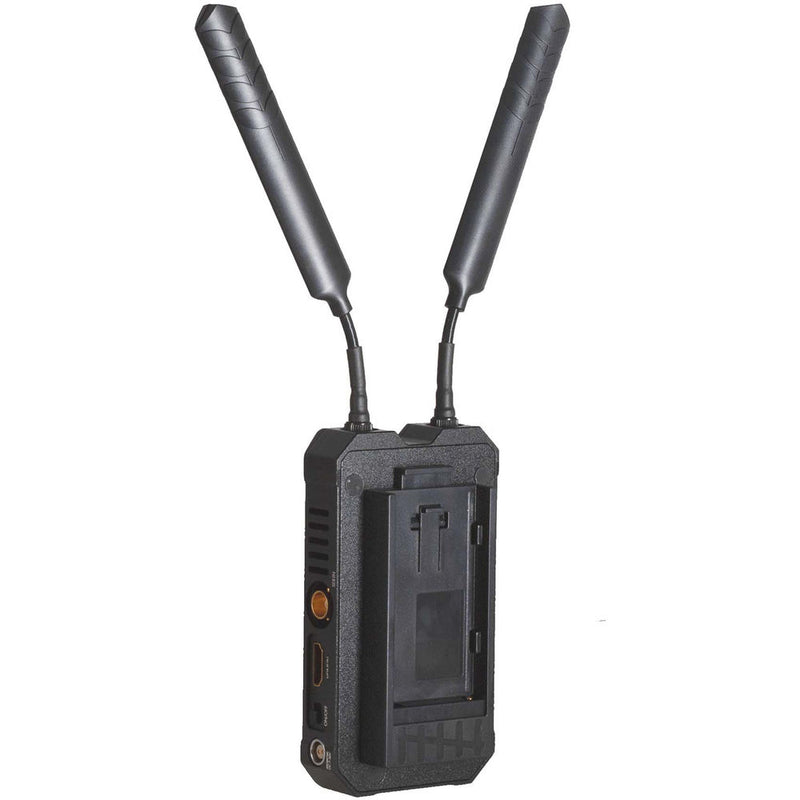

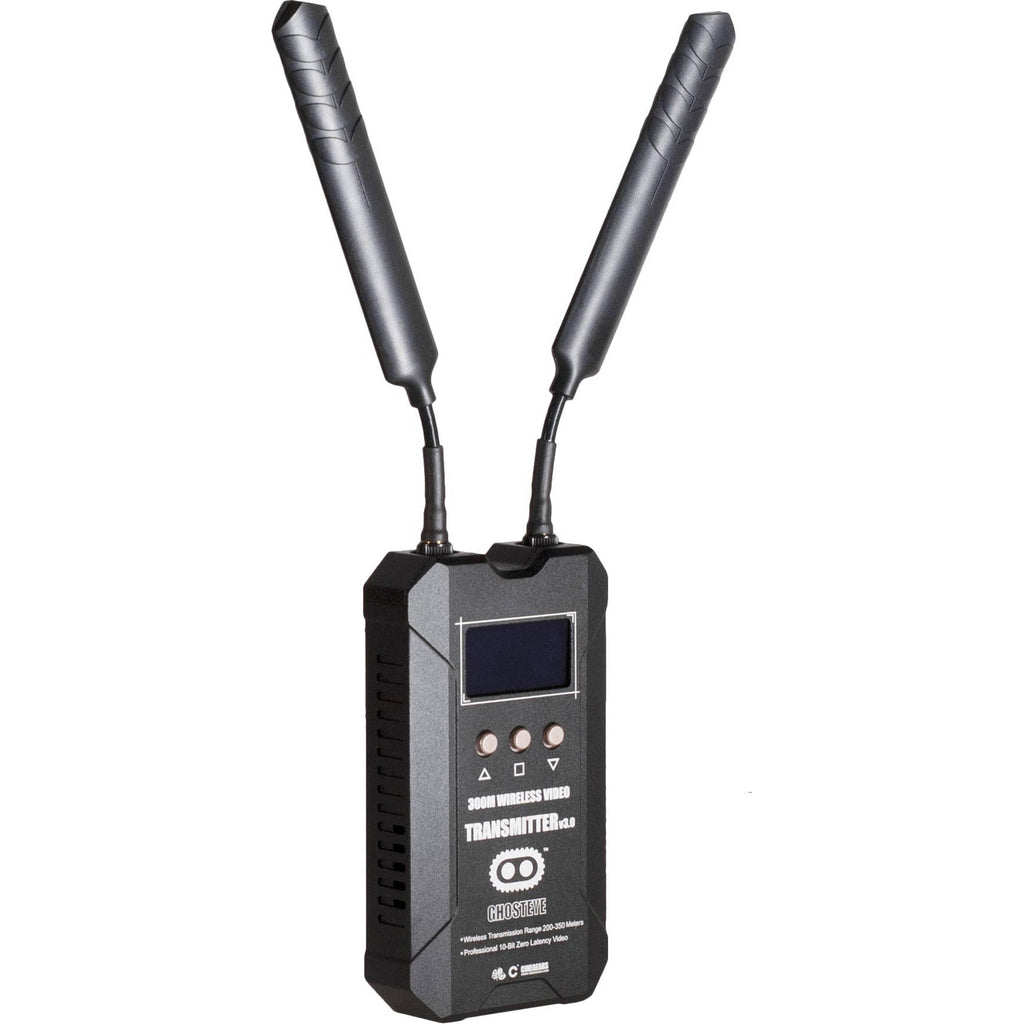

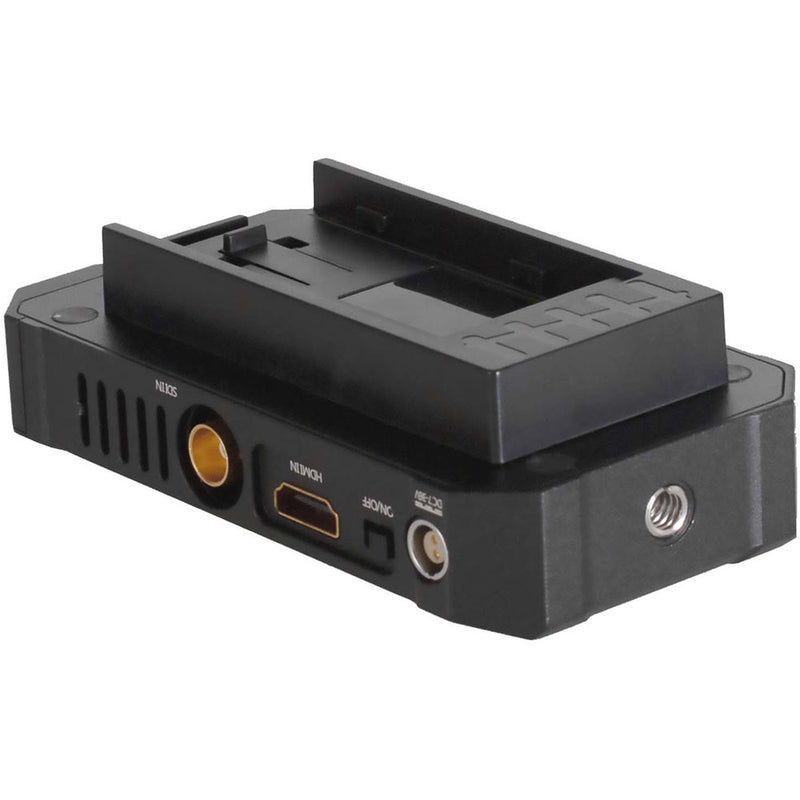

- 300M Video Transmitter

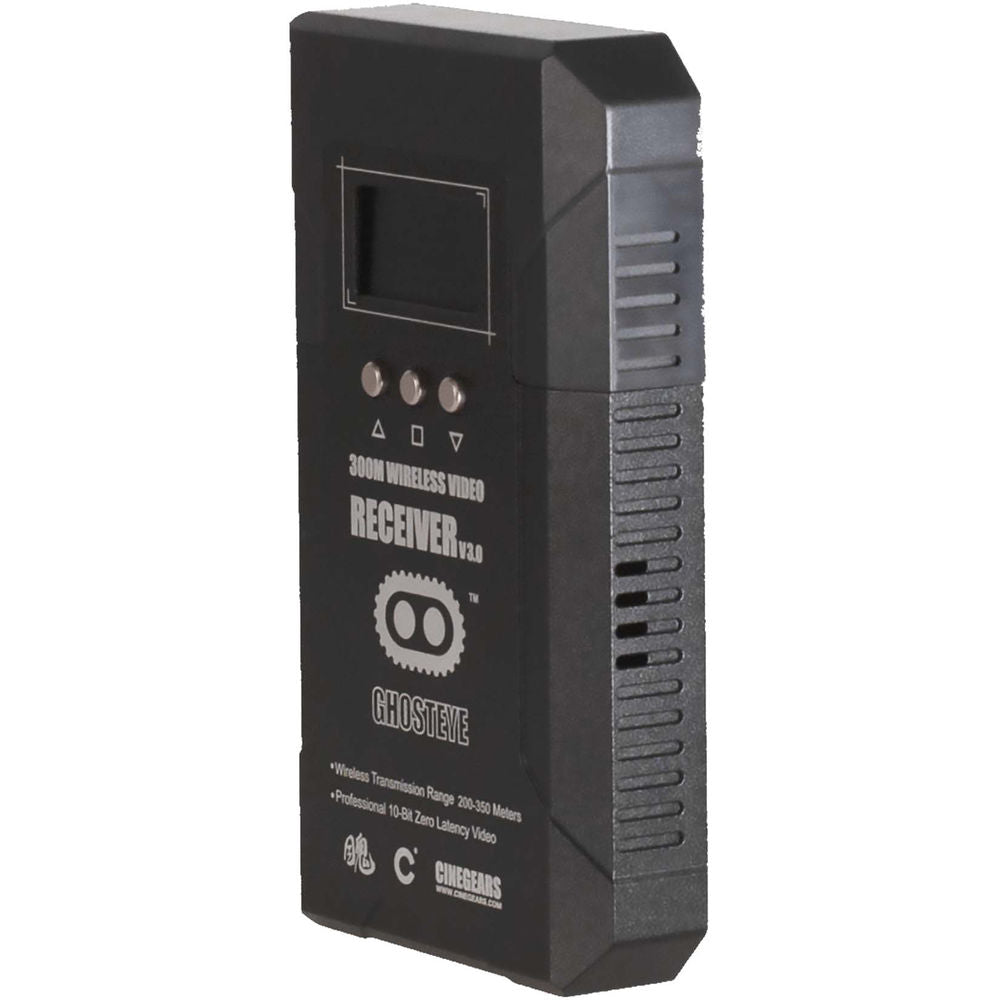

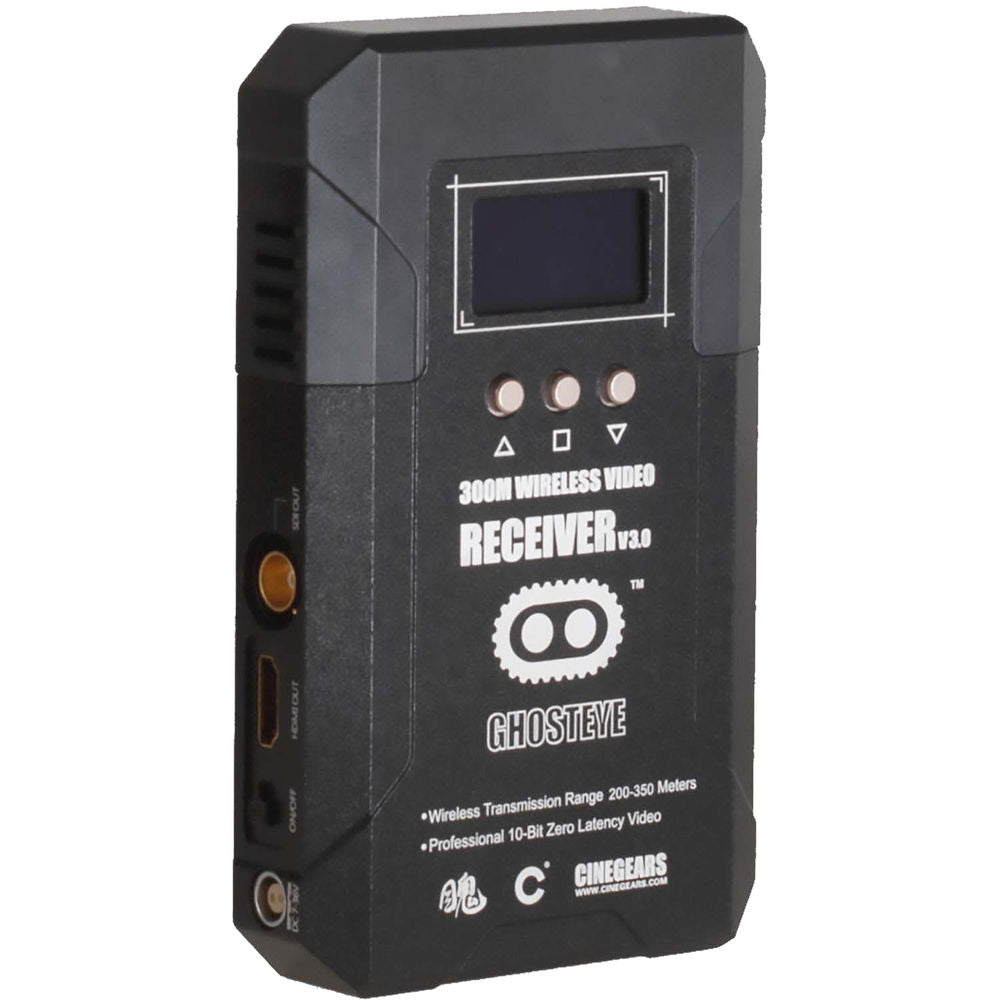

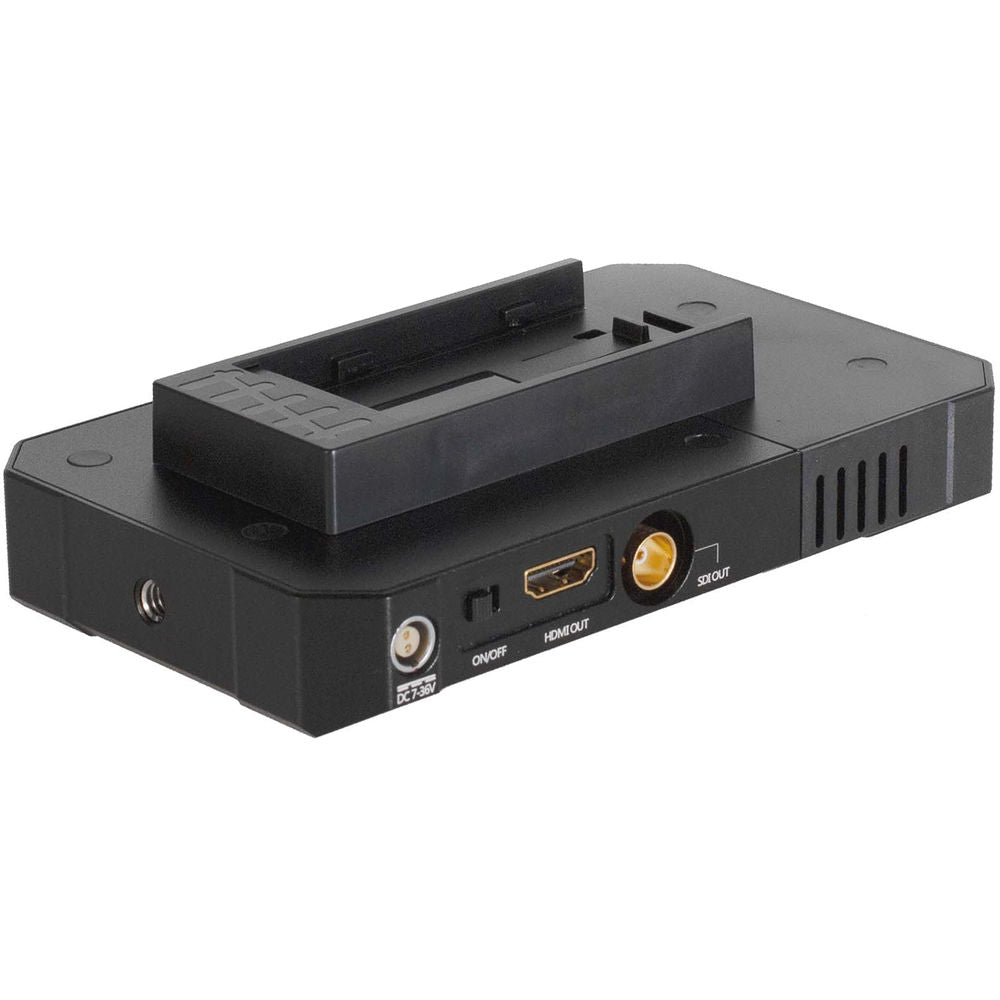

- 300M Video Receiver
- 3 x Omnidirectional Whip Antenna

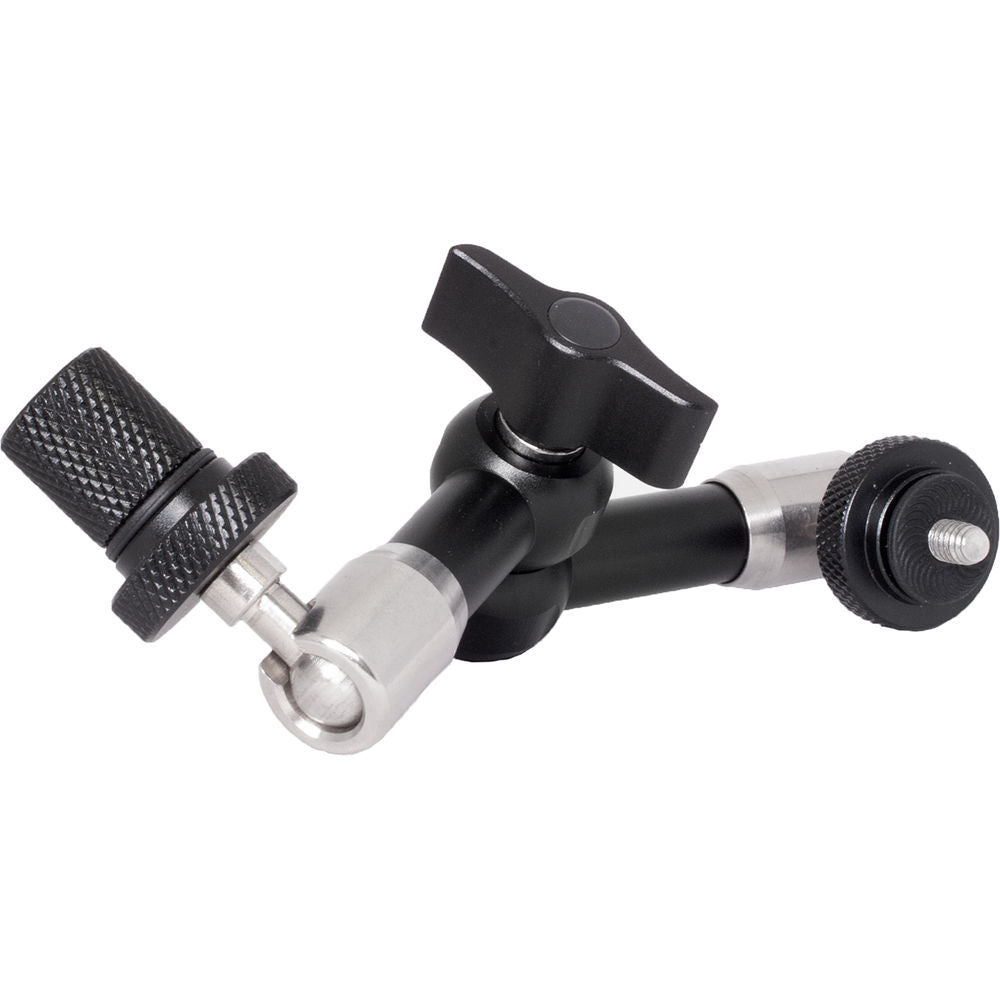

- Heavy-Duty Articulated Arm
- 2 x 2-Pin LEMO-Type Power Cable
- Hard-Shell Case with Foam Inserts
- Limited 3-Year Warranty
CINEGEARS Ghost Eye 300M Specs
| Wireless Range | 1148.29' / 350 m (Line-of-Sight) |
| # of Channels | 10 |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | US, EU: 5.1 to 5.9 GHz |
| Latency | < 1 ms |
| RF Power | 16 dBm |
| RF Sensitivity | -75 dBm |
| Wi-Fi | 5 GHz |
| Wireless Video Compression | Uncompressed |
| Transmitter Antenna Ports | 2 x RP-SMA Male |
| Transmitter Video Connectors | 1 x BNC (3G-SDI) Input 1 x HDMI Input |
| Receiver Video Connectors | 1 x BNC (3G-SDI) Output 1 x HDMI Output |
| Embedded Audio | SDI HDMI |
| Encryption | 128-Bit AES, 256-Bit AES |
| Broadcast System Compatibility | NTSC, PAL |
| Video Format | 1080p 4:2:2 at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps 1080i 4:2:2 at 50, 59.94, 60 fps 720p 4:2:2 at 50, 59.94, 60 fps 576i/480i |
| Format Conversion | Scaling |
| LUT Support | Yes |
| Transmitter Panel Type | OLED |
| Receiver Panel Type | OLED |
| Transmitter Built-In Battery | None |
| Receiver Built-In Battery | None |
| Transmitter Power Connector | 1 x 4-Pin LEMO (7 to 36 VDC) Input |
| Receiver Power Connector | 1 x 4-Pin LEMO (7 to 36 VDC) Input |
| Transmitter Power Consumption | (6.5 W) |
| Receiver Power Consumption | (6 W) |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Transmitter Mounting | 1 x 1/4"-20 Female |
| Receiver Mounting | 1 x 1/4"-20 Female |
| Materials | Metal |
| Certifications | CE, FCC, RoHS, as per Manufacturer |
| Transmitter Dimensions | 4.81 x 2.64 x 1" / 122.2 x 67 x 25.3 mm |
| Receiver Dimensions | 5.99 x 3.76 x 1.02" / 152.2 x 95.4 x 26 mm |
| Transmitter Weight | 8.8 oz / 250 g |
| Receiver Weight | 10.6 oz / 300 g |
| Package Weight | 5.5 lb |
| Box Dimensions (LxWxH) | 14 x 11.5 x 4.75" |
