Description

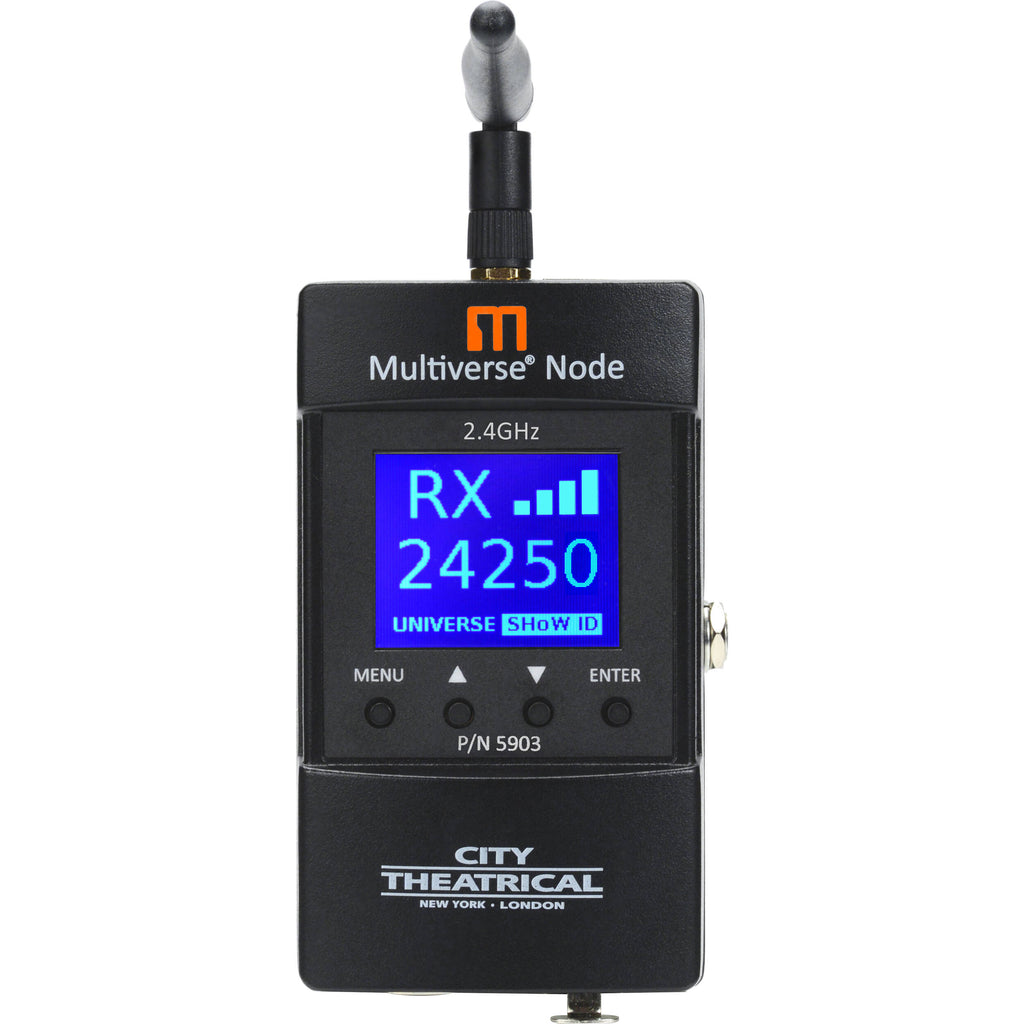

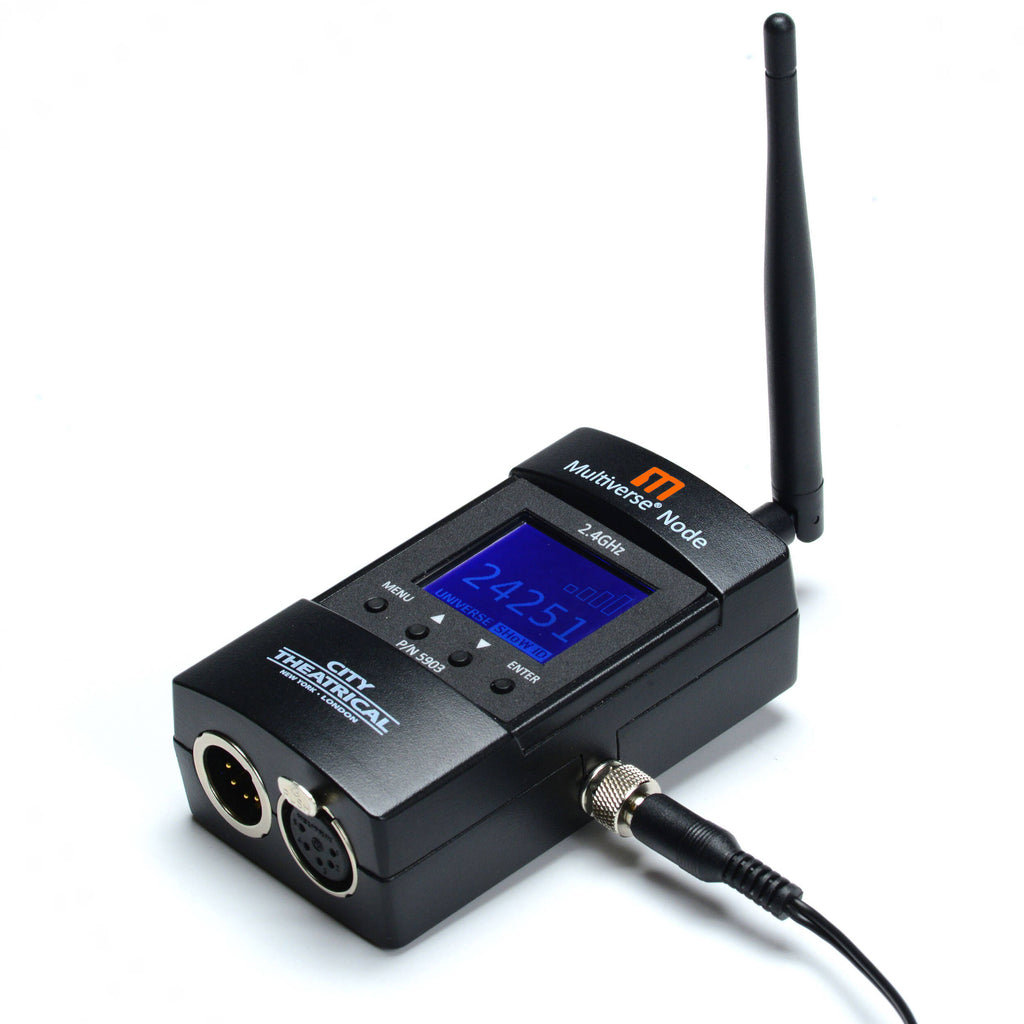

City Theatrical Multiverse Node Overview

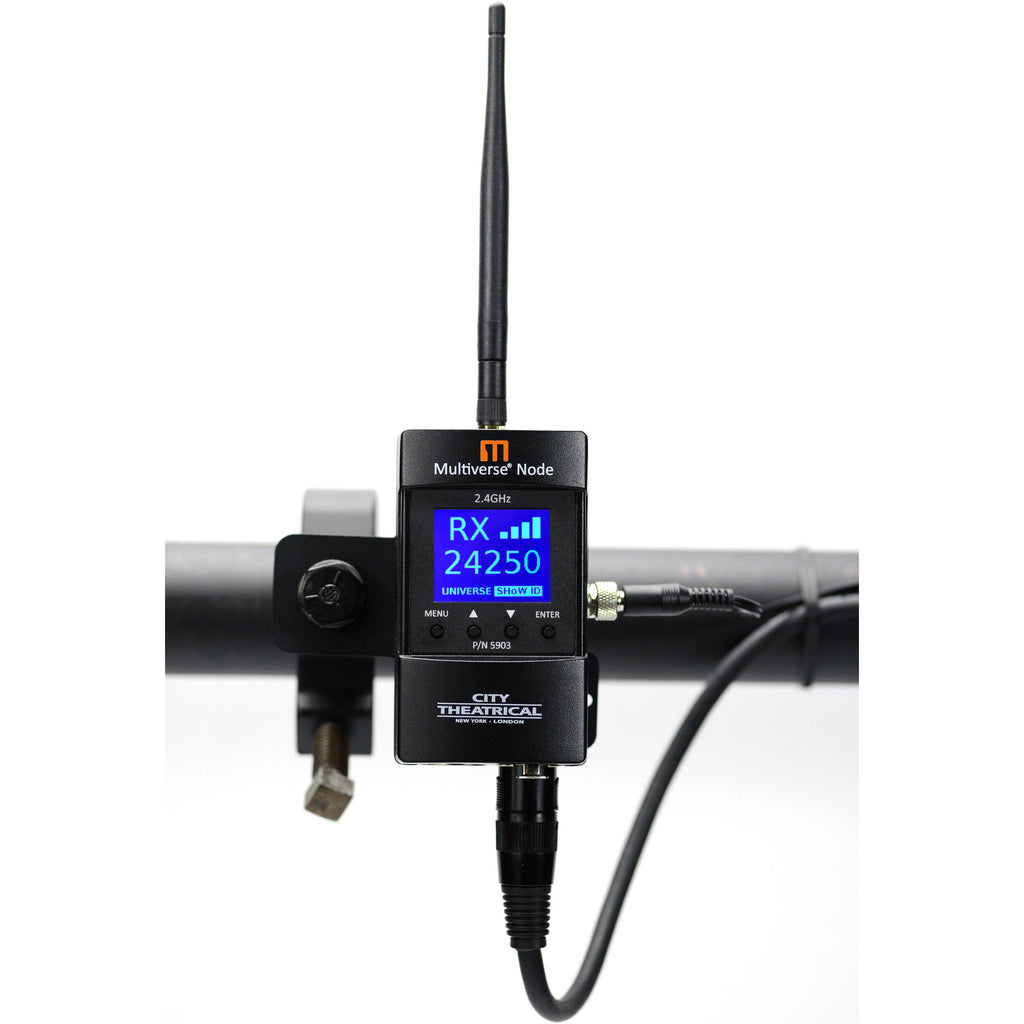

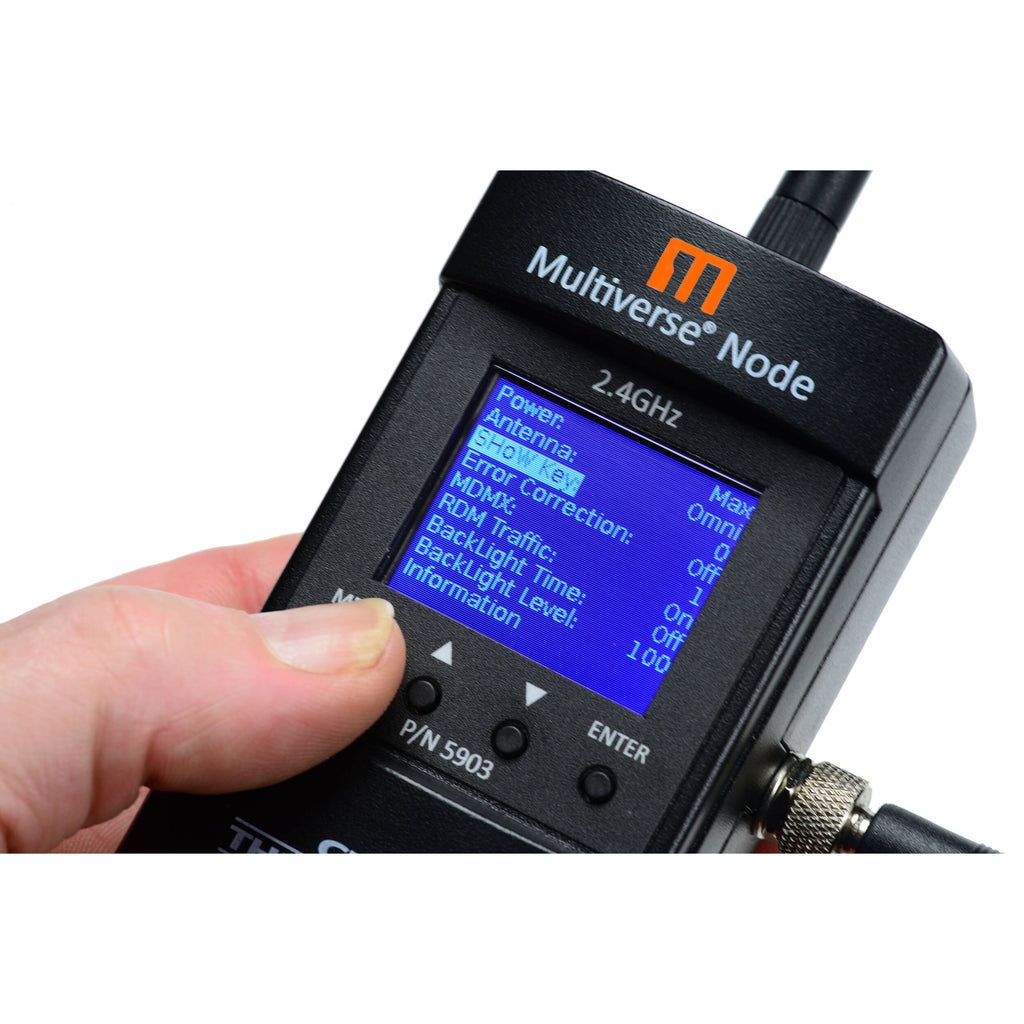

Part of the City Theatrical's Multiverse system, this 2.4 GHz Multiverse Node is a wireless DMX transceiver designed for worldwide use. The Multiverse Node can act as a single-universe transmitter and a standalone receiver. This plug-and-play device is compatible with the DMX512 and RDM protocols, featuring 5-pin XLR connectors for DMX in and out. Four buttons and a backlit LCD screen offer easy onboard operation, providing convenient visual feedback. City Theatrical includes an omni antenna, a power supply with a locking connector, and a bracket for hanging. The unit's IP50-rated construction makes it suitable for indoor use.
Details
- 2.4 GHz radio frequency
- 2400-2480 MHz range
- mDMX/mRDM for optimized data broadcast
- SHoW key security to avoid system interferences
- Forward error correction to detect issues with wireless data transmission
- Low 4 ms latency
- Adjustable output power
- 217 SHoW IDs
- Compatible with other Multiverse and SHoW DMX Neo products
- RDM proxy and responder functionality
- Auto-selection of transmit or receive modes
- Auto-selection of DMX512 termination
- Selectable timeout and brightness level
- USB firmware updates
- FCC and IC compliant
- Rugged aluminum construction
- Compact and lightweight design

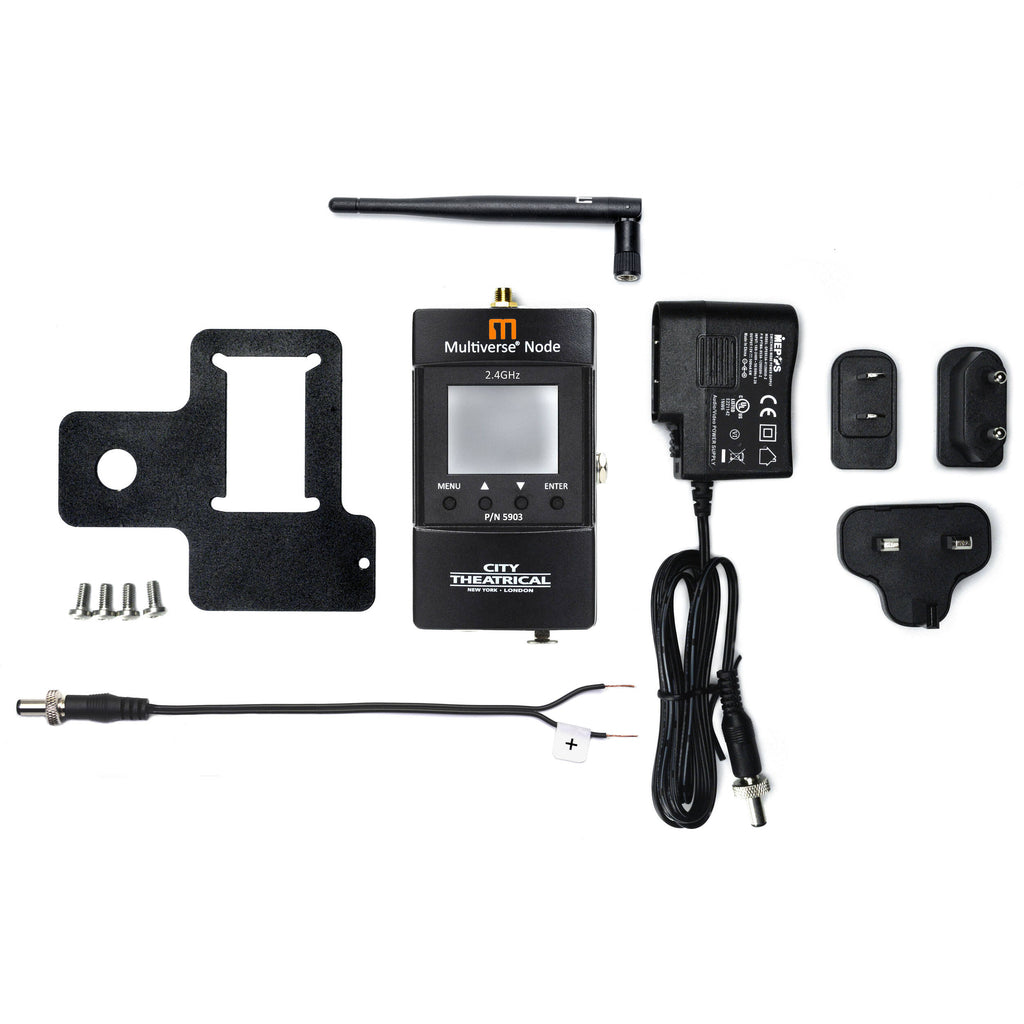

Items Included
- City Theatrical 2.4 GHz Multiverse Node (Worldwide Use)
- Mounting Bracket
- CL2 Power Supply
- Omni Antenna
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
City Theatrical Multiverse Node Specs
Key Specs
| Inputs/Outputs |
1x XLR 5-Pin (DMX) Input
1x XLR 5-Pin (DMX) Output 1x DC Barrel (Power) 1x (Antenna) 1x USB-A |
| Channels |
512 (DMX)
|
| Wireless |
2.4 GHz Radio/RF
|
| Power Source |
AC Adapter
|
| Protocol |
DMX512
|
General
| Inputs/Outputs |
1x XLR 5-Pin (DMX) Input
1x XLR 5-Pin (DMX) Output 1x DC Barrel (Power) 1x (Antenna) 1x USB-A |
| Channels |
512 (DMX)
|
| Latency |
4 ms
|
| Sensitivity |
-95 dBm
|
| Wireless |
2.4 GHz Radio/RF
|
| Frequency |
2.4 GHz
|
Power
| Power Source |
AC Adapter
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
Compatibility
| Protocol |
DMX512
|
Physical
| Operating Conditions |
32 to 104°F / 0 to 40°C
|
| Storage Conditions |
-40 to 185°F / -40 to 85°C
|
| Certifications |
FCC, IC
|
| Material of Construction |
Aluminum
|
| Dimensions |
4.0 x 2.4 x 1.4" / 102.8 x 60.0 x 36.4 mm
|
| Weight |
14 oz / 397 g
|
