Description

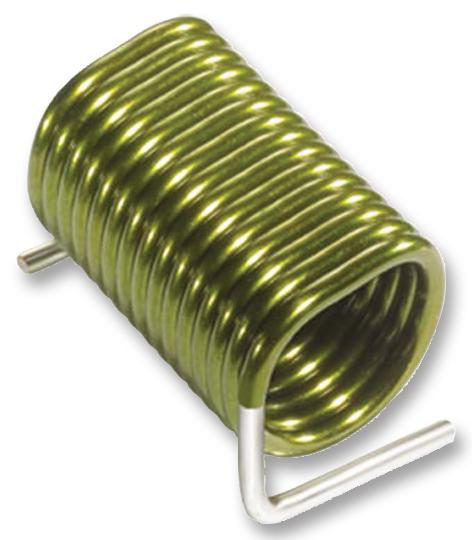

The 2929SQ series Square Air Core Inductor with tin-silver over copper termination. It features flat top and bottom for reliable pick and place and mechanical stability.
- Resistance to soldering heat
- Moisture sensitivity level 1
- PCB washing is recommended by only pure water or alcohol
- 5 to 70ppm/°C Temperature coefficient of inductance (TCL)
- 47 to 500nH Inductance range
- Up to 230 at 400MHz excellent Q factors
- Current handling as high as 5.7A
Power Management, Industrial
Other details
| Brand | COILCRAFT |
| Part Number | 2929SQ-501GEC |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
