Description
Comica Audio LinkFlex AD5 Overview
- 1Description
- 2Quality Audio with Two XLR Preamps
- 3Flexible Analog/Digital Connectivity for Your Computer and Mobile Device
- 4Two-Way Digital/Analog Transmission
- 5Dual Recording/Streaming Output Modes
- 6Dual Monitoring Mode
- 7Loopback Mode for Streaming and Podcasting
- 8Long Battery Life for Portability
By Photo's
Eric Calvi

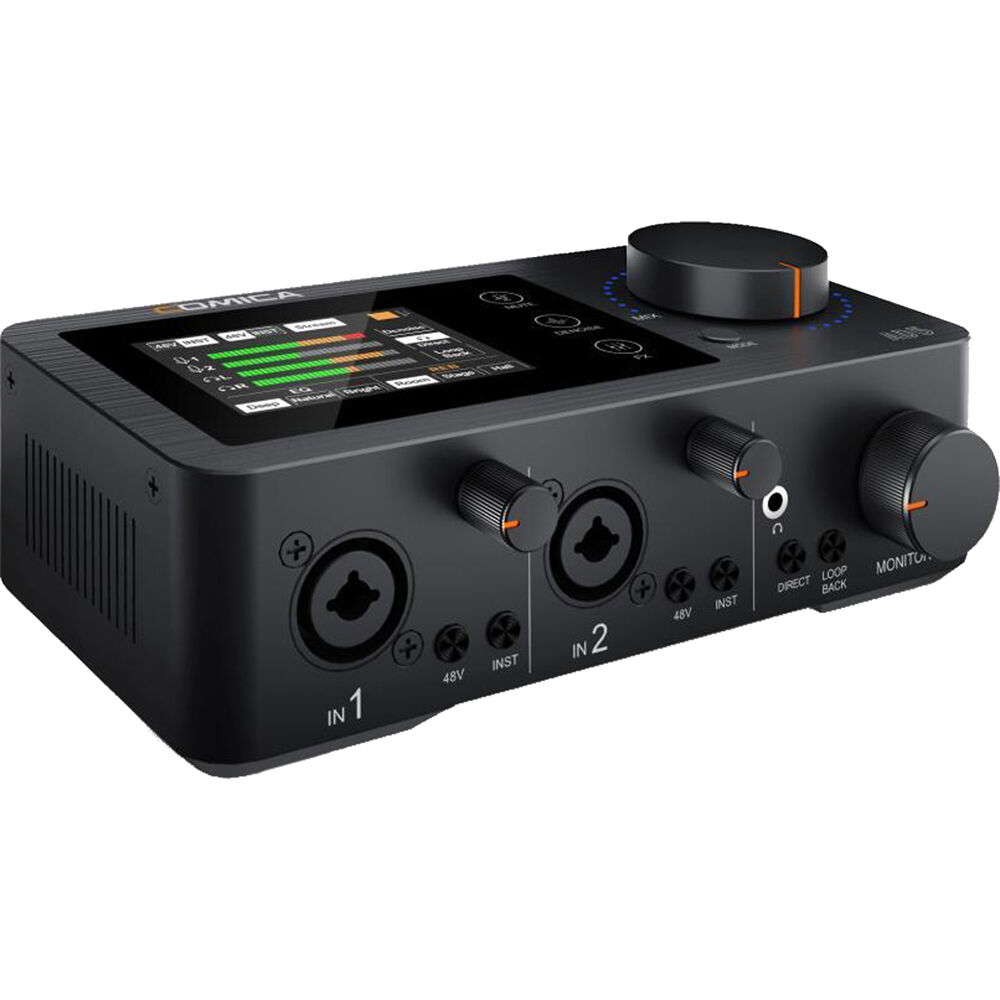

Great for musicians and creators on the go, the Comica Audio LINKFLEX AD5 is a feature-packed 4x4 audio interface that combines quality audio with flexible analog and digital connectivity, loopback function, DSP effects, and ease of use, for music recording/production, streaming, podcasting, gaming, and remote meetings. Powered either via USB or its built-in rechargeable battery, and equipped with two USB-C ports, the interface can be used either with your computer, or standalone with your smartphone/tablet, or in combination with both, offering seamless integration between your mobile device and your computer setup.
Quality Audio with Two XLR Preamps
- Two quality preamps with 115 dB high dynamic range and 65 dB of gain, so you can use any microphone, without signal boosters.
- 48 kHz / 24-bit AD/DA conversion for clear digital audio.
- Sweeten your sound with onboard DSP effects: EQ modes (Deep, Natural, Bright), Reverb modes (Room, Stage, Hall), and Noise Gate to cut unwanted room noise.
Flexible Analog/Digital Connectivity for Your Computer and Mobile Device
- Two XLR-1/4" combo jacks to connect microphones, guitars, keyboards, line-level audio devices (with 48V phantom power).
- One 3.5mm TRRS stereo jack to input audio from your mobile device.
- Two 1/4" TRS L/R balanced monitor outputs.
- One 3.5mm TRRS stereo jack to output audio to your mobile device.
- Two headphone outputs with volume control.
- Two USB-C ports for connecting two computers or mobile devices (Mac/Windows computers and iOS/Android).
Two-Way Digital/Analog Transmission
- Dual USB-C ports and dual 3.5mm TRS ports support digital/analog transmission to two computers and/or mobile devices.
Dual Recording/Streaming Output Modes
- In Recording mode, AD5 outputs stereo audio (left channel and right channel).
- In Streaming mode, AD5 outputs mono audio (both left channel).
Dual Monitoring Mode
- In Direct monitoring mode, the AD5 will route the audio signals from the mic preamps directly to the monitor outputs and headphones with zero latency.
- In Input monitoring mode, audio signals from the mic preamps will be routed to the DAW software and then to the monitor outputs and headphones with mixed audio, which will cause a delay in monitoring.
Loopback Mode for Streaming and Podcasting
- In Loopback mode you can capture audio from any phone, software, browser, game, or Zoom call and send them to your DAW.
Long Battery Life for Portability
- The built-in rechargeable battery offers 6 hours of operation. Alternately, the AD5 can also be powered via USB.
- At only 16.6 oz and featuring a small form factor, the unit is easy to carry for working on the go.
In the Box
- Comica Audio LINKFLEX AD5 Portable 4x4 Dual USB-C Audio Interface for Computer and Phone/Tablet
- USB-C to USB-C Cable
- USB-C to USB-A Cable
- 3.5mm TRRS to TRRS Cable
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Quality Audio with Two XLR Preamps
- Flexible Analog/Digital Connectivity for Your Computer and Mobile Device
- Two-Way Digital/Analog Transmission
- Dual Recording/Streaming Output Modes
- Dual Monitoring Mode
- Loopback Mode for Streaming and Podcasting
- Long Battery Life for Portability
Comica Audio LinkFlex AD5 Specs
| Form Factor | Desktop |
| Display | 1 x Color LCD |
| Channels of I/O | Analog / Digital: 4 Inputs / 4 Outputs |
| Built-In DSP | None |
| Maximum Sampling Rate | 48 kHz / 24-Bit |
| Number of Microphone Preamps | 2 Preamps |
| Built-In Microphone | None |
| Input Level Adjustment | Knob |
| Expansion Slots | None |
Signal Processing
| Pad | None |
| Gain/Trim Range | 65 dB |
Connectivity
| Analog Audio I/O | 2 x Combo XLR-1/4" TRS Balanced Mic/Line/Hi-Z Input 1 x 1/8" / 3.5 mm TRRS Line Input 2 x 1/4" TRS Balanced Line Output |
| Phantom Power | 48 V, Selectable On/Off |
| Digital Audio I/O | None |
| Host Connection / USB | 2 x USB-C (on Interface) |
| Host Connection Protocol | None |
| USB (Non-Host) | None |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | None |
Performance
| Dynamic Range | 115 dB |
Digital Audio
| Bit Depths | 24-Bit |
Audio Storage & Playback
| Memory Card Slot | None |
Compatibility
| OS Compatibility | macOS Windows iOS Android *As of October, 2022: Check with manufacturer for the most up-to-date compatibility |
| Included Software | None |
Power
| Power Requirements | Built-In Rechargeable Battery, USB Bus Power |
| Current Consumption | 2 A |
| Battery Type | 1 x Internal Rechargeable |
| Internal Battery | Rechargeable Lithium-Ion Polymer (LiPo) |
| Approximate Battery Life | 6 Hours |
Physical
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Dimensions | 6.7 x 3.3 x 2.4" / 17 x 8.5 x 6.1 cm |
| Weight | 16.6 oz / 470.0 g |
Packaging Info
| Package Weight | 1.74 lb |
| Box Dimensions (LxWxH) | 8.6 x 7.1 x 3.1" |
