Description

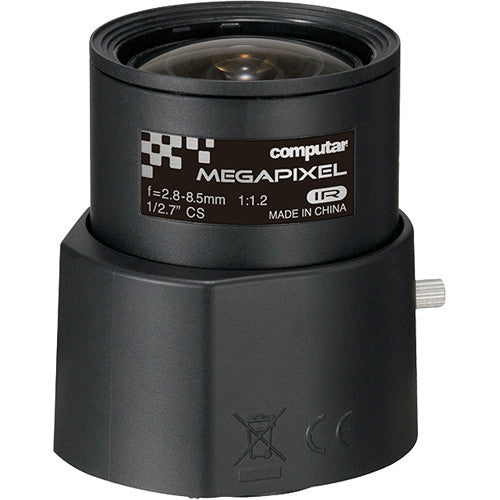

The CS-Mount 5MP Day/Night 2.8-8.5mm f/1.2 Auto-Iris DC-Drive Lens from computar is compatible with the 1/2.7" type 5MP cameras. It captures images in a 3.2 x 5.8mm (Ø6.6mm) format, and it features manual focus and DC auto-iris control. The lens uses a CS-mount for mounting to your camera.
- Full HD format
- Precise focus adjustment
- IR-corrected optics
| Imager Size | 1/2.7" |
| Maximum Aperture Ratio | 1:1.2 |
| Mount Type | CS-mount |
| Focal Length | 2.8 to 8.5mm |
| Aperture | f/1.2 |
| Image Format | 3.2 x 5.8 mm (Ø6.6 mm) |
| Operation Range | Iris: F1.2 - F360C Focus: 1.7'/ 0.5 m to infinity Zoom: 2.8 to 8.5mm |
| Control | Iris: DC auto iris Focus: Manual Zoom: Manual |
| Angle of View | 1/2.7" Type D: 150.4 to 47.1° H: 124.7 to 41.3° V: 63.9 to 22.7° 1/3" Type D: 130.4 to 42.8° H: 99.1 to 34.1° V: 72.3 to 25.6° 1/4" Type D: 92.1 to 32.0° H: 72.3 to 25.6° V: 53.5 to 19.1° |
| Effective Lens Aperture | Front: Ø24.8mm Rear: Ø8.4mm |
| Back Focal Length | Tele: 7.3mm Wide: 7.3mm |
| Flange Back Length | 12.5mm |
| Coil | Drive: 190 Ohms at 68°F / 20°C Control: 1310 Ohms at 68°F / 20°C |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Dimensions | 1.6 x 1.9 x 2.3" / 40 x 49 x 59 mm |
| Weight | 2.4 oz / 67 g |
In the Box
computar CS-Mount 5MP Day/Night 2.8-8.5mm f/1.2 Auto-Iris DC-Drive Lens
- Limited 3-Year Warranty
