Description
Cre8audio Function Junction Overview
- 1Description
- 2ADSR / Envelope
- 3Function Generator
- 4Dual LFO
- 53-Channel Attenuverting Mixer with + OR Circuit

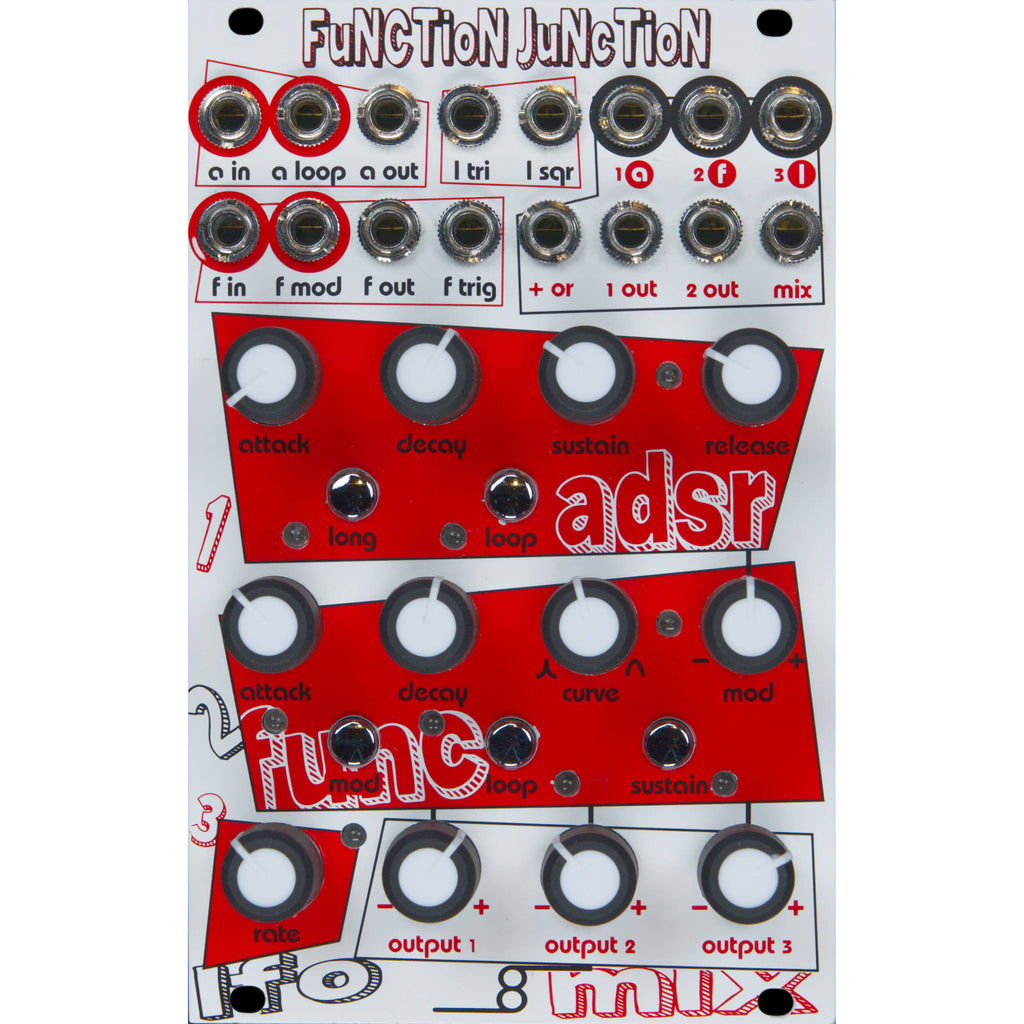

Music producers, sound designers, and analog synthesizer enthusiasts looking for a many-in-one function generator with tons of features at an affordable price will rejoice over the Cre8audio Function Junction, a 16 HP analog Eurorack module with a dedicated ADSR, function generator, LFO, and mixer section.
Function Junction was designed in partnership with Pittsburg Modular Synthesizers, who created an all-in-one multifunction module comprised of several functions and controls that when patched together can create basic or complex utilities. Unlike traditional function generators with their abstract nature, the Function Junction employs a clearly designed layout with each function separated into dedicated utility types with controls familiar to the user. The magic in the module is that each of its sections stands strongly on its own, but can also be easily used together with the other sections to create interesting and complex functions.
- Fully analog Pittsburgh Modular Synthesizers developed 4-stage ADSR circuit with independent attack, decay, sustain, and Release controls
- Loop capability for envelope cycling. The Sustain knob and Release knob are used to adjust the time it takes to loop. Looping can be toggled on and off with button press or via gate
- Function Generator can be used as an envelope generator, a voltage-controlled LFO, a slew generator, a gate signal delay, envelope follower, clock source, voltage-controlled clock divider, complex modulation source, and more
- Modulation input can modulate attack, decay, or both.
- Loop mode
- Mixer can be split into three independent attenuverters, one two-channel mixer and one attenuverter, or a three-channel mixer
- When not being used as a mixer, each channel is normaled to one of the other functions of the module�ADSR, function generator, or LFO, enabling both an additional output for each section as well as a dedicated attenuverter for each.
- + OR circuit�outputs the current highest voltage value of any of the voltages output by the mixer
In the Box
- Cre8audio Function Junction ADSR, Function Generator, LFO, and Mixer Eurorack Module (16 HP)
- Limited 1-Year Manufacturer Warranty
- Description
- ADSR / Envelope
- Function Generator
- Dual LFO
- 3-Channel Attenuverting Mixer with + OR Circuit
Cre8audio Function Junction Specs
| Size | 16 HP |
| Weight | Not Specified by Manufacturer |
| Package Weight | 0.615 lb |
| Box Dimensions (LxWxH) | 8.2 x 4.6 x 2.4" |
