Description

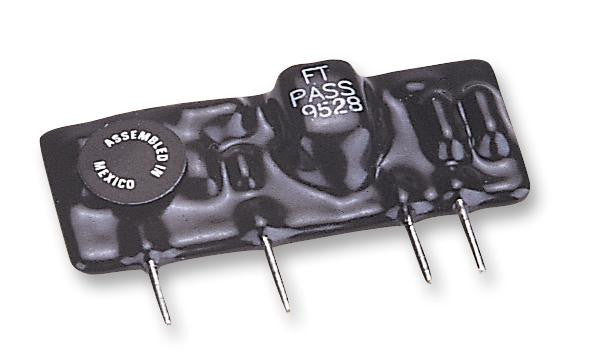

The DMO063 is a 1-phase Mini-SIP Solid State Relay with thermally conductive epoxy encapsulation. This DMO-series PCB mount relay has SPST-NO contact, DC switch mode and through hole terminals.
- DC control
- MOSFET Output
- 0.4 Maximum on-state voltage drop
- 2500Vrms Dielectric strength
- 270R Nominal input impedance
- 50�s Turn-on and 300�s turn-off maximum time
- -30 to 80�C Ambient operating temperature range
Applications
Industrial
Warnings
Disconnect all power before installing or working with this equipment. Risk of material damage and hot enclosure.
Product details
| Relay Mounting | PCB |
| Control Voltage Max | 10VDC |
| Load Current | 3A |
| Control Voltage Min | 3VDC |
| Product Range | DMO Series |
| Relay Terminals | Through Hole |
| Operating Voltage Min | 0VDC |
| Switching Mode | DC Switch |
| Contact Configuration | SPST-NO |
| Operating Voltage Max | 60VDC |
Other details
| Brand | CRYDOM |
| Part Number | DMO063 |
| Quantity | Each |
| Technical Data Sheet EN |  |
