CyberPower BP144VL2U01 Extended Battery Module

Extend Battery Runtime During Outages

For Select CyberPower Smart App Devices

Sealed Lead-Acid 12V/9Ah Batteries

Output: 144V/55A

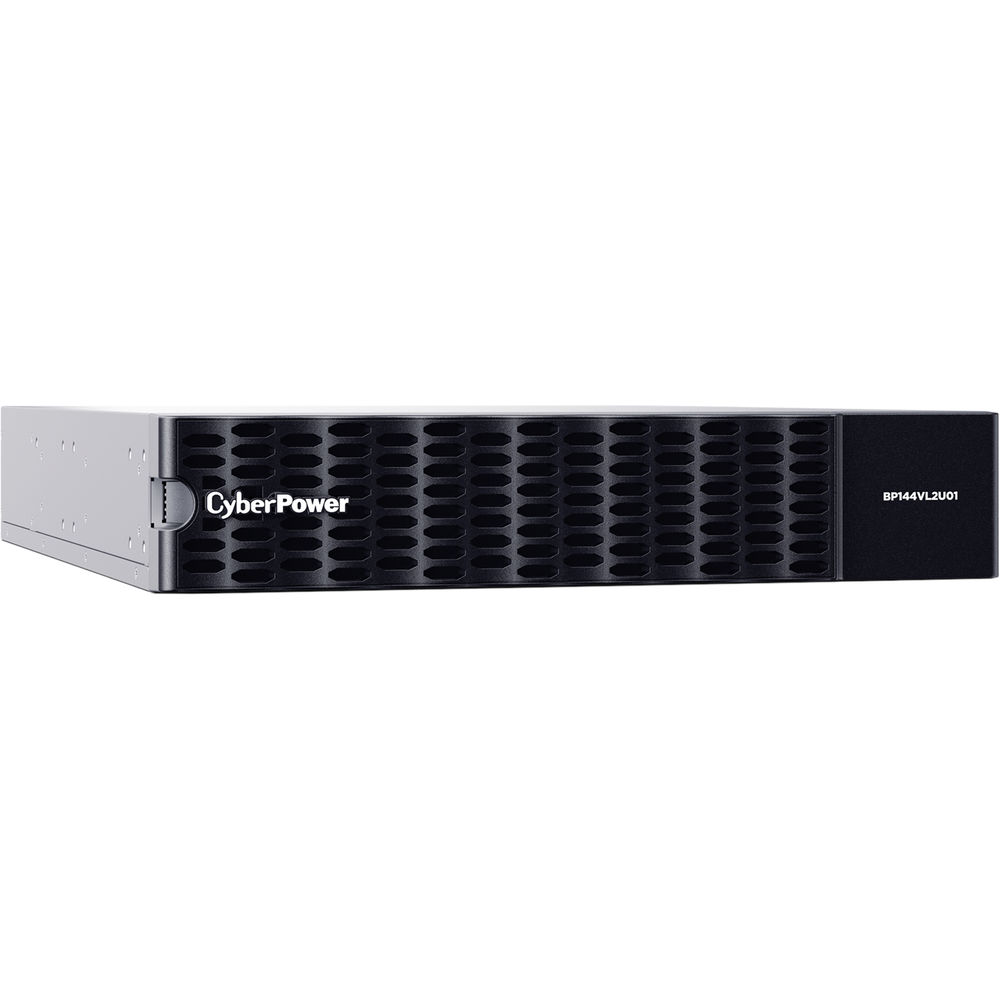

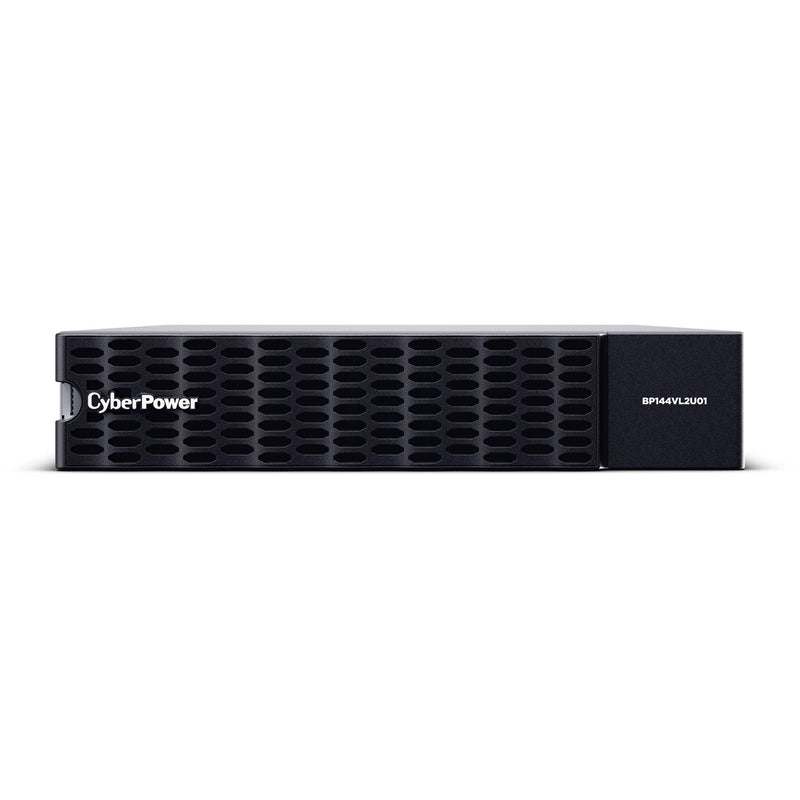

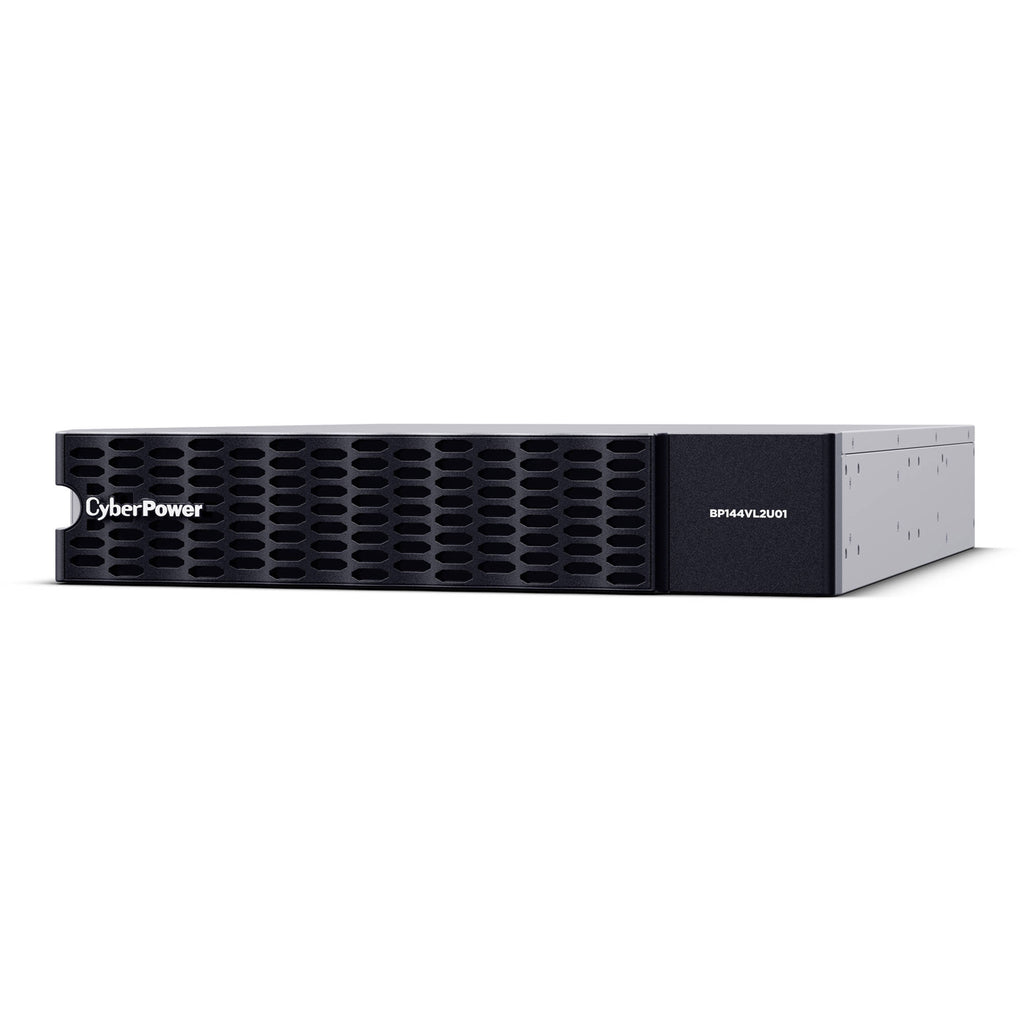

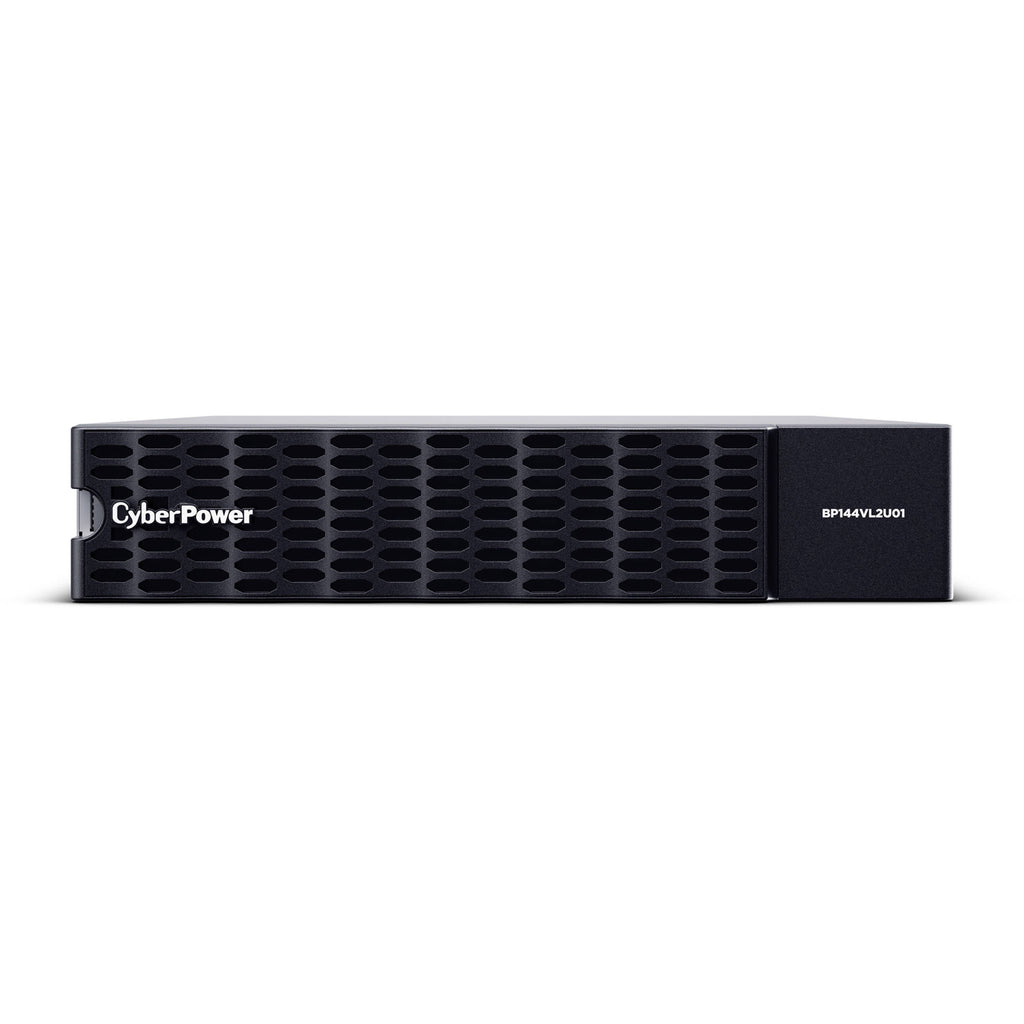

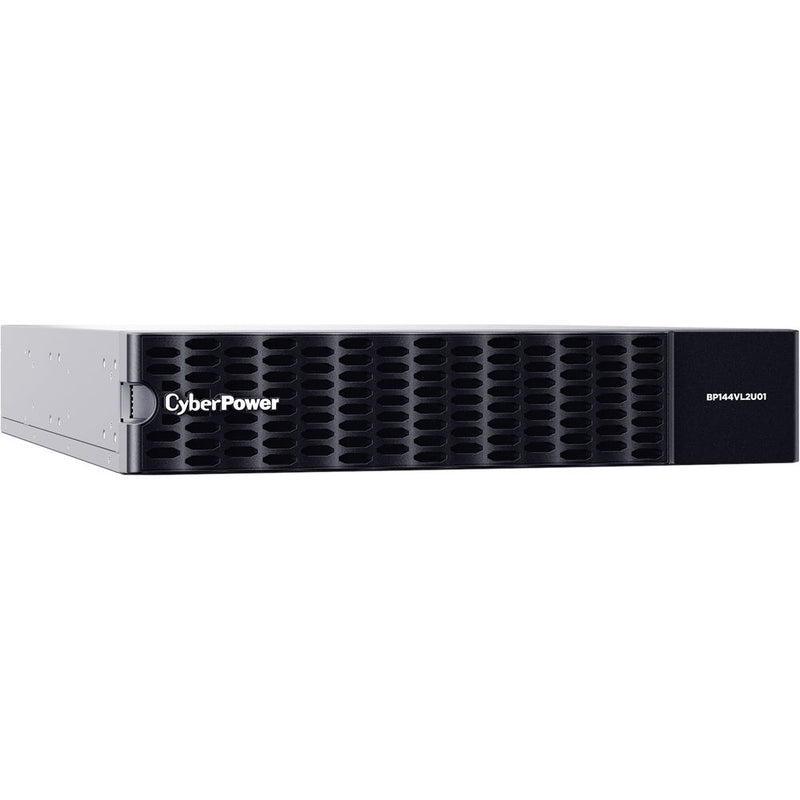

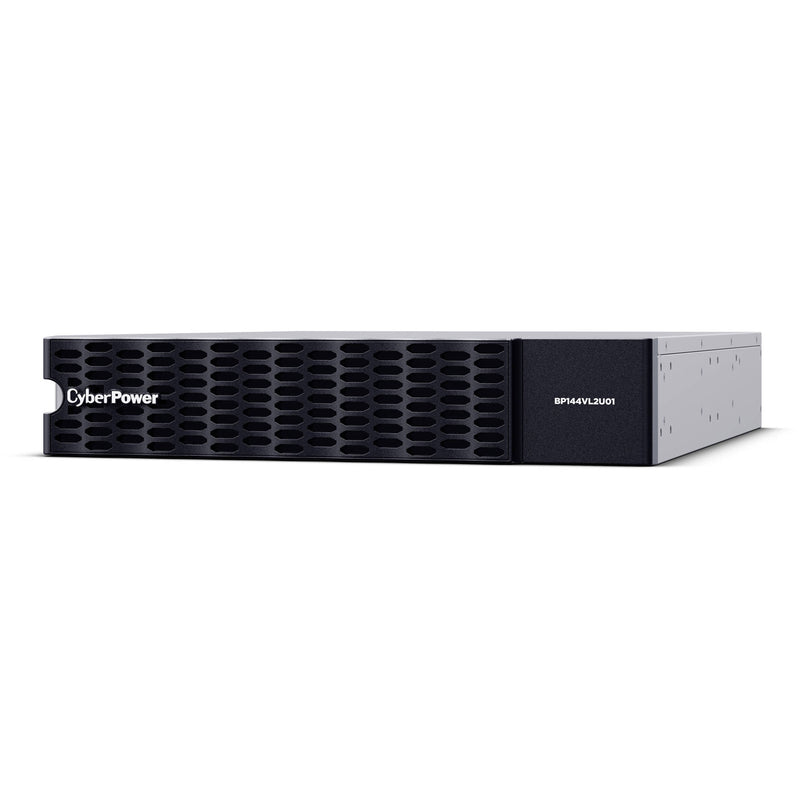

The BP144VL2U01 Extended Battery Module from CyberPower will extend the battery life of their OL5KRTHD and OL6KRTHD Smart App Online UPS systems during power outages. This battery module features a hot-swappable and user-replaceable battery pack consisting of twelve 12V/9Ah sealed lead-acid cells with a typical recharge time of 4 hours. Although it has a 2 RU form factor, this module can also be installed in a tower configuration. It also has a built-in battery charger, providing Fast Charge Technology to quickly restore the backup power supply to full capacity. Additionally, up to ten EBMs can be added to the UPS, and the module's DC plug-and-play power connectors allow for daisy chaining additional EBMs to a UPS system.

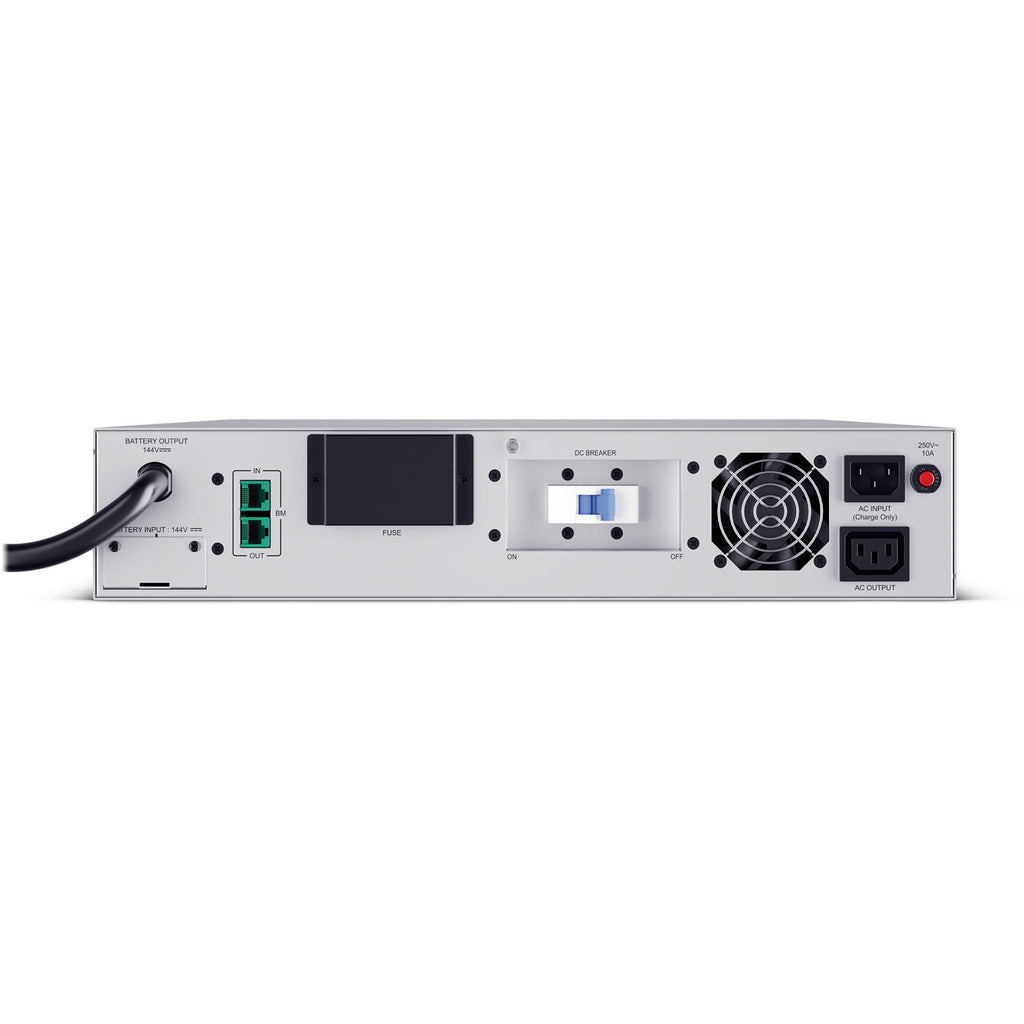

General Features Extended Battery Module (EBM) Extends runtime by adding up to 10 EBMs. Battery Equalization Technology Battery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life. Fast Charge Technology Allows UPS batteries to return to full capacity more rapidly by utilizing a built-in charger. Restores charge from 0-90% within four hours regardless of the number of EBMs. Smart Battery Management Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process. Hot-Swappable Batteries Keeps equipment running by eliminating downtime during UPS power maintenance. Plug-and-Play DC Connectors Allow for daisy-chaining additional EBMs to a UPS system. Replaceable DC Fuses Replaceable DC fuses are located behind an easy-access panel. Resettable AC Circuit Breaker Resets the UPS swiftly in case of an overload. Rack/Tower Configuration Allows for horizontal rack or vertical tower installation. Limited 3-Year Warranty A limited 3-year warranty gives you peace of mind knowing that CyberPower will repair or replace a defective UPS system, including batteries, within three years of the purchase date. UPC: 649532621866

Battery Capacity	81 VAh
Chemistry	Lead-Acid
Maximum Current	55 A
Output Voltage	144 VDC
Charging Time	4 Hours

Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	0 to 90%
Storage Temperature	-4 to 113°F / -20 to 45°C
Storage Humidity	0 to 95%
Operating Altitude	0 to 10,000' / 0.00 to 3048 m
Storage Altitude	0 to 50,000' / 0.00 to 15,240 m
Certifications	FCC, RoHS, UL, as per Manufacturer

Rack Form Factor	2 RU
Dimensions	28.3 x 17 x 3.4" / 71.88 x 43.18 x 8.64 cm
Weight	96.8 lb / 43.91 kg
Warranty Length	Limited 3-Year Warranty
