- 750VA/450W Simulated Sine Wave UPS
- Standby Topology
- Energy-Conserving ECO Technology
- GreenPower UPS Technology
- ENERGY STAR Qualified
- Full-Time Surge Protection
- Integrated Battery Backup
- 12xOutlets / USB Port / RJ11 Protection
- EMI / RFI Filters
- PowerPanel Personal Edition

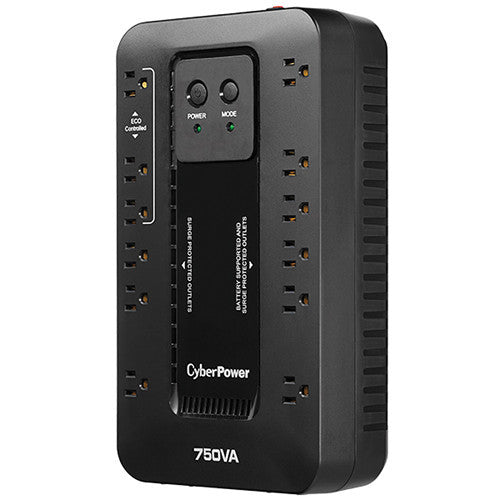

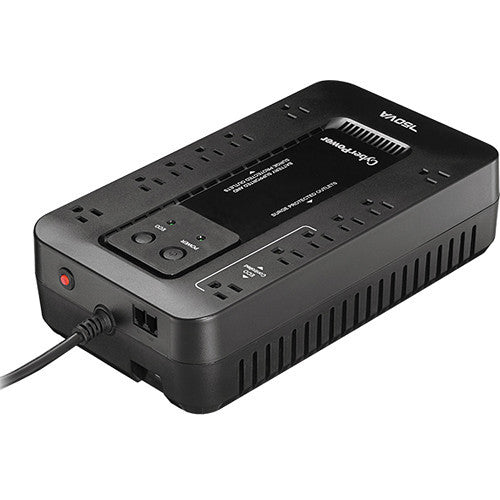

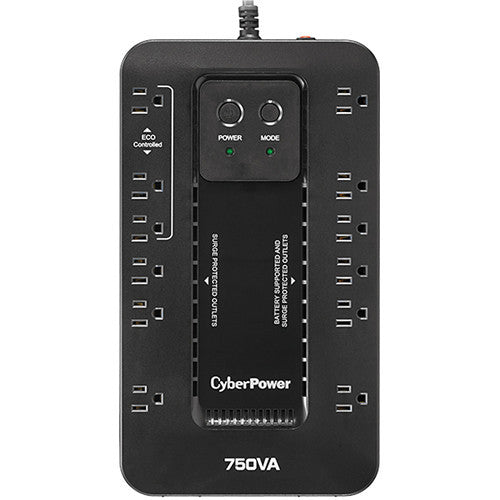

The EC750G Ecologic Series Uninterruptible Power Supply from CyberPower comes equipped with twelve electrical outlets. Three of these outlets are eco controlled outlets designed to conserve energy by cutting power to USB connected peripherals when that computer is in sleep mode. This UPS also comes equipped with six battery- and surge-protected outlets and six surge-only protected outlets, providing both surge protection and battery backup in the case of a power interruption.
The included sealed lead-acid battery comes with a typical recharge time of 8 hours and is capable of an 8.8 minute run time at 225W and 1.7 minutes at 450W. The integrated surge protected outlets are capable of absorbing up to 526 Joules keeping your attached electrical devices safe from harmful spikes in electrical current. Also included with this UPS is CyberPower's own PowerPanel Personal Edition software. When this software is used with a compatible Windows-based PC, you can instruct the PowerPanel software to save open files, set the machine to hibernate mode, and eventually safely shut down the PC when the backup battery is depleted.
- ECO Mode
- The user selectable ECO mode removes power to computer peripherals connected to the ECO designated outlets when the UPS detects the computer, connected to the UPS via USB, is turned off or in sleep mode. This results in additional cost savings by eliminating the power consumption of idle devices.
- Energy-Saving Technology
- This ENERGY STAR qualified UPS system utilizes CyberPower's own patented GreenPower UPS High Efficiency design to reduce power consumption by increasing power efficiency to greater than 98% to save costs and reduce emissions.
- Ultra-Quiet Operation
- This uninterruptable power supply comes with reduced sound emissions.
- EMI/RFI Filters
- Shielding against electromagnetic interference and radio frequency signals prevents line noise ("humming") over telephone lines or audio systems.
- Transformer-Spaced Outlets
- Widely-spaced outlets accommodate large transformer-based plugs without compromising the utility of other outlets.
- USB Connectivity
- The integrated HID compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux and Mac OS.
- Convenient Mounting
- Compact size for mounting horizontal or vertical.
- LED Indicators
- LED status lights indicate Power-On and ECO on/off.
- Audible Alarms
- Distinctive tones identify when the unit is running on battery power, if it is overloaded or when the battery is low.
- Resettable Circuit Breaker
- The user may use this convenient unit reset switch in case of an overload.
- PowerPanel Personal Edition
- In the event of a power outage, PowerPanel Personal Edition saves open files and "hibernates" the PC to increase the run-time on the UPS unit. PowerPanel is easily installed on any Windows-based PC and uses minimal system resources. Diagnostic screens display the status of the UPS, including silent operation mode, configurable system notifications, automatic self tests, adjustable high/low voltage warnings, event/data logging and scheduled shutdowns.
- Windows Compatibility
- The included PowerPanel power management software has been fully tested and is compatible with Windows 8 32/64, Windows 7 32/64, Vista 32/64, XP 32/64, 2000, 2003, Server 2008, and Server 2012.
UPC: 649532607587
In the Box
CyberPower EC750G Ecologic Series Uninterruptible Power Supply
- Limited 3-Year Manufacturer Warranty
| General |
| UPS Topology | Standby |
| Energy Saving | GreenPower UPS High Efficiency |
| ENERGY STAR Qualified | Yes |
| Input |
| Voltage | 96 V AC - 140 V AC |
| Frequency | 47 Hz - 63 Hz |
| Plug Type | NEMA 5-15 P |
| Plug Style | Right angle - 45 degree offset |
| Cord Length | 5' / 1.52 m |
| Output |
| VA | 750 |
| Watts | 450 |
| On Battery Voltage | 120 V AC � 5% |
| On Battery Frequency | 50/60 Hz � 1% (auto-sensing) |
| On Battery Waveform | Simulated Sine Wave |
| Outlet Type | NEMA 5-15 R |
| Total Outlets | 12 |
| Eco Controlled Outlets | 3 |
| Battery and Surge Protected Outlets | 6 |
| Surge-Only Protected Outlets | 6 |
| Widely Spaced Outlets | 4 |
| Overload Protection | Internal circuitry limiting / circuit breaker |
| Transfer Time | 4 ms |
| Battery |
| Runtime | 8.8 min (225 W)
1.7 min (450 W) |
| Runtime at Half Load | 8 min |
| Runtime at Full Load | 1 min |
| Battery Type | Sealed lead-acid |
| Typical Recharge Time | 8 hours |
| Management and Communications |
| HID Compliant USB Port | Yes |
| Management Cable | USB cable |
| LED Indicators | Power On, ECO on/off |
| Audible Alarm | Battery Mode, Battery Low, Overload, UPS Fault, Replace Battery |
| Software | PowerPanel Personal Edition |
| Environmental |
| Operating Temperature | 32 to 104�F / 0 to 40�C |
| Operating Humidity | 0 to 90% non-condensing |
| Operating Elevation | 0 to 10000 feet / 0 to 3000 meters |
| Storage Temperature | 5 to 113�F / -15 to 45�C |
| Storage Relative Humidity | 0 to 95% non-condensing |
| Storage Elevation | 0 to 50000 feet / 0 to 15000 meters |
| Certifications |
| Safety | UL1778, cUL 107.3, FCC DOC Class B |
| Environmental | RoHS compliant |
| Warranty |
| Connected Equipment Guarantee | Lifetime |
| CEG Amount | $100,000 |
| Physical |
| Form Factor | Compact |
| Keyhole Mounting Slots | Yes |
| Dimensions (WxHxD) | 12.2 x 3.1 x 7.0" / 31.0 x 7.9 x 17.8 cm |
| Weight | 7.7 lb / 3.5 kg |
| Packaging Info |
| Package Weight | 8.5 lb |
| Box Dimensions (LxWxH) | 15.0 x 10.0 x 4.5" |
