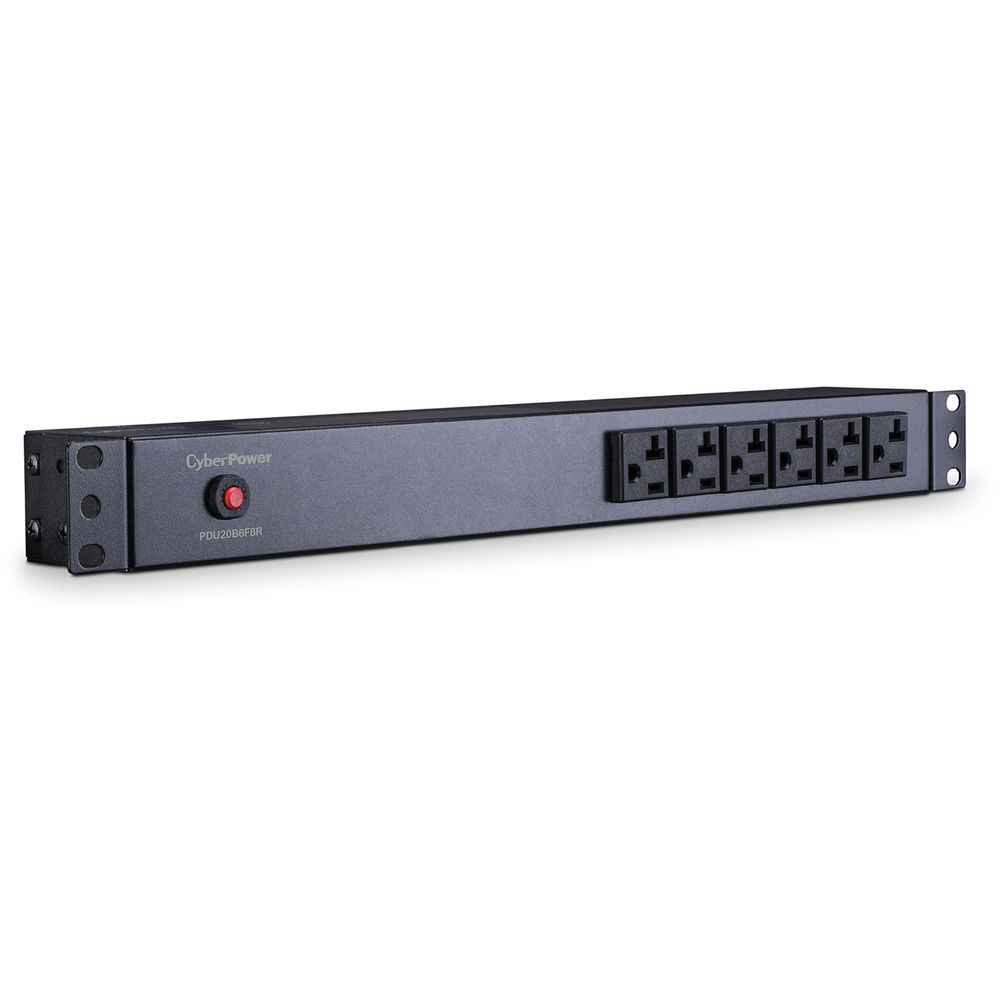

CyberPower PDU20B6F8R Overview
Designed for data centers and other electrically demanding applications, the PDU20B6F8R 14-Outlet Basic PDU from CyberPower provides an output of 100-125V at 20A (derated to 16A). It distributes that power to 14 NEMA 5-15R outlets (6 front, 8 rear) from a single 15' NEMA 5-20P plug with unfiltered electrical passthrough. The PDU20B6F8R has a rugged, industrial-grade metal housing and can be mounted either horizontally or vertically. It is ETL/RoHS certified and includes a cord retention tray, a screw kit, a cord clip kit, horizontal mounting brackets, and vertical mounting brackets. Protection is provided by a limited lifetime warranty that covers defects in materials and workmanship under normal use and conditions.
The PDU20B6F8R delivers AC power to servers, equipment, and connected devices via a power distribution unit.
The switch-free design helps safeguard against accidental power shutdowns.
Network-Grade Plugs and Outlets
Highly durable construction helps ensure the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
The 15' power cord reaches distant power sources, allowing the PDU to be placed where it's needed.
The cord retention tray secures power cords, keeping them organized and accessible. It also helps the cords stay plugged in.
Configurable Mounting Brackets
Configurable mounting brackets allow for installation of the PDU in the following configurations: 0 RU (vertical, under counter, and wall mount), 1 RU (horizontal, vertical, under counter, and wall mount), and 2 RU (horizontal and wall mount).
The durable metal housing helps protect the internal components and resists damage from impact or abrasions within challenging industrial environments. It also extends the life of the product.
Limited Lifetime Warranty
Covers defects in materials and workmanship in the product under normal use and conditions.
In the Box
- CyberPower PDU20B6F8R 14-Outlet Basic PDU
- Cord Retention Tray
- Screw Kit
- Cord Clip Kit
- Horizontal Mounting Brackets
- Vertical Mounting Brackets
- Limited Lifetime Warranty
CyberPower PDU20B6F8R Specs
Connections
| Outlets |

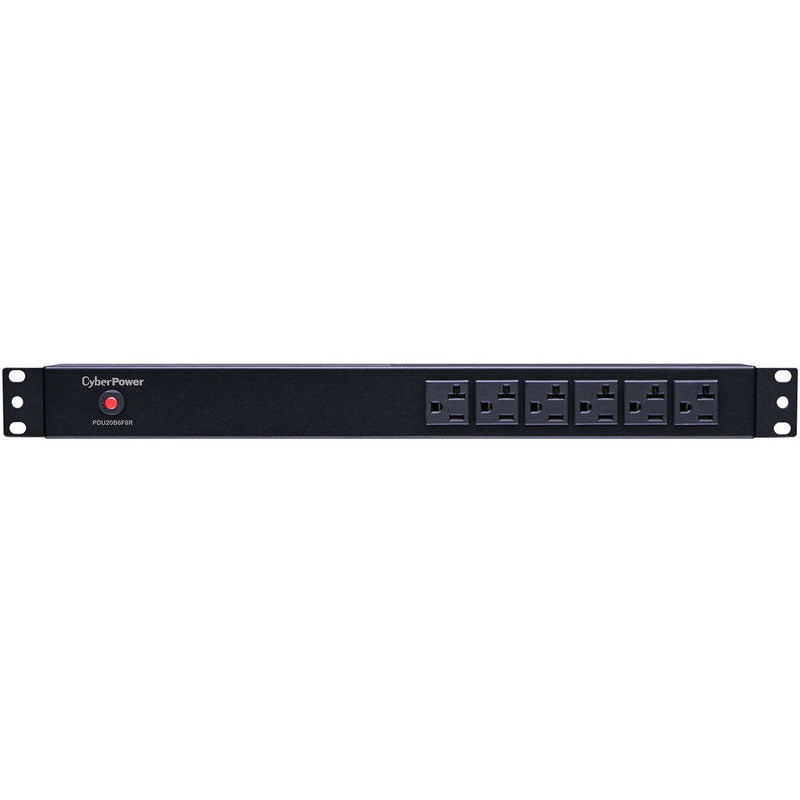

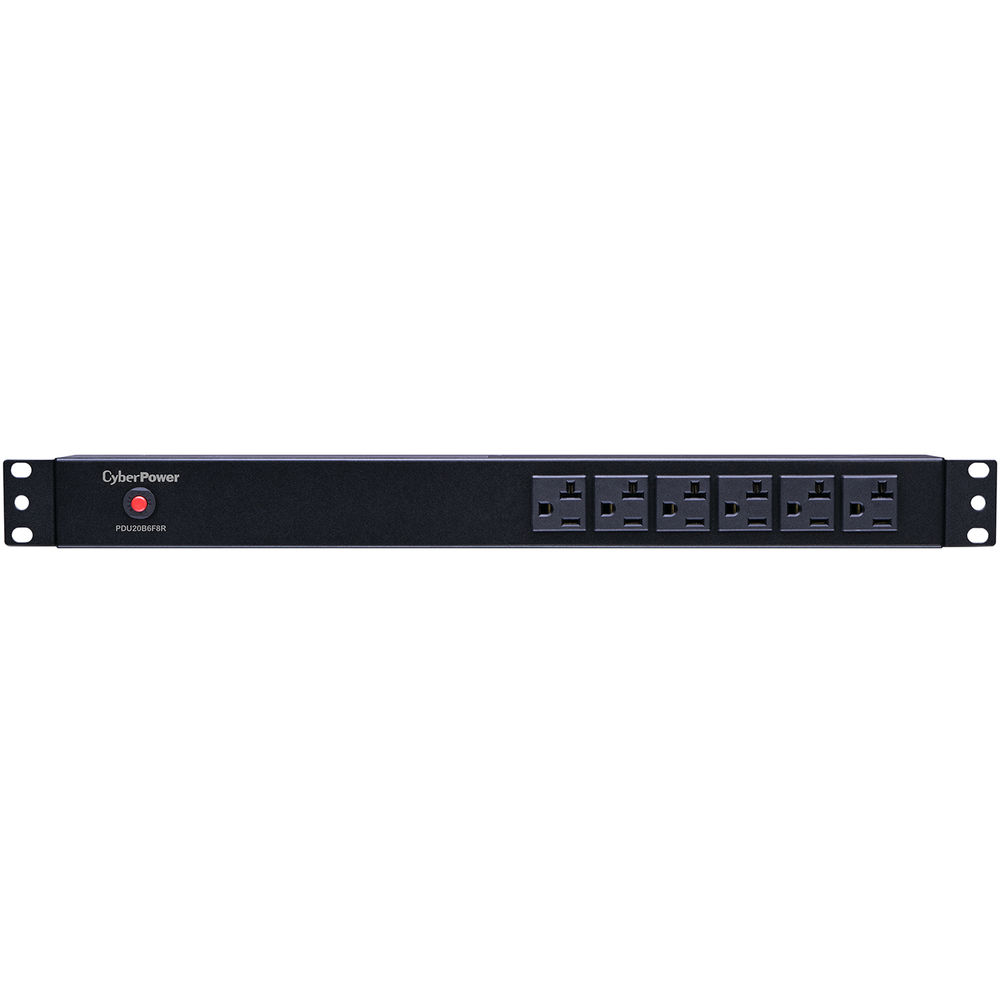

6 x NEMA 5-20R (Front Panel)

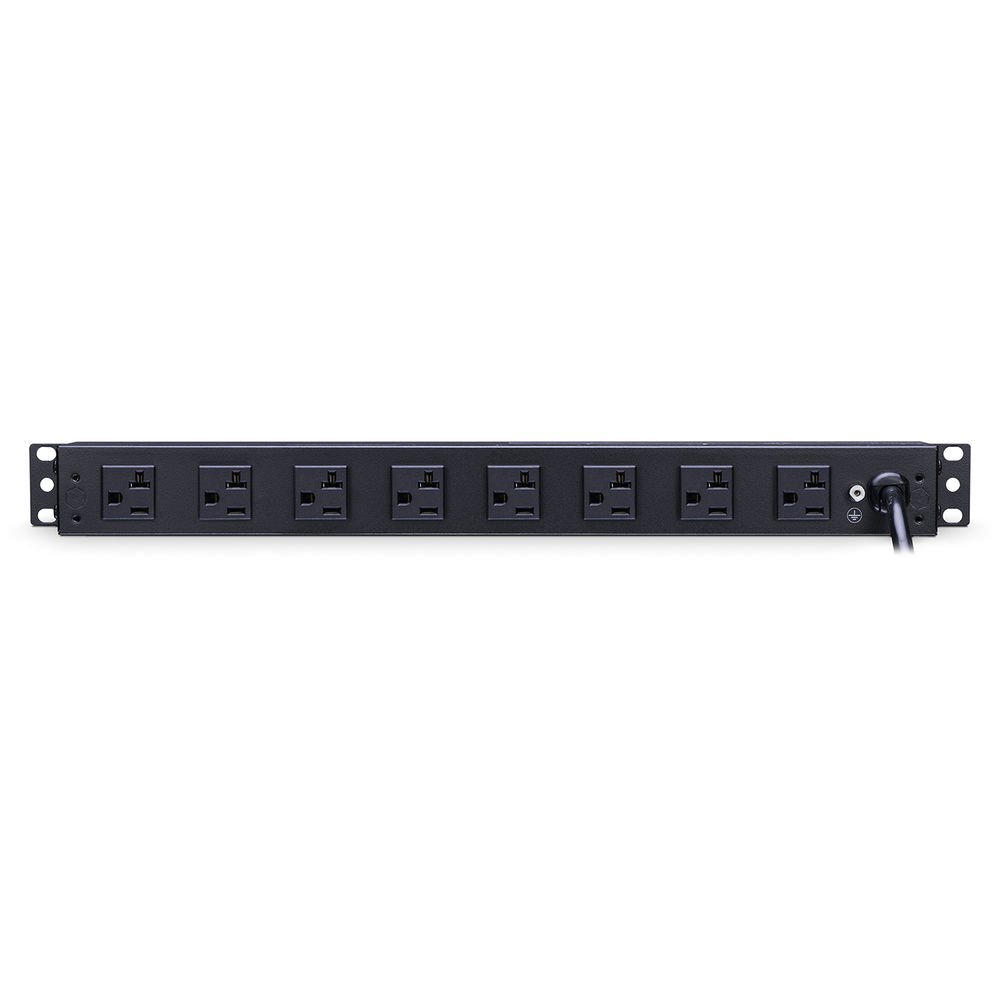

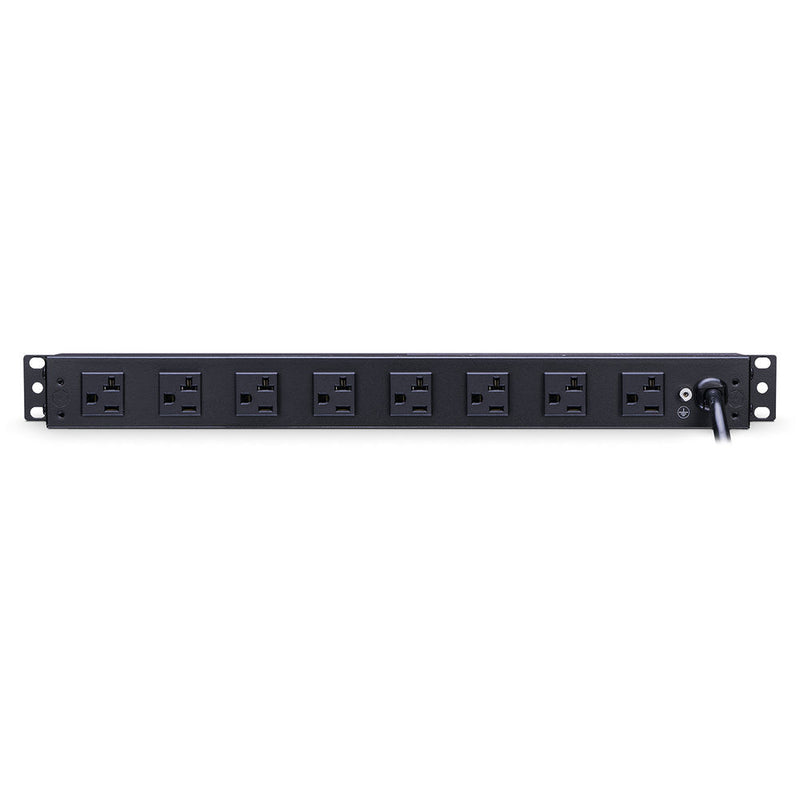

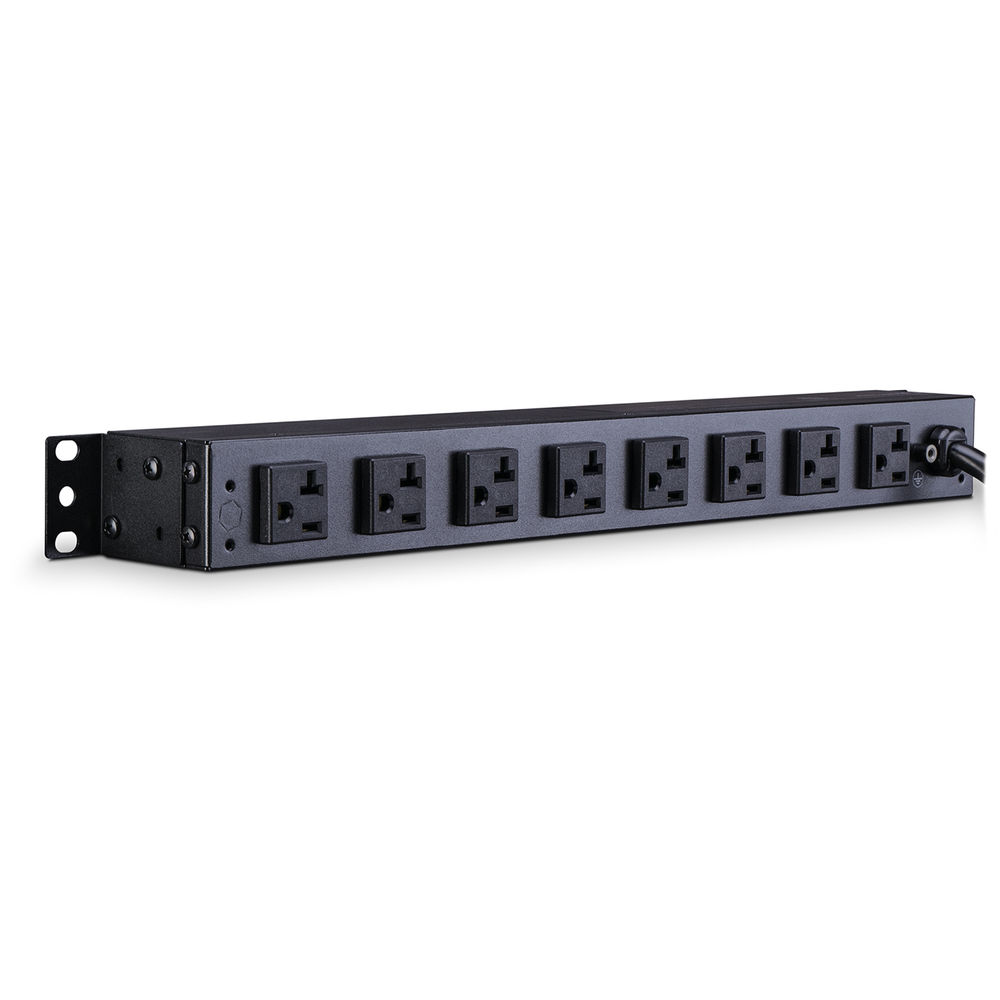

8 x NEMA 5-20R (Rear Panel) |
| Wall Plug Type |
NEMA 5-20P (Straight) |
| USB Ports |
None |
| Ethernet |
None |
| Coaxial |
None |
| RJ11 |
None |
Electrical
| AC Input Power |
100 to 125 VAC, 50 / 60 Hz |
| Rated Current |
20 A |
| Circuit Breaker |
Yes, at 20 A with Push-Button Reset |
Environmental
| Certifications |
CSA, ETL, RoHS, UL
*as per Manufacturer |
| Operating Temperature |
32 to 95°F / 0 to 35°C |
| Operating Humidity |
0 to 95% (Non-Condensing) |
| Storage Temperature |
5 to 113°F / -15 to 45°C |
Physical
| Cable Length |
15' / 4.6 m |
| Material of Construction |
Metal |
| Cable Management |
Yes |
| Dimensions |
17.5 x 2.25 x 1.75" / 44.5 x 5.71 x 4.45 cm |
| Weight |
4.6 lb / 2.1 kg |
