CyberPower PDU33105 Overview
Receive real-time tracking of your system with the PDU33105 Monitored PDU Series from CyberPower. Ideal for data centers and network closets, the PDU33105 offers you massive connectivity that maintains electrical power while actively checking for inconsistencies.

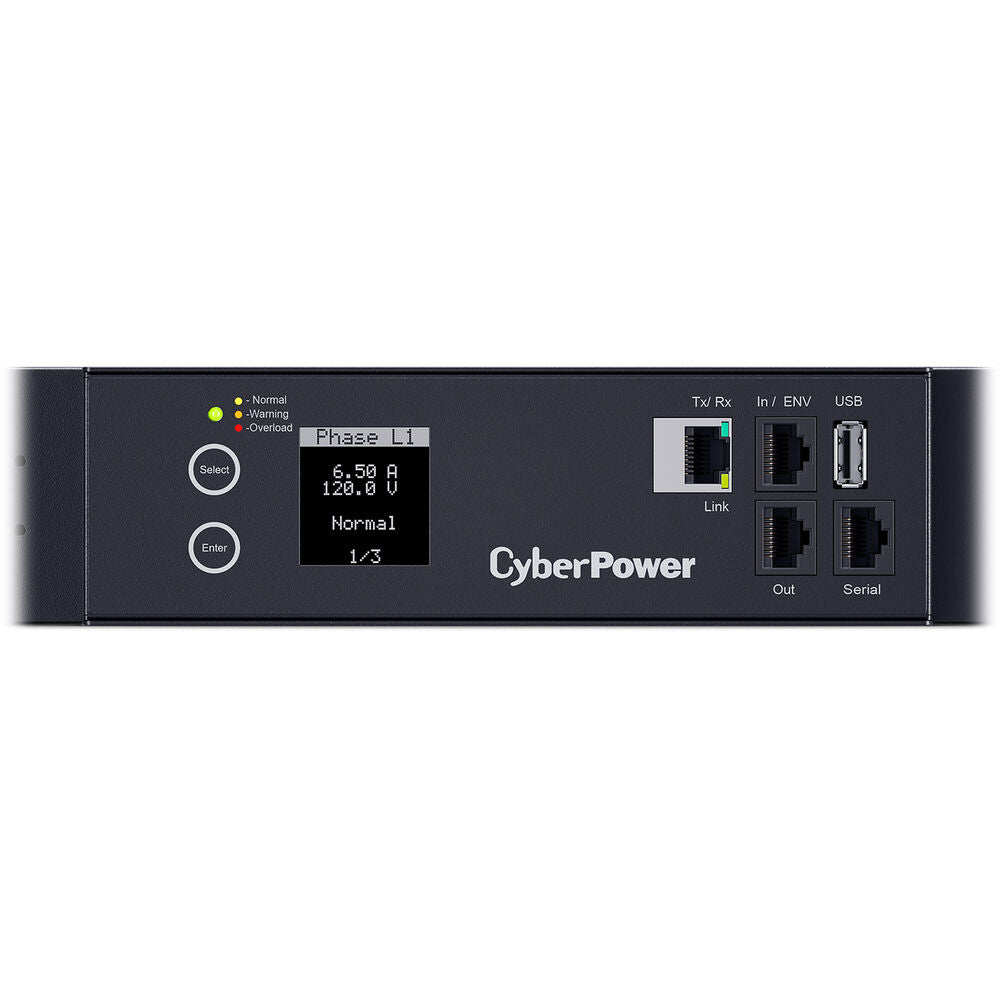

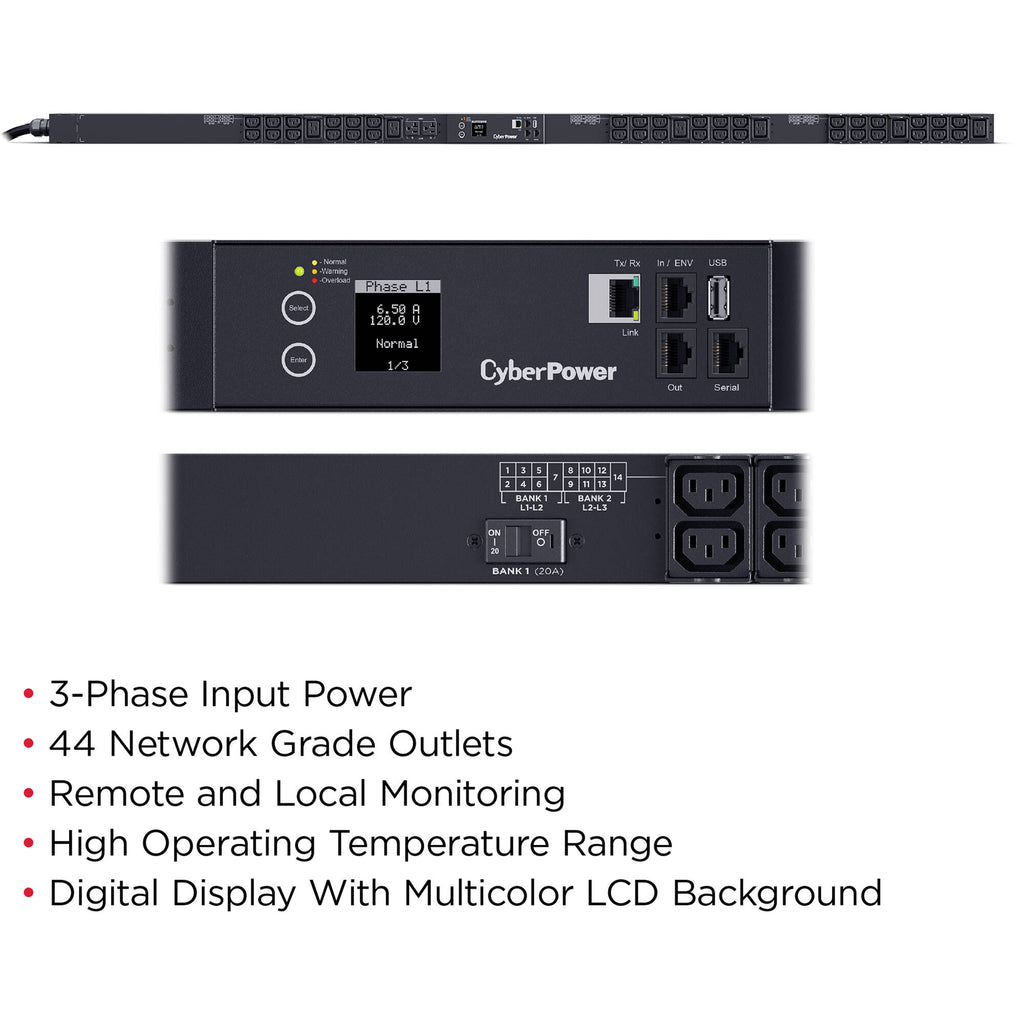

The PDU33105 is based off of a three-phase design offering 30A max input current and 120 to 208 VAC output voltage across 44 outlets, you can ensure that your connected devices receive ample power. With the onboard RJ45 Ethernet port, you can monitor the PDU33105 and receive emails, text messages, and SNMP traps that provide you with notifications in real time. A multicolor LCD display also feeds you information and turns red when an alert is active. CyberPower Management Console provides enhanced functionality that includes the ability to switch PDU outlets on and off, reboot connected equipment, schedule power cycling of attached equipment, and provide load monitoring and event logging, giving you full control over your system. You can upgrade the firmware of the device to ensure you get the latest updates to maintain proper operation. Additionally, the PDU33105 is OU rackmount compatible, allowing you to fit and fix the item within cabinets.
The PDU33105 has a high operation temperature range, enabling it to achieve consistent performance in rooms up to 140°F
Switch-free design prevents accidental power shutdowns, keeping your system reliable and running
A long power cable gives you plenty of slack, enabling you to set the PDU33105 in various locations with ease
Durable metal housing protects the internal components while withstanding impacts and abrasions within industrial environments, prolonging the lifespan of the PDU33105
Network-grade plugs and outlets ensure proper operation and efficient distribution of power, making this essential for busy network centers
A cord retention tray secures plugged-in cables to keep them neat and organized, preventing tangles and other mishaps
![]()
UPC: 649532932832
In the Box
- CyberPower PDU33105 Monitored PDU Series
- Limited 3-Year Warranty
CyberPower PDU33105 Specs
| Form Factor |
Strip |
| Type |
Distributor |
| Rated Current |
30 A |
| Number of Circuits |
Not Specified by Manufacturer |
| Metering |
None |
| Battery Backup |
No |
| Typical Backup Runtime |
Not Specified by Manufacturer |
| Integrated Lamps |
None |
Connections
| Outlets |
2 x NEMA 5-20R
36 x IEC-320 C13
6 x IEC-320 C19 |
| Wall Plug Type |
NEMA L21-30P |
| AC Power Connector |
1 x Hardwired |
| USB Ports |
1 x USB Type-A |
| Ethernet |
1 |
| BNC Coaxial |
None |
| RJ11 |
None |
| Remote |
None |
| Lamp Connectors |
None |
Electrical
| AC Input Power |
Not Specified by Manufacturer |
| Output Voltage |
120 to 208 VAC |
| DC Output Power |
Not Specified by Manufacturer |
| Output Current |
30 A |
| Load Capacity |
Not Specified by Manufacturer |
| Sequencing Delay |
None |
Protection & Conditioning
Environmental
| Certifications |
FCC-A, RoHS, as per Manufacturer |
| Operating Temperature |
23 to 140°F / -5 to 60°C |
Physical
| Cable Length |
10' / 3 m |
| Material of Construction |
Metal |
| Cable Management |
Yes |
| Dimensions |

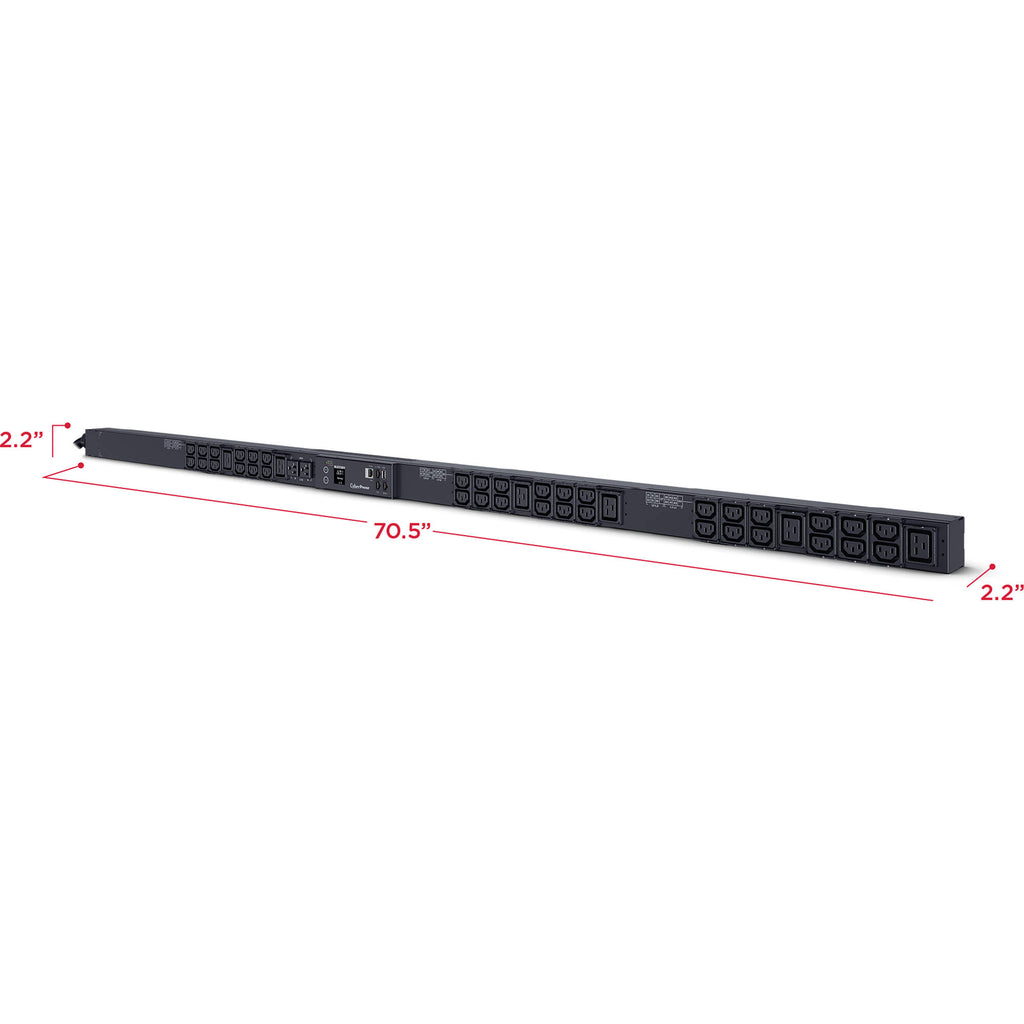

70.5 x 2.2 x 2.2" / 179.1 x 5.6 x 5.6 cm |
| Weight |
15.7 lb / 7.1 kg |
