D.A.S Audio ALTEA-412A Two-Way 12" Powered Point Source Speaker with DSP Processor (800W)

For PA and Stage Monitor Applications

Clean, Clear, Loud & Portable

Application Presets + 2-Input Mixer

90 x 60° Coverage, 60 Hz to 20 kHz

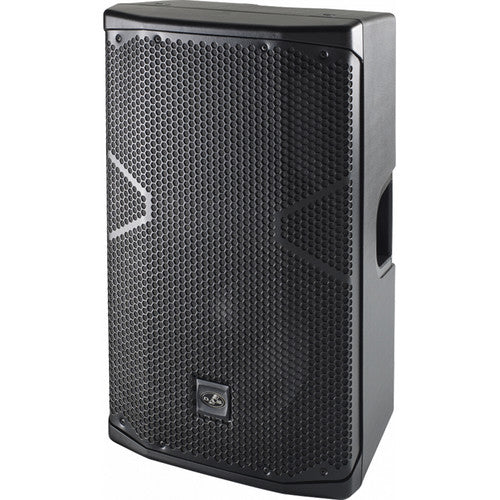

The 12" D.A.S. Audio ALTEA-412A  is a 800W powered point source PA speaker that�s portable and simple to use. As a PA speaker, the unit is versatile and well suited for fixed installations and portable applications. With a pair, the speaker can cover an audience up to 250. Its symmetrical enclosure design allows for stage monitor use. The onboard DSP processing, 3-input mixer, and LCD interface with easy-to-use presets help working presenters, musicians, instructors, performers, and A/V providers get powerful, clean, and clear sound quickly.

The speaker provides 90 x 60° coverage and 126 dB of peak SPL�plenty of volume for smaller to mid-sized venues including houses of worship, conference centers, performance spaces, and meeting rooms. The highly efficient 800W Class-D bi-amplifier powers the 1" compression driver and 12� woofer, providing crisp, detailed sound with a wide frequency range from 20 kHz down to 60 Hz.

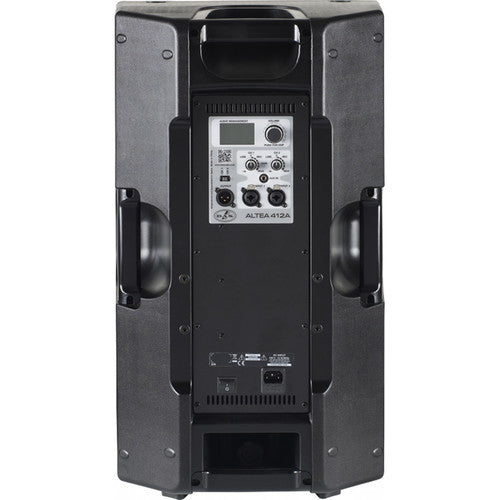

Three inputs are on the back. Inputs 1 and 2 feature combo XLR-1/4" connectors and offer compatibility with microphone and line sources. The Aux input features a stereo 3.5mm TRS auxiliary input for connecting portable audio devices including phones, tablets, and MP3 players.

Individual gain controls on the inputs 1 and 2 allow the speaker to function as a 3-channel mixer (Aux input levels are also controlled by input 1 gain control). Combine two microphones for presentations, or combine a mic, instrument, or backing tracks for singer/songwriter gigs.

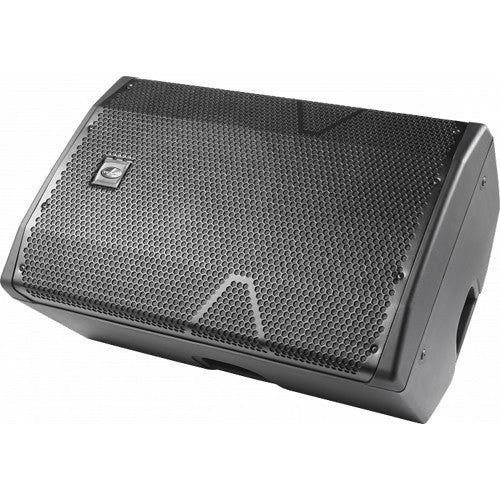

A single XLR Thru-Output is available for daisy-chaining to additional speakers or other audio equipment. An output routing switch offers Input 1, Input 2, or a Mix of both. All inputs are mixed to a mono signal internally and are passed-thru the Mix Out XLR connector. For a true stereo L/R operation, two ALTEA-412A are needed with each to receive independent the left and right signals respectively. The ALTEA-412A ships with an IEC power cord.

Main Features Multi-purpose system with monitor position Lightweight Class-D amplifier with SMPS User-definable 24-bit DSP with LCD screen 5 voicing presets User-definable memories Stackable 3-band EQ Standby mode Rigging points Applications Live sound reinforcement

Bands, DJs, and performers

Speech and vocals

Music playback in entertainment

A/V, conferences, and presentations

Configuration	Active 2-Way
Enclosure Type	Bass-Reflex Loudspeaker/Floor Monitor
Amplifier Power Rating	LF: 800 W Peak
Amplifier Class	Class-D
System Impedance	8 Ohms

HF Driver	1 x 1" / 25.4 mm Compression Driver
LF Driver	1 x 12" / 30.48 cm Woofer

Frequency Range	60 Hz to 20 kHz -10 dB
Maximum SPL	126 dB (Peak)
Coverage Angle	90° H x 60° V (Horn)
Input Sensitivity	8 dBu
I/O Impedance	Input: 20 Kilohms (Balanced)

Audio I/O	2 x Combo XLR-1/4" TRS Female Balanced/Unbalanced Mic/Line Input 1 x 1/8" / 3.5 mm TRS Female Unbalanced Aux Input 1 x XLR 3-Pin Male Balanced Line Thru/Output
Wireless Connectivity	None

Crossover	High-Pass: Internal
Alignment Delay	Yes
Digital Signal Processing	Venue Settings

AC Input Power	Universal: 115 to 230 VAC, 50 / 60 Hz
AC Power Connector	1 x IEC Input
Current Consumption	120 VAC: 2 A 230 VAC: 1 A
Power Consumption	250 W

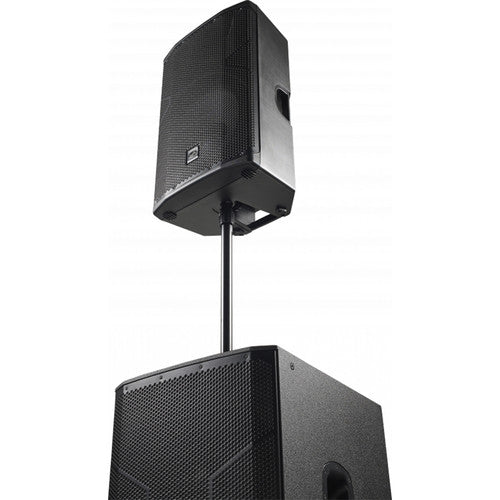

Mounting	1 x 1.38" / 35 mm Pole Socket (Bottom) 6 x M8 Fly Point
Handles	4
Construction Material	Polypropylene
Dimensions	25.6 x 15 x 13.6" / 650.2 x 381 x 345.4 mm
Weight	38.7 lb / 17.6 kg
