- Wall or Ceiling Mounted
- Non-Tensioned
- 72" Diagonal
- Video Format
- 4:3 Aspect Ratio
- Matte White Finish
- CSR (Controlled Screen Return)
- Front Projection
The Dalite 43 x 57" Model C Manual Front Projection Screen is a perfect choice for either a large lecture or seminar hall, or conference/training room. The screen is designed for heavy use and features lubricated steel ball bearings for a smooth operating system. The screen is accessed via a pull cord.
The CSR mechanism was designed to provide a smooth and safe way for the screen to be retracted into its case. This kind of consistent operation ensures a longer life for the screen. Screens with CSR must be fully extended since there are no intermediate stopping positions.
As an option, you can purchase the screen in any one of seven veneer finishes to give it a more professional, finished appearance. If you prefer not to choose a veneer or laminate, the screen will come with a white casing. In addition, you can also purchase floating brackets which allow the screen to be either wall or ceiling mounted but which also give you the freedom to align the system left/right.
Note: Veneers include: Honey Maple, Medium Oak, Heritage Walnut, Mahogany, Light Oak, Natural Walnut, and Cherry. Cases with Honey Maple, Light Oak and Medium Oak. Cases with Honey Maple, Light Oak and Medium Oak finishes come standard with white end caps. Cherry, Mahogany, Natural Walnut and Heritage Walnut cases come with black end caps.
- Permanently lubricated steel ball bearings combined with nylon bushings and heavy-duty spring assembly offers smooth operation even in demanding applications
- Optional floating mounting brackets allow the Model C to be mounted onto wall or ceiling studs and aligned left or right after installation by releasing two sets of screws
- Matte White fabric up to and including 10' high will be seamless
- Glass Beaded fabric up to and including 8' high will be seamless
- Video Spectra 1.5, High Contrast Matte White and Silver Matte fabrics available in sizes up to 8' high
In the Box

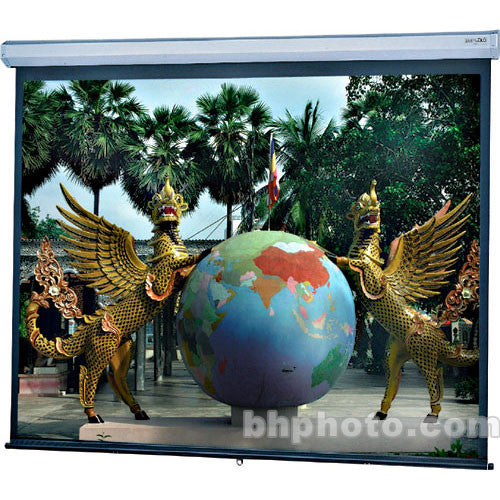

Da-Lite 97219 Model C Manual Projection Screen (43 x 57")
One-Year Warranty
Da-Lite 97219 specs
| Type |
| Style | Model C/CSR (Controlled Screen Return) |
| Front/Rear Projection | Front |
| Mount | Wall or ceiling; mounted on a ball bearing rigid steel spring roller (1.75" diameter for widths 70" or less, 3" diameter for widths 84" and over) |
| Finish | Flame retardant and mildew resistant |
| Tension Control | Not Applicable |
| Keystone Control | Not Applicable |
| Dimensions |
| Overall Size | Not Specified by Manufacturer |
| Image Size | 43 x 57" (1.1 x 1.4 m) |
| Diagonal | 72" (1.8 m) |
| Format | Video |
| Aspect Ratio | 4:3 |
| Masking Options | Black masking borders are standard |
| Controls |
| Voltage | Not Applicable |
| Integrated Control | Not Applicable |
| Control Options | Not Applicable |
| Casing |
| Color | White |
| Material | 21-gauge steel case; steel end caps concealing roller ends with steel inner plates to support roller and provide added case strength |
| Length | 63-1/8" (1.6 m) |
| General |
| Shipping Weight | 38 lb (17.2 kg) |
| Packaging Info |
| Package Weight | 23.0 lb |
| Box Dimensions (LxWxH) | 70.0 x 9.0 x 6.0" |
