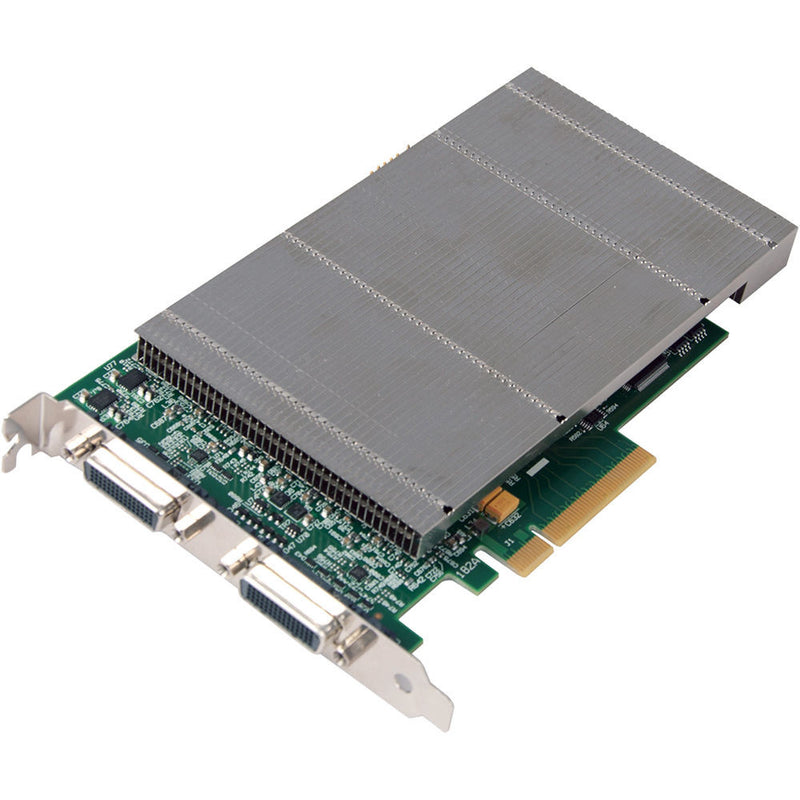

Provided by third party: A wide range of applications demand multiple channels of video capture from a single card. Markets include advanced medical and machine vision capture, military applications and security/surveillance systems. Suitable for these markets and others Datapath's VisionSC-HD4+ audio video capture card provides an outstanding, powerful solution for multiple HDMI or DVI video capture with support for HDCP.
- Key Features
-
- High-performance card
- Professional audio and video capture card
- High-performance card
- A wide range of applications demand multiple channels of video capture from a single card. Markets include advanced medical and machine vision capture, military applications and security/surveillance systems. Suitable for these markets and others Datapath's VisionSC-HD4+ audio video capture card provides an outstanding, powerful solution for multiple HDMI or DVI video capture with support for HDCP.
- Professional audio and video capture card
- Advanced graphics display technology the SC-HD4+ has four video capture channels; two channels of HDMI 1.4 and two HDMI 1.3a channels, all operating independently of each other. This enables four separate 4 video sources to be captured and controlled simultaneously.
| General |
| Device Type | Video capture adapter |
| Bundled with | 2 X HDMI splitter cables |
| Interface Type | PCIe x8 |
| Width | 7 in |
| Depth | 4.3 in |
| Video |
| Analog Video Signal | RGB |
| Digital Video Capture Resolution | 3840 x 2160 |
| Audio Input Support | Standard |
| Features | 768 MB frame buffer |
| Software / System Requirements |
| OS Required | Microsoft Windows XP, Microsoft Windows Server 2003, Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows Server 2008, Windows 8 / 8.1 |
| Environmental Parameters |
| Min Operating Temperature | 32 �F |
| Max Operating Temperature | 95 �F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Packaging Info |
| Package Weight | 1.6 lb |
| Box Dimensions (LxWxH) | 12.7 x 6.5 x 3.7" |
