Description
Dedolight KA24B-U-DMX Overview
- 1Description
- 2Dedolight Universal Tungsten Spotlight without Cable - 100-150 Watts/12-24 Volts
- 3Dedolight DT241U Power Supply with In-Line Dimmer and DMX Control (120 VAC)
- 4Dedolight Compact Light Stand (7')
- 5Dedolight 8-Leaf Barndoor Set with Gel Clips (5.5")
- 6Dedolight DL150 Lamp (150W/24V)
- 7Dedolight Light Clamp
- 8Dedolight Lamphead Mounting Plate with 5/8" Stud and Arm
- 9Dedolight DCHDKA1 Heavy-Duty Transport Case - for Dedolight KA24 Lighting Kits (Replacement)
The DLH4 light head forms the core of the Basic DLH4 Tungsten 3-Light Kit with DMX Control. It's extremely compact, yet (with its dual-lens concept) provides high light output. With a 150W lamp in the flood position, its light output is greater than a 300W Fresnel studio fixture. In the spot position, it equals or exceeds a 1000W Fresnel studio fixture. The inexpensive, specially designed lamps provide precision beam aim, coupled with long life expectancy.
Each light head is equipped with a power supply/control unit, and a 150W lamp at a nominal voltage of 24V. The power supply features a built-in 3-pin head XLR cable and 5-pin XLR input and output slots that support DMX control across 512 channels. Its AC power input is set for 120 AC voltage.
Also included are stands, barndoors, bulbs, clamp, accessory box, clamp, wall holder, and a hard, divided case.
This is a Dedolight DLH4 universal quartz halogen light head with double aspheric lenses and zoom focus. It is dual-wattage -- 100 or 150 watt, and dual-voltage -- 12 or 24 volt, with the appropriate optional power supply.
The optical system of the Dedolight surpasses the traditional concept of studio lights with fresnel lenses. The Dedolight optical system employs two lenses - neither of which is a fresnel. The second lens pre-collects the light, directing it to the front lens and minimizing light loss. This produces unprecedented focusing range and light efficiency, especially in the spot position.
This is the light head only. A bulb, cable and power supply must be ordered separately.

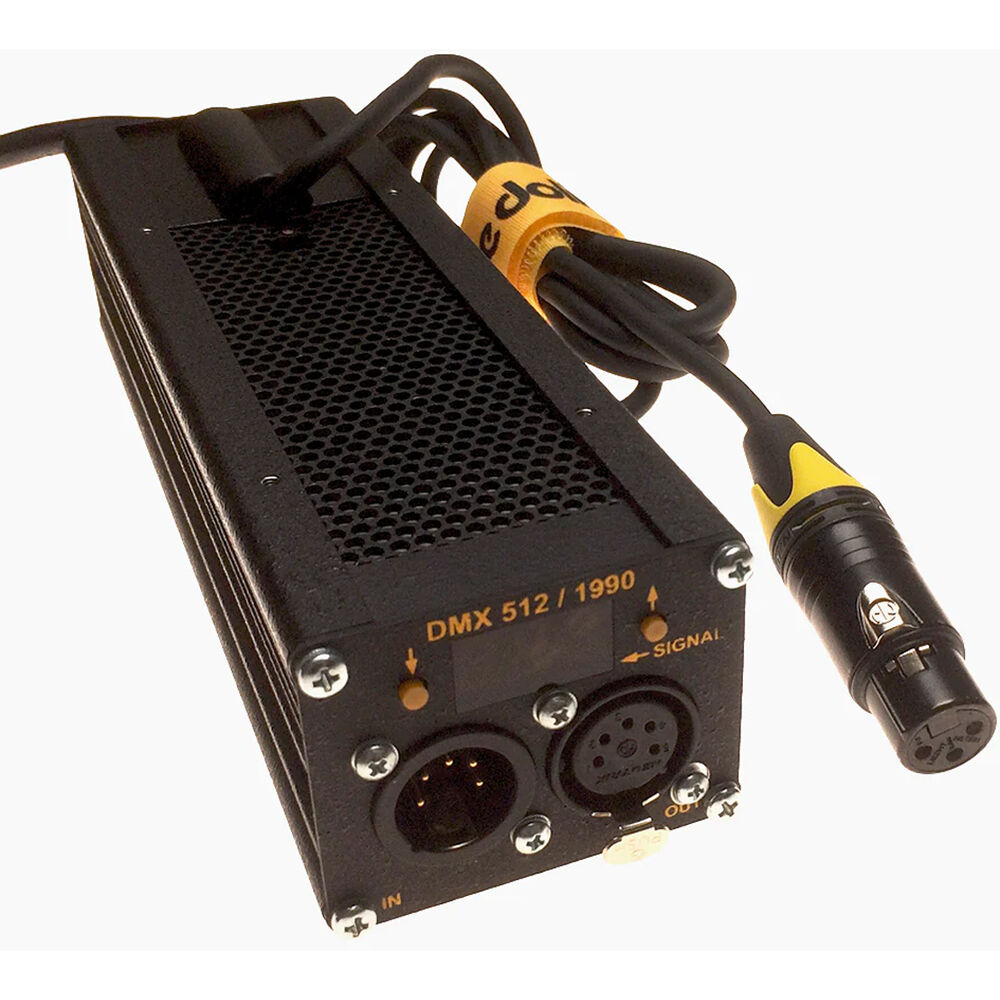

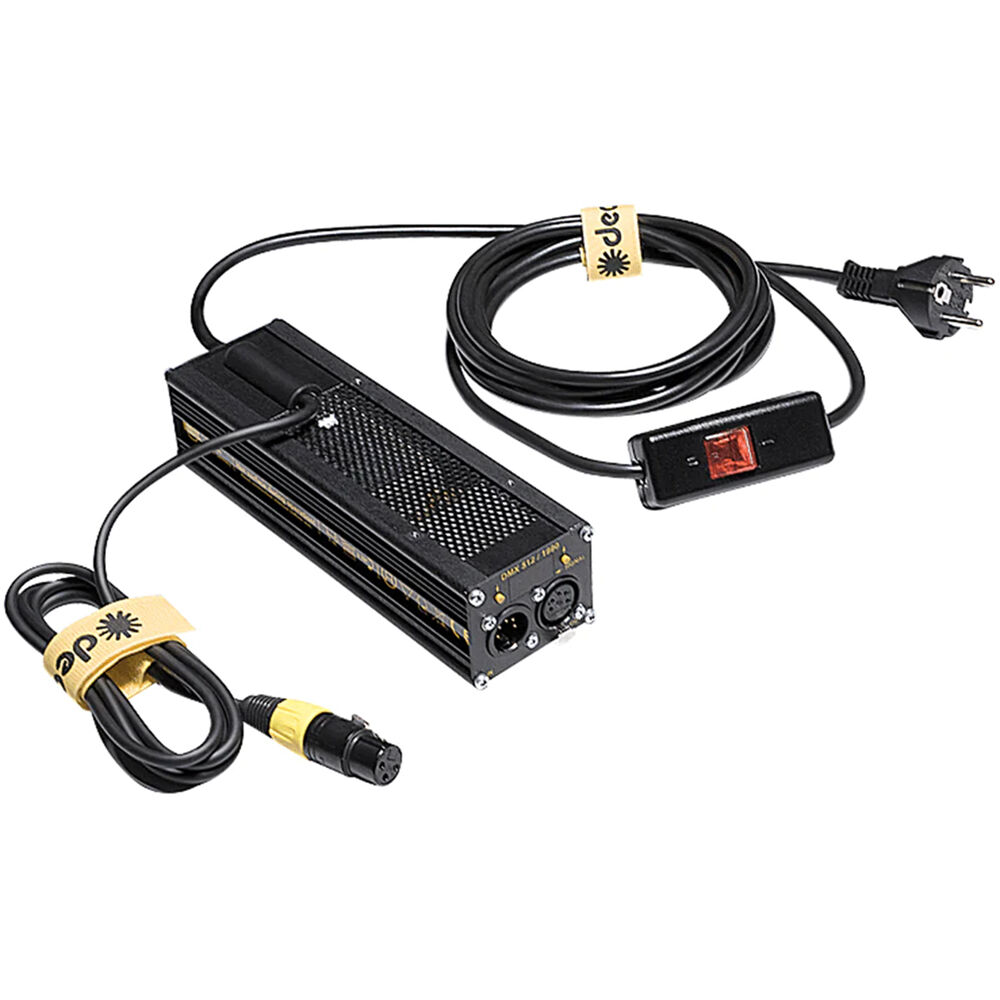

The Dedolight DT241U with DMX Control power supply provides up to 24V at 150W. The power supply features a built-in 3-pin XLR cable plus 5-pin XLR input and output slots that support DMX control across 512 channels. The DT241U may be used with the DLH3 and DLH4 Aspheric 2 light heads.
This black anodized aluminum, 7' Dedolight Compact Light Stand weighs only 2.1 lb. Its maximum height is 7 feet, and it folds down to just 19".
This is the Dedolight 8-Leaf Barndoor Set with Gel Clips. Barndoors narrow the beam spread of a light fixture. They help create a 3-dimensional look to a lighting scheme by placing light in a specific area or by keeping it away.
The small leaves of this barndoor set have two helper leaves, which add more control of the light emitted from the fixture. Each large leaf has two clips for attachment of gel filters.
This 150W/24V Dedolight DL150 Lamp is used in various 150W Dedolight fixtures and has a lifetime of 300 hours at 24V run at 3200K.
Attaches securely to stands, pipes, shelves, etc. up to 1-7/8 in (4.8 cm) diameter. A 5/8 in stud pivots and locks in two positions.
5.2 oz (147 g).
Made of elastic aircraft type aluminum, this holder tapes to flat surfaces, and attaches to table legs or pipes through the cutout in the plate. Mounting chains, gaffer tape, nails and screws are supplied. The base plate's attached 2-way articulating arm is made of heavy-duty spring steel. 5 oz. (142g).
The Dedolight DCHDKA1 Heavy Duty Transport Case is made to carry all equipment supplied with a Dedolight KA24 lighting kit. It is made from molded, high-impact polyethylene, with a folding carry handle.
- Dedolight KA24B Basic 150W 24V tungsten kit (replacement)
- Dedolight KA24M Master 150W 24V tungsten Kit (replacement)
- Dedolight KA24S Standard 150W 24V tungsten Kit (replacement)
- Dedolight KA24-4M Master Four Light 150W 24V tungsten Kit (replacement)
- Dedolight KA24-4B Basic Four Light 150W 24V tungsten Kit (replacement)
In the Box
- 3 x Dedolight Universal Tungsten Spotlight without Cable - 100-150 Watts/12-24 Volts
- Limited 1-Year Manufacturer Warranty
- 3 x Dedolight DT241U Power Supply with In-Line Dimmer and DMX Control (120 VAC)
- Head to Dimmer Cable
- 120 VAC Power Cable with USA Plug
- Limited 1-Year Manufacturer Warranty
- 3 x Dedolight Compact Light Stand (7')
- Limited 1-Year Manufacturer Warranty
- 3 x Dedolight 8-Leaf Barndoor Set with Gel Clips (5.5")
- Limited 90-Day Manufacturer Warranty
- 6 x Dedolight DL150 Lamp (150W/24V)
- Dedolight Light Clamp
- Dedolight Lamphead Mounting Plate with 5/8" Stud and Arm
- Dedolight DCHDKA1 Heavy-Duty Transport Case - for Dedolight KA24 Lighting Kits (Replacement)
- 90-Day Warranty from
- Plastic Accessory Box (DLBOX)
- Description
- Dedolight Universal Tungsten Spotlight without Cable - 100-150 Watts/12-24 Volts
- Dedolight DT241U Power Supply with In-Line Dimmer and DMX Control (120 VAC)
- Dedolight Compact Light Stand (7')
- Dedolight 8-Leaf Barndoor Set with Gel Clips (5.5")
- Dedolight DL150 Lamp (150W/24V)
- Dedolight Light Clamp
- Dedolight Lamphead Mounting Plate with 5/8" Stud and Arm
- Dedolight DCHDKA1 Heavy-Duty Transport Case - for Dedolight KA24 Lighting Kits (Replacement)
Dedolight Universal Tungsten Spotlight without Cable - 100-150 Watts/12-24 Volts Specs
Beam Angle |
48 to 5°
|
Color Temperature |
3400K
|
Bulb Type |
1 x GY6.35
|
Max Bulb Wattage |
150 W
|
Lens Type |
Aspherical
|
Photometrics |
48°
300 fc / 3240 Lux at 3.3' / 1 m* 372 fc / 4000 Lux at 3' / 0.9 m 93 fc / 1000 Lux at 5.9' / 1.8 m 41 fc / 445 Lux at 8.9' / 2.7 m 15 fc / 160 Lux at 14.8' / 4.5 m 5° 48 fc / 524 Lux at 3.3' / 1 m* 7609 fc / 81,900 Lux at 0.3' / 0.1 m 304 fc / 3276 Lux at 1.3' / 0.4 m 34 fc / 364 Lux at 3.9' / 1.2 m 19 fc / 205 Lux at 5.2' / 1.6 m *Standardized Measurement Calculated Internally Based on Closest Distance |
Built-In Dimmer |
No
|
Focusable |
Yes
|
Umbrella Mount |
No
|
Mounting |
5/8" Receiver
|
Inline Switch |
No
|
Dimensions |
6.7 x 5 x 4.9" / 17 x 12.7 x 12.4 cm
|
Weight |
1.2 lb / 0.5 kg
|
Package Weight |
1.84 lb
|
Box Dimensions (LxWxH) |
7.75 x 5 x 4.8"
|
Dedolight DT241U Power Supply with In-Line Dimmer and DMX Control (120 VAC) Specs
AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
Output |
XLR 3-Pin Male
|
Dimensions |
7.5 x 2.5 x 2" / 19.1 x 6.3 x 5.1 cm
|
Weight |
1.25 lb / 0.57 kg
|
Dedolight Compact Light Stand (7') Specs
Stand Type |
1 x General Purpose Stand
|
Maximum Working Height |
7' / 2.1 m
|
Minimum Working Height |
21" / 53.3 cm
|
Load Capacity |
3 lb / 1.4 kg
|
Stand/Column Top Mount |
5/8" Stud
|
Wheels |
Not Compatible
|
Air Cushioned |
No
|
Leveling Leg |
No
|
Weight |
2.1 lb / 0.9 kg
|
Maximum Working Height |
7' / 2.1 m
|
Minimum Working Height |
21" / 53.3 cm
|
Load Capacity |
3 lb / 1.4 kg
|
Closed Length |
19" / 48.3 cm
|
Stand/Column Top Mount |
5/8" Stud
|
Accepts Second Riser |
No
|
Wheels |
Not Compatible
|
Air Cushioned |
No
| <
