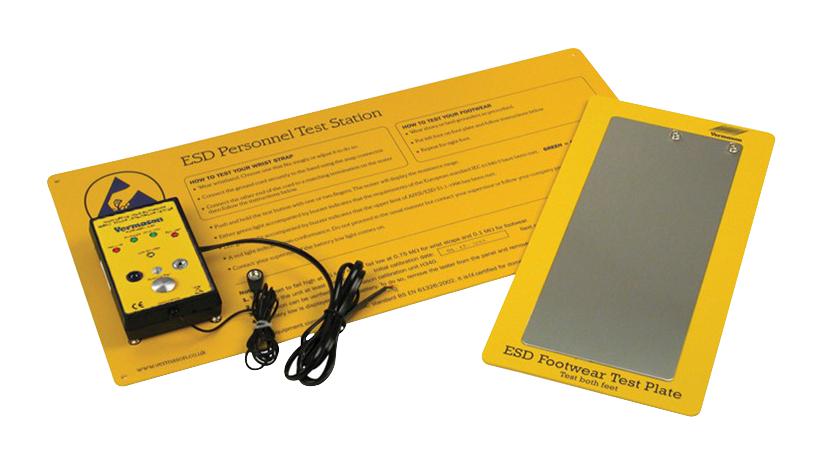

222565 is a high speed, high accuracy wrist strap / footwear test station with output. The tester features a relay terminal that can be integrated with electronic door locks, lights, buzzers, etc. It is capable of switching up to 0.5A @ 50VDC. An output cable with stripped ends is included with the tester to help you wire your device to the tester's relay terminal.
- Test voltage: 24VDC
- 1 second test cycle
- LEDs display pass and fail conditions
- Buzzer sounds on pass
- Test range: 750Kohm low, 35Mohm high
- ON/OFF output signal is 9VDC, 0.1A
- RJ12 output socket
Contents
1 wrist strap / footwear tester, 1 x wall plate, 1 foot plate, Single foot, 1 x output cable, 1 x 9V alkaline battery, 1 x certificate of calibration.
Product details
| Product Type |
Wrist Strap and Footwear Test Station |
| Product Range |
- |
Other details
| Brand |
DESCO EUROPE / VERMASON |
| Part Number |
222565 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
