Description

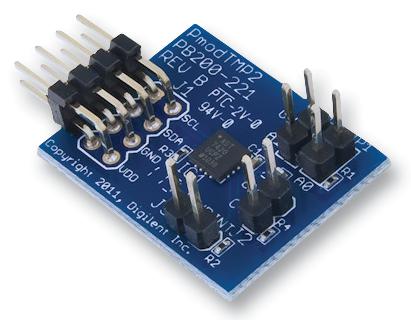

PMODTMP2 is a temperature sensor and thermostat control board built around the Analog Devices ADT7420. The PmodTMP2 uses an 8 pin connector that allows for communication via I2C, and provides pins to daisy chain the PmodTMP2 to other I2C devices. The PmodTMP2 also provides two 2 pin headers for selecting the I2C address of the chip, and two 2 pin headers for controlling external devices based upon temperature thresholds defined by the user in software.
- Up to 16bit resolution
- Typical accuracy better than 0.25°C
- I2C interface with 4 selectable addresses
- 240ms continuous conversion time
- Programmable overtemperature/undertemperature control pins
- Support for 3.3V and 5V interfaces
- No calibration required
Sensing & Instrumentation, Medical, Industrial
ContentsPmodTMP2 temperature sensor module, MTE Cable.
Other details
| Brand | DIGILENT |
| Part Number | 410-221 |
| Quantity | Each |
| Technical Data Sheet EN |  |
