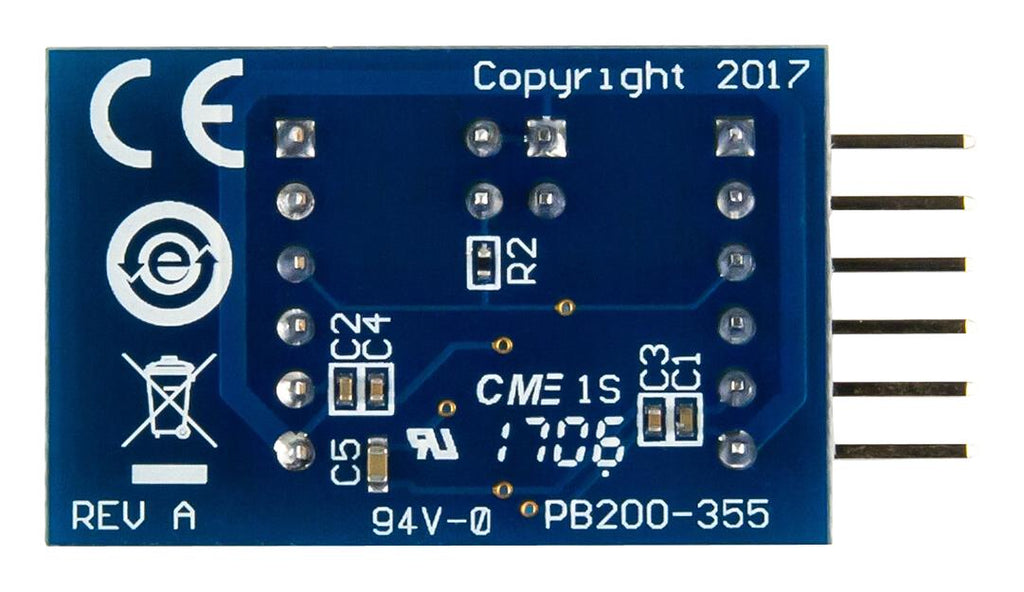

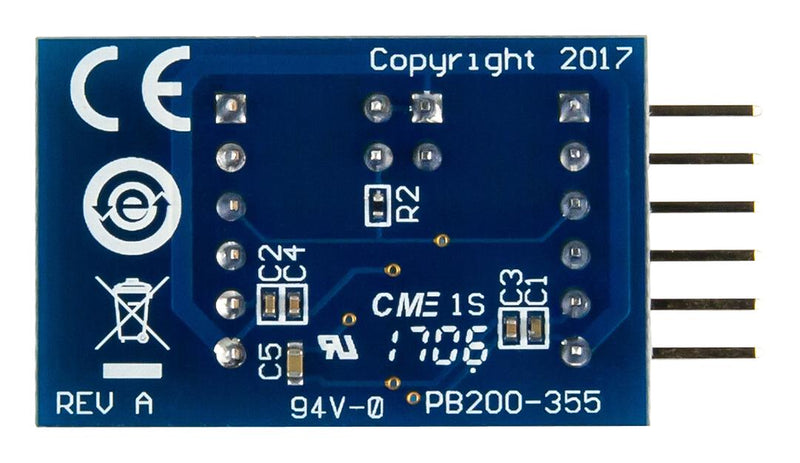

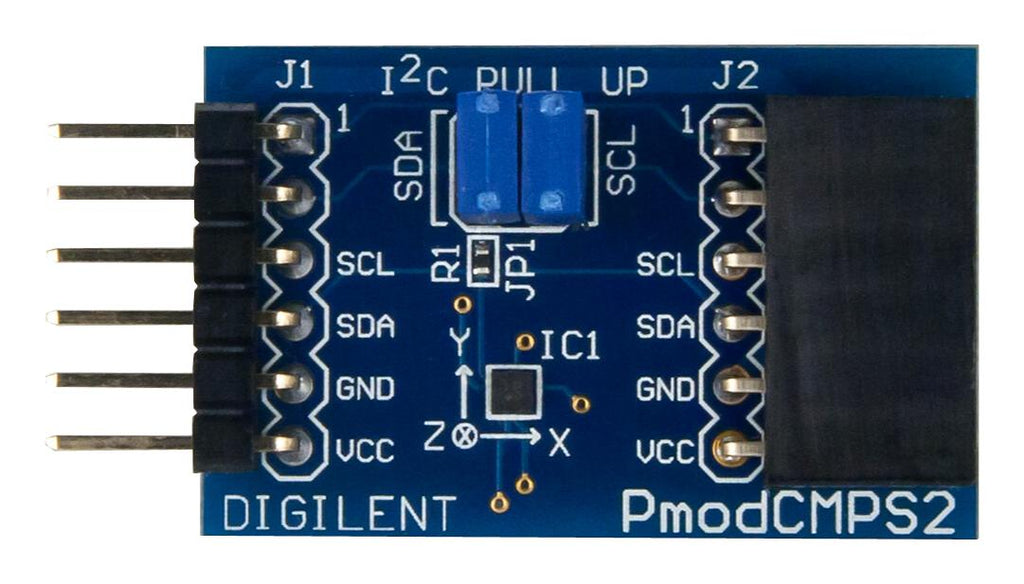

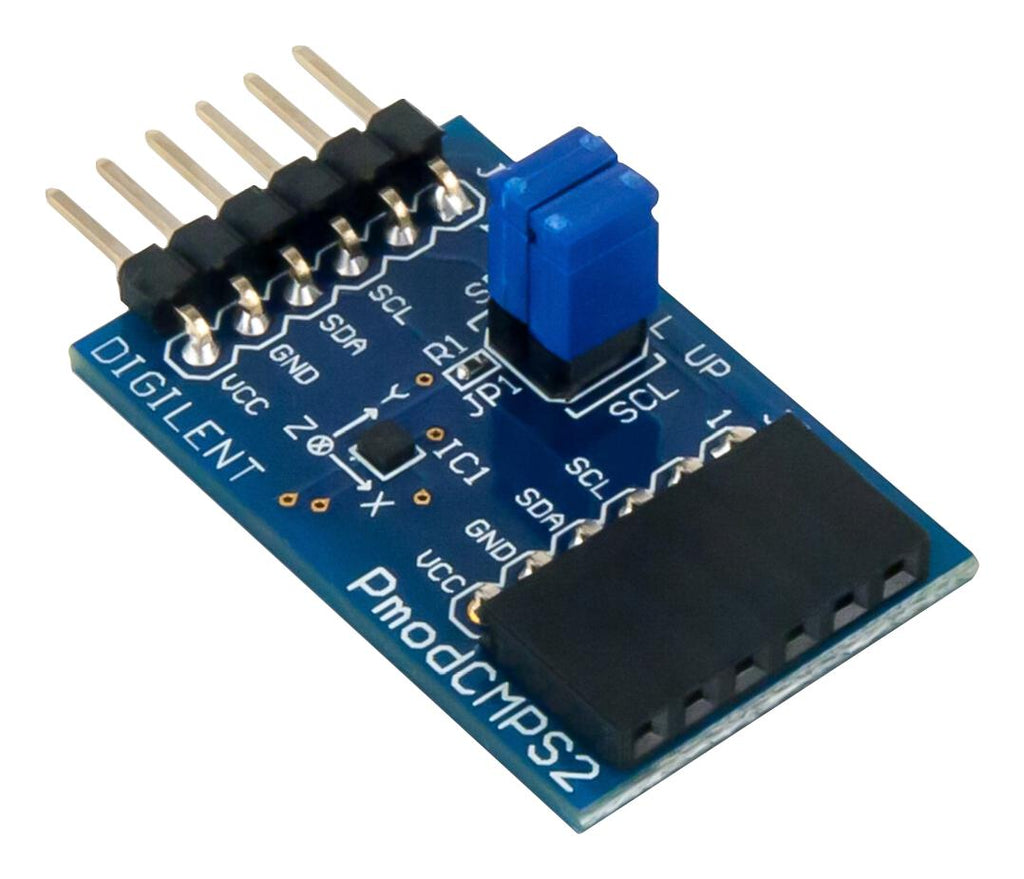

Pmod CMPS2 is a 3-Axis digital compass module using Memsic's MMC34160PJ magnetometer. The local magnetic field strength can be measured in a ±16 Gauss range with a heading accuracy of 1° and up to 0.5mG of resolution.
- Low noise 3-axis digital compass
- Optional pull-up resistors for SCL and SDA pins
- Small PCB size for flexible designs 0.8" x 1.25" (2.0cm � 3.2cm)
- 6 pin Pmod connector with I2C interface
- Pass-through Pmod host port for daisy chaining
- Follows Digilent Pmod Interface Specification 1.1.0
Contents
Pmod CMPS2, Custom antistatic Pmod packaging.
Product details
| Accessory Type |
Pmod CMPS2: 3-Axis Compass |
| For Use With |
Digilent Development Boards |
| Product Range |
- |
Other details
| Brand |
DIGILENT |
| Part Number |
410-355 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Manufacturer Catalogue EN |
|
