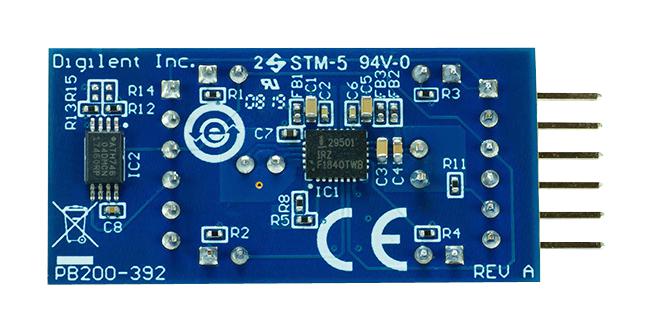

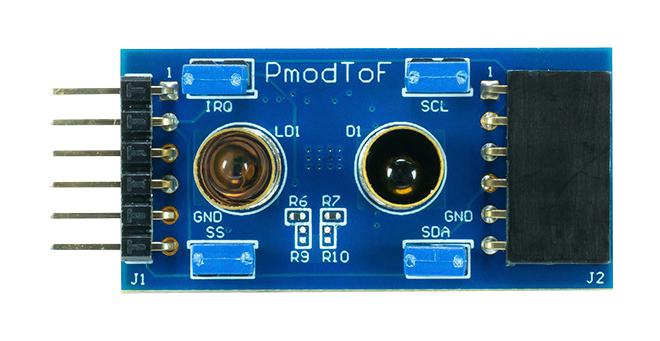

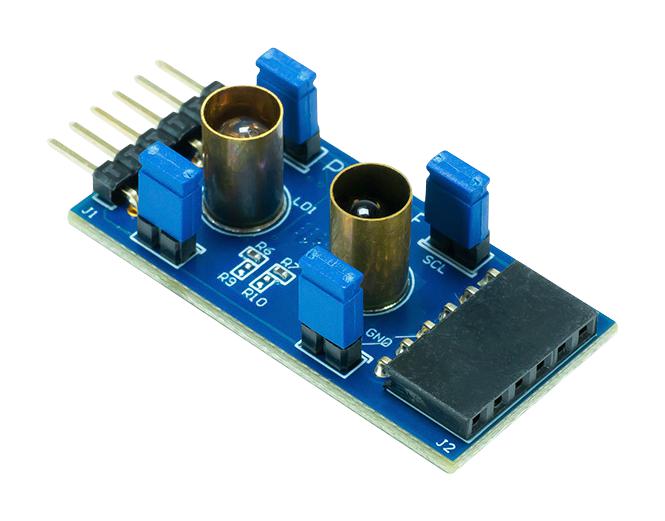

Digilent 410-392 410-392 Pmod TOF DEV BRD Time OF Flight Sensor

Pmod ToF (Time of Flight) is a sensor that enables optical distance sensing at low power. The on-chip digital signal processor on the ISL29501 calculates the time it takes for light emitted by the ToF to travel to the target and back, which is proportional to the distance to the target. The Pmod ToF can measure distances of up to five meters.

• Optimized low-power modes
• Enables proximity detection and distance measurement
• 16bit resolution
• On-board EEPROM to save the calibrations
• 6-pin Pmod connector with I2C interface
• Pass-through Pmod host port for daisy chaining

Contents

Pmod ToF, Custom Digilent Pmod packaging, Piece of black foam to be used as calibration for the sensor.

Other details

Brand	DIGILENT
Part Number	410-392
Quantity	Each
