Description
- For Multimedia Setups
- S/PDIF Coaxial or Optical Input
- Stereo RCA Audio Output
- 1/8" Headphone Output

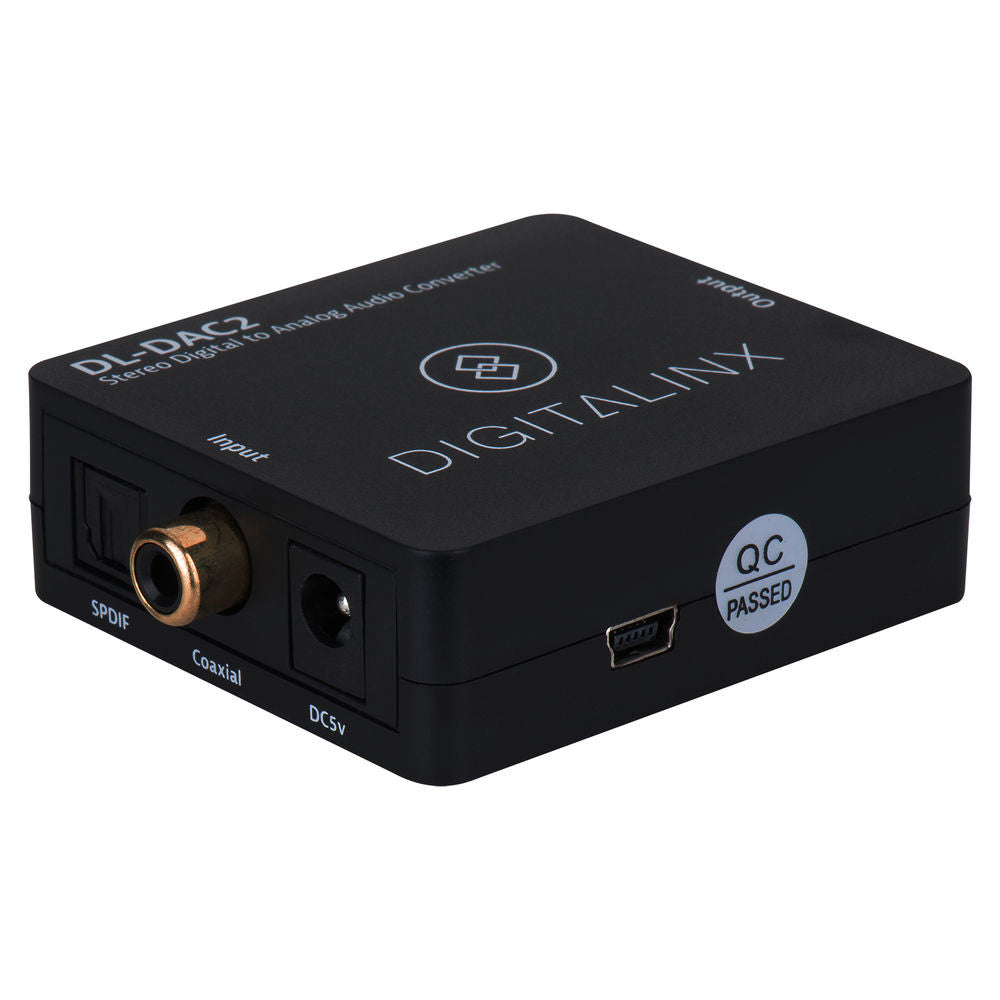

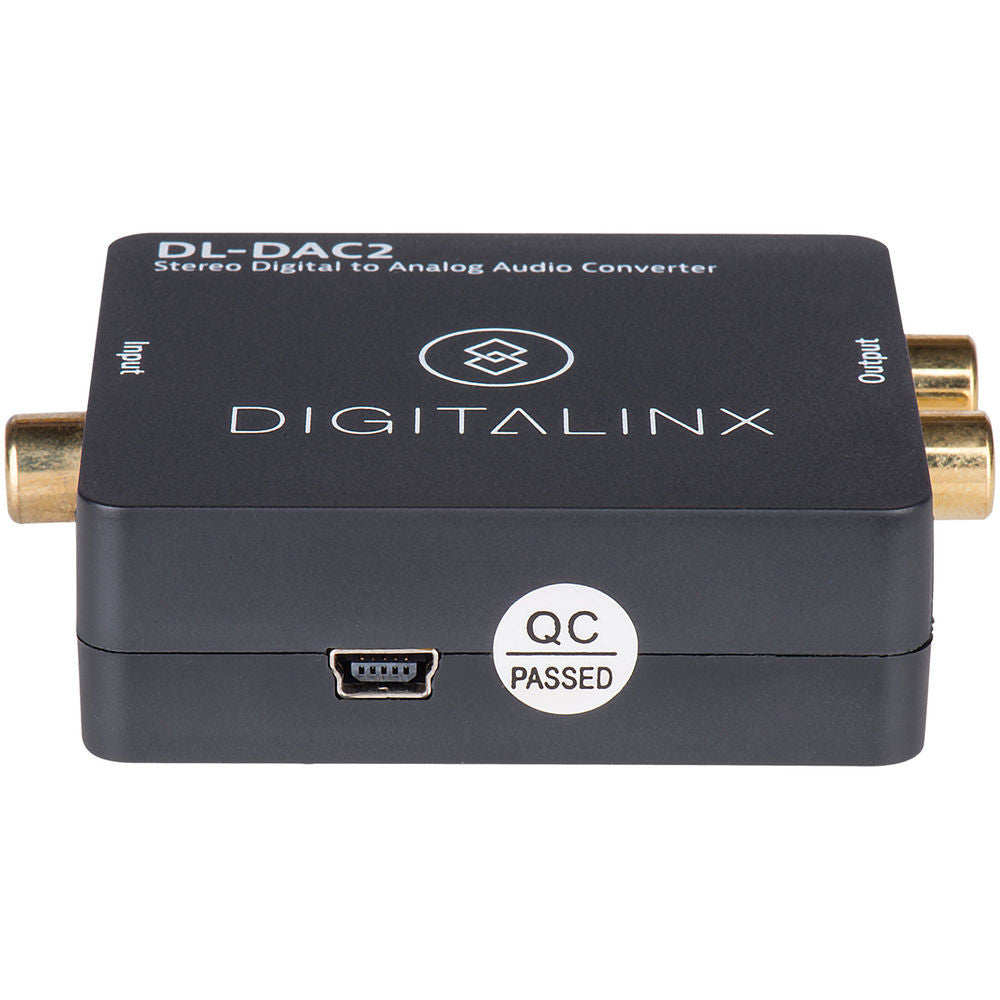

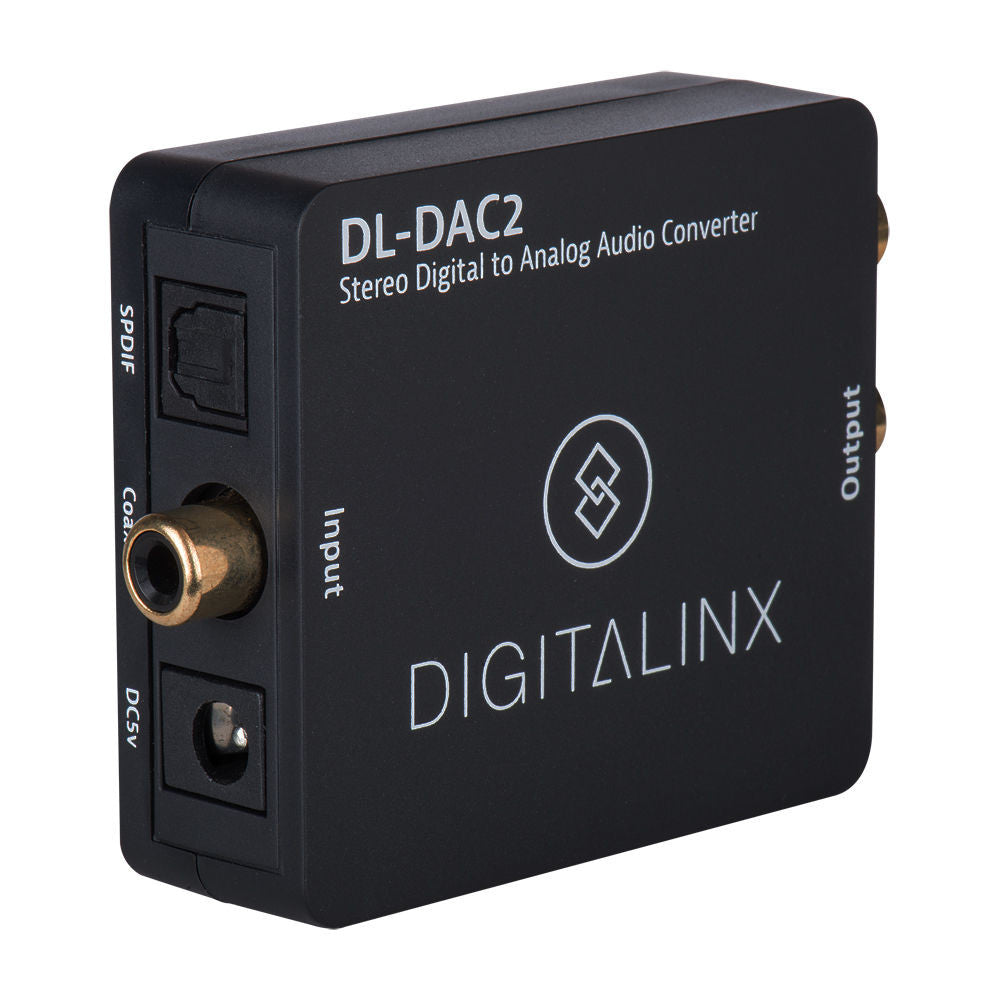

The Digitalinx DL-DAC2 is an easy-to-use device that converts coaxial and optical S/PDIF digital audio into stereo analog audio, perfect for multimedia components such as TVs or CD/DVD/Blu-ray players that do not feature analog outputs.
Use the dual RCA phono outputs to connect the unit to an amplifier or powered speakers, and use the 1/8" mini stereo output for simultaneous headphone monitoring. The DL-DAC2 supports PCM digital audio at resolutions up to 96 kHz and can be powered via the included power supply or alternately via USB.
-
- Converts stereo digital audio to stereo analog audio

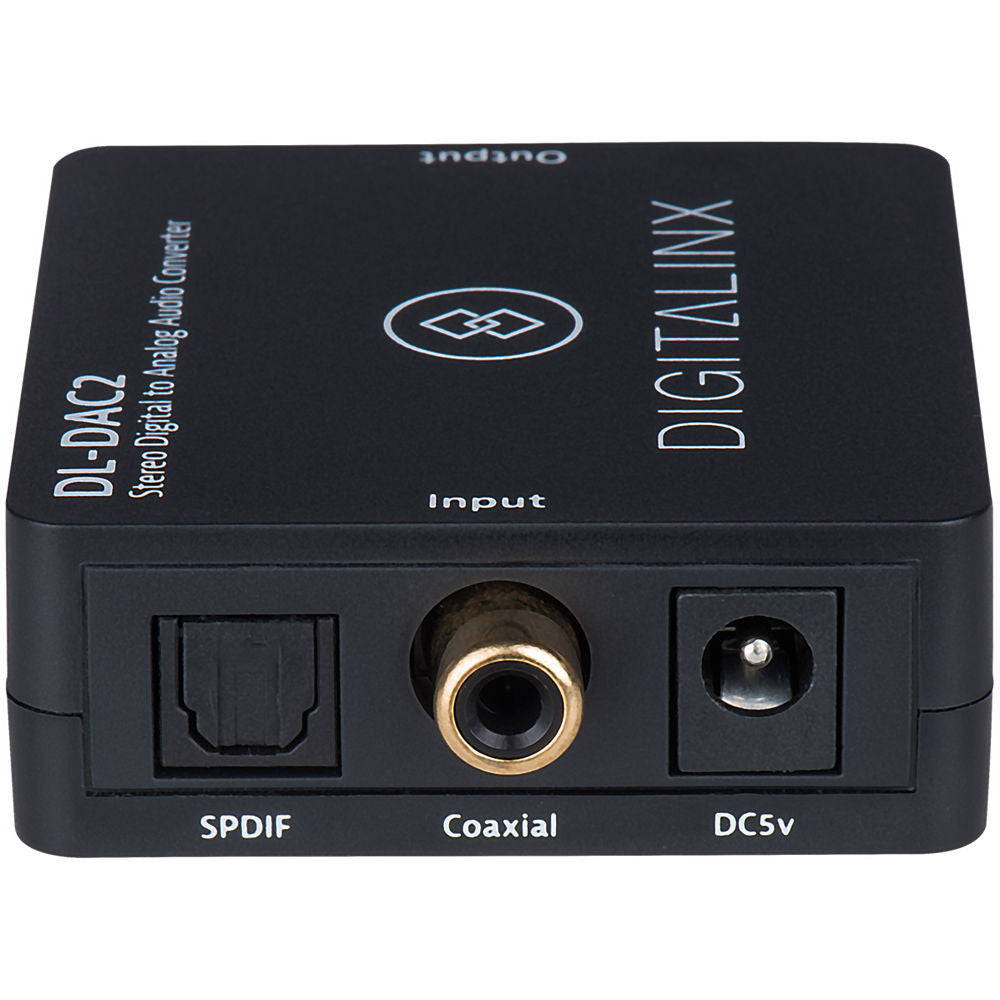

- Optical S/PDIF and coaxial digital audio inputs

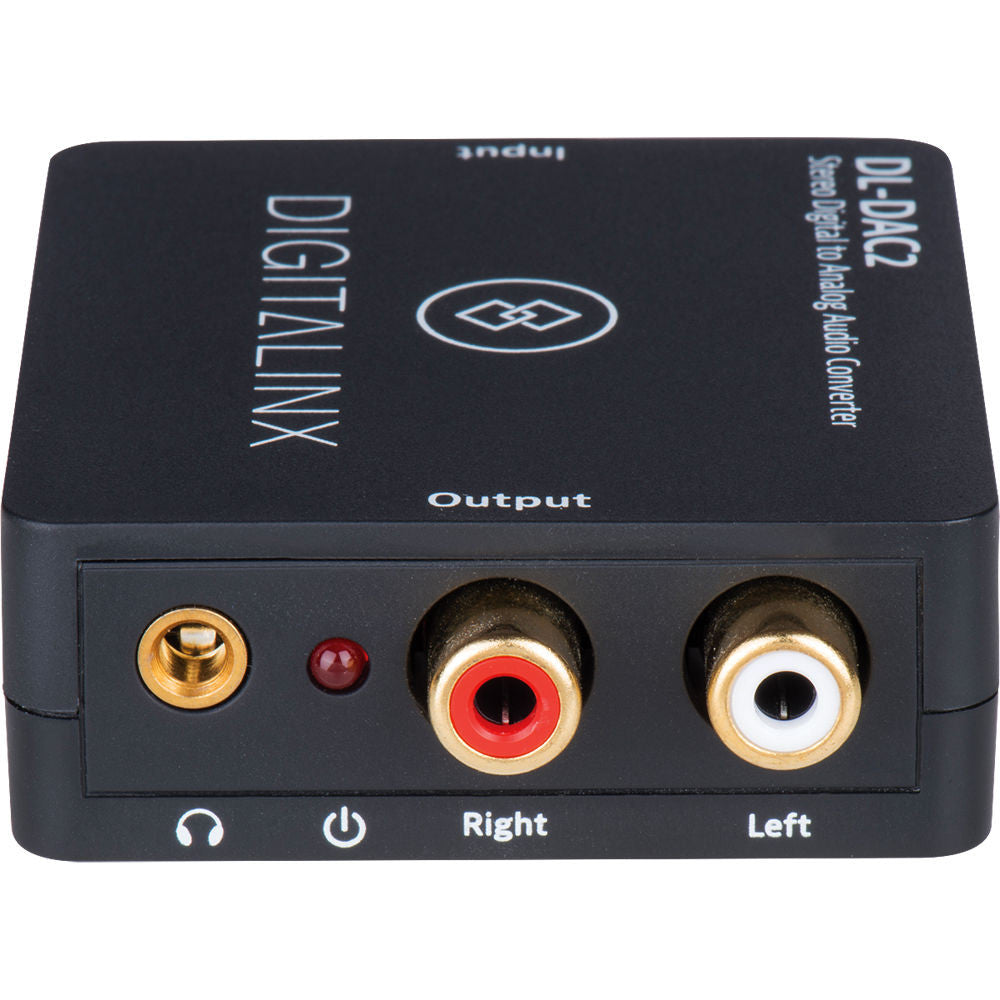

- Dual RCA phono and 3.5mm mini stereo output connectors � pass audio simultaneously
- Built-in surge protection, power LED
- Includes power supply � optional power via USB
UPC: 601446001417
| I/O Connections | S/PDIF Input: 1 x EIAJ optical connector Coaxial Input: 1 x RCA connector Analog Output: 2 x RCA connectors (stereo) Headphone Output: 1 x 1/8" / 3.5 mm jack Power Input: 1 x barrel connector with 0.21" / 5.50 mm outside diameter, 0.09" / 2.50 mm inside diameter USB Input: 1 x USB Mini-B connector (alternate power input) |
| Digital-to-Analog Converter (DAC) | Supported PCM 2-Channel Audio: 32, 44.1, 48, 96 kHz Output Signal-to-Noise Ratio: 120 dB Output Frequency Response: ±0.5 dB (20 Hz to 20 kHz) |
| Power | Power Supply Input: 100-240 VAC, 50/60 Hz Power Supply Output: 5 VDC, 1 A Power Consumption: 2.5 W (maximum) ESD Protection: ±8 kV (air-gap discharge), ±4 kV (contact discharge) Regulatory: FCC, CE, RoHS |
| Temperature | Operating: 32 to 104°F / 0 to 40°C Storage: 14 to 140°F / -10 to 60°C |
| Humidity | Operating: 20% to 90%, non-condensing Storage: 20% to 90%, non-condensing |
| Dimensions (H x W x D) | 0.79 x 2.83 x 2.17" / 20.00 x 72.00 x 55.00 mm (with connectors) |
In the Box
Digitalinx DL-DAC2 - Stereo Digital to Analog Audio Converter
- Power Supply
- Limited 2-Year Warranty
