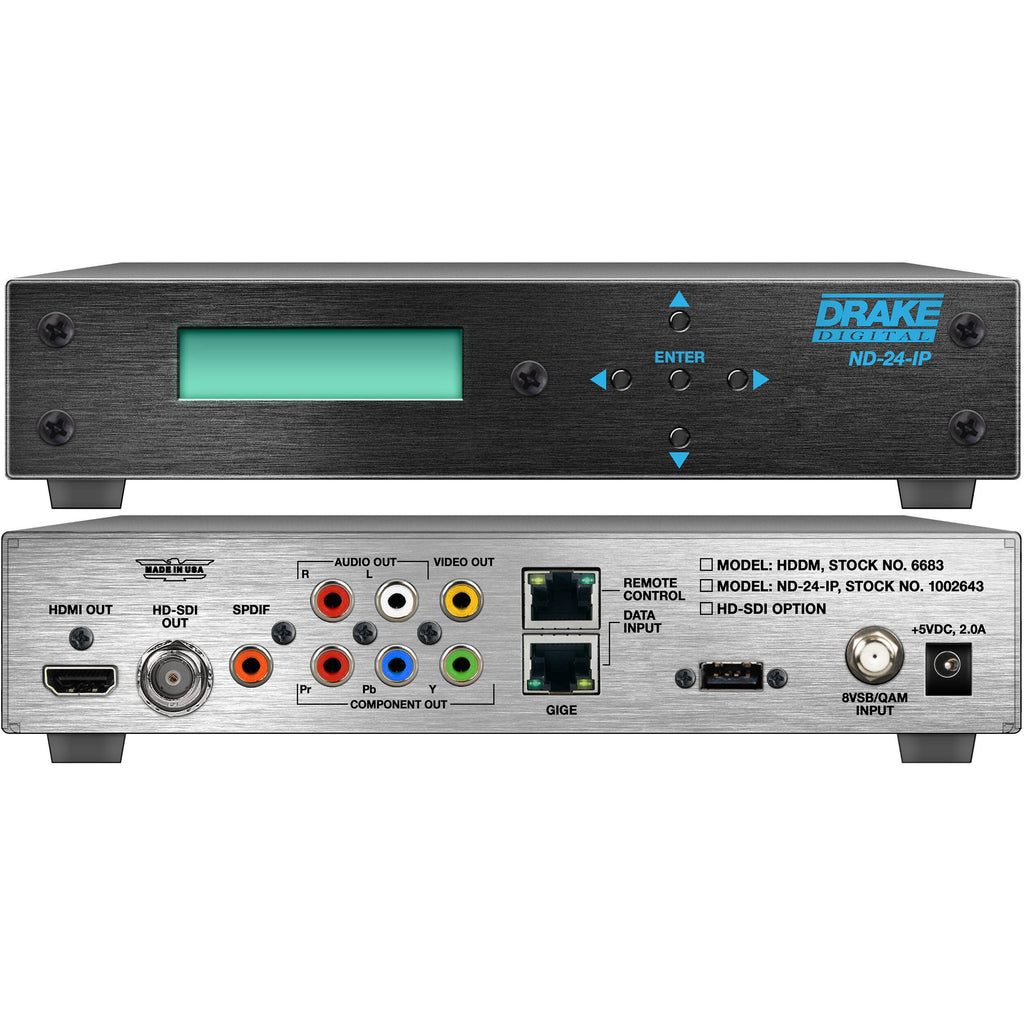

Drake ND-24-IP Network Decoder with 3G-SDI/HDMI/Component Outputs

Decode IP, QAM & ATSC Broadcast Sources

3G-SDI/HDMI/Component/Composite Output

Simultaneous Video Output Destinations

Analog & Digital Audio Output

Decode over-the-air or IP video to multiple, simultaneous outputs with this ND-24-IP Network Decoder with 3G-SDI/HDMI/Component Outputs from Drake . The decoder features RJ45 Gigabit Ethernet IP video and QAM/ATSC RF video inputs, and it features BNC 3G/HD/SD-SDI, HDMI, RCA composite, and 3RCA component outputs. The unit also features 2RCA and RCA S/PDIF outputs.

The QAM and 8VSB/ATSC modes feature CATV, UHF, and VHF channel tuners for input, and the RJ45 Gigabit Ethernet port provides IP video input. Supported broadcast features include VBR (variable bit rate), CBR (constant bit rate), IGMP v2 and v3, and closed captioning. The decoder supports output up to 1080p over 3G-SDI and HDMI and it supports MPEG-2 and H.264 input and output. Audio can be output via HDMI and 3G-SDI in embedded PCM format, digital audio output via the S/PDIF output, or as analog audio out the 2RCA stereo output. The unit supports all outputs to be utilized simultaneously for a variety of output choices.

The unit allows you to monitor the video input/output status with the LCD screen and keypad on the front of the unit, and it can be managed using the second RJ45 LAN port from a computer. It also features IR ports for a separately available remote control. A 5 VDC power supply is included.

Simultaneous SDI/HDMI/Component HD and Composite SD output Decode content from Off-Air, Clear QAM, and IP sources Supports both MPEG-2 and H.264 content LCD screen Closed captioning VBR or CBR IGMPv2 and IGMPv3 IP security camera decoding (VLC Compatible)

Video Input Connectors	1 x RJ45 Female
Audio Input Connectors	None
Embedded Audio Input	RJ45

Video Output Connectors	1 x BNC (3G-SDI / HD-SDI / SD-SDI) Female 1 x HDMI Female 1 x RCA (Composite) Female 1 x 3RCA (Component) Female
Output Video Format	HDMI / SDI 1080p 1080i 720p NTSC Component 1080i 720p NTSC Composite NTSC
Audio Output Connectors	1 x 2RCA Stereo Analog Female 1 x RCA Stereo S/PDIF Female
Embedded Audio Output	SDI: 2-Channel HDMI: 2-Channel

Video Standard Compliance

SMPTE 259M/292M/424M

Other I/O	1 x RJ45 LAN Input/Output 2 x 2.5 mm IR Input/Output
Expansion Slots	None

Power Connector	1 x Barrel (5 VDC) Input
Power Consumption	Device: 5 VDC at 2 A (10 W)

Operating Temperature	32 to 122°F / 0 to 50°C
Storage Temperature	-13 to 158°F / -25 to 70°C
Operating Humidity	0 to 95%
Storage Humidity	0 to 95%

Dimensions	8.69 x 7.99 x 1.97" / 220.7 x 203 x 50 mm
Weight	3 lb / 1.36 kg
Warranty Length	Limited 3-Year Warranty
