Description
Drawmer 1960 Overview
- 1Description
- 2Simple Yet Versatile Compressor
- 3Low-Noise Microphone Preamp
- 4Powerful Direct Instrument Input

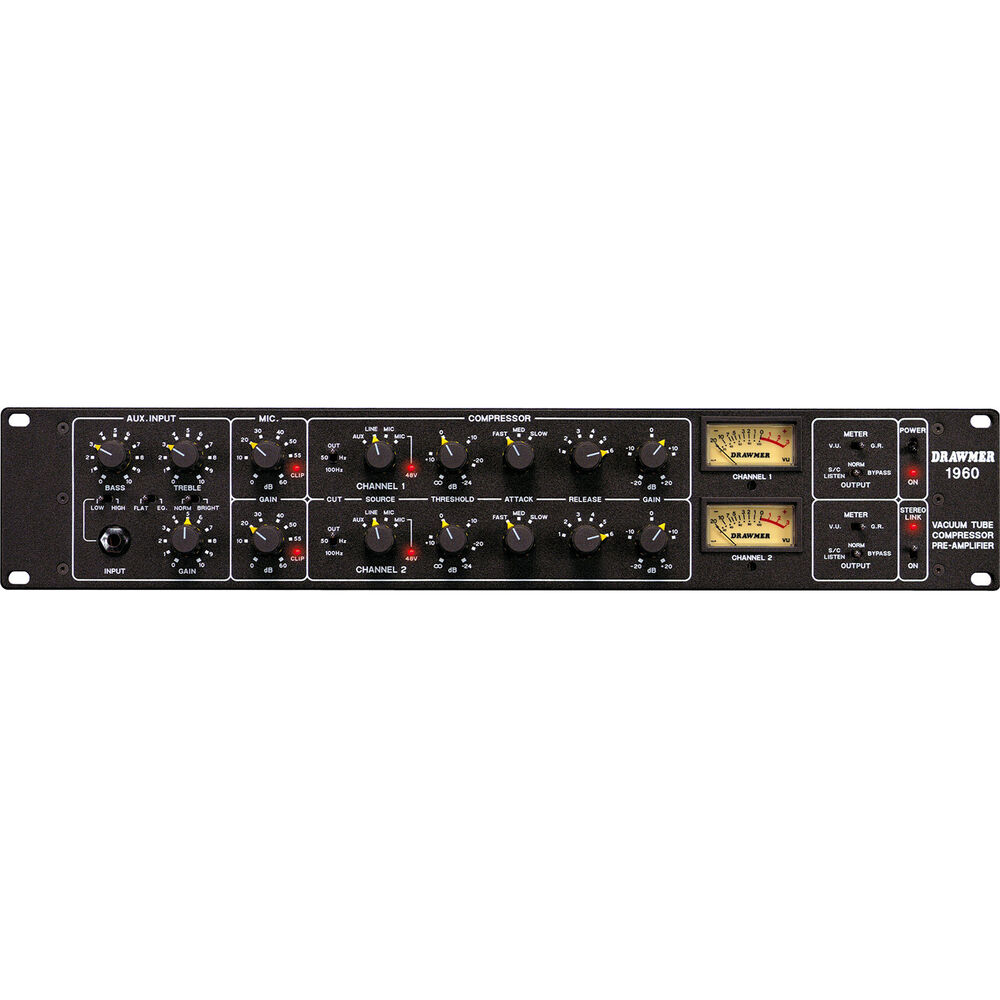

Combining three essential tools for a true studio Swiss-army knife, the 1960 from Drawmer is a hybrid vacuum tube/solid-state 2-channel rack processor that combines a warm, eight-stage soft-knee tube compressor with an ultralow noise microphone preamp and DI box. This 19", 2 RU rack unit is incredibly versatile, providing up to 60 dB of gain on its whisper-quiet mic pre, flexible passive EQ and brightness control on its auxiliary DI section, and simple yet surprisingly versatile compression via its switched attack and program sustain.
With stereo link, the 1960 can be operated as a dual-mono or full stereo processor, and the side-chain input allows you to patch in EQ for frequency-dependent compression or de-essing. The two fully analog, moving coil VU meters can be used to monitor the gain reduction or output signal level, and output gain control provides an additional 20 dB of make-up gain to compensate for any gain lost during the compression process. This unit comes with an AC power cord and an internal, universal power supply for global compatibility.
The attack and release times are switchable rather than being continuously variable, with attack simply offering a choice of slow, medium, and fast, while release has six settings. Positions one to four have fixed release times while positions five and six are two different program-dependent release time modes, making the unit ideally suited to program material with complex dynamics, such as complete stereo mixes and vocals. Interestingly, the attack times are further modified by the choice of release setting, so the range of choices are wider than it might first appear, and selectable high-pass filters at 50 or 100 Hz deliver further flexibility.

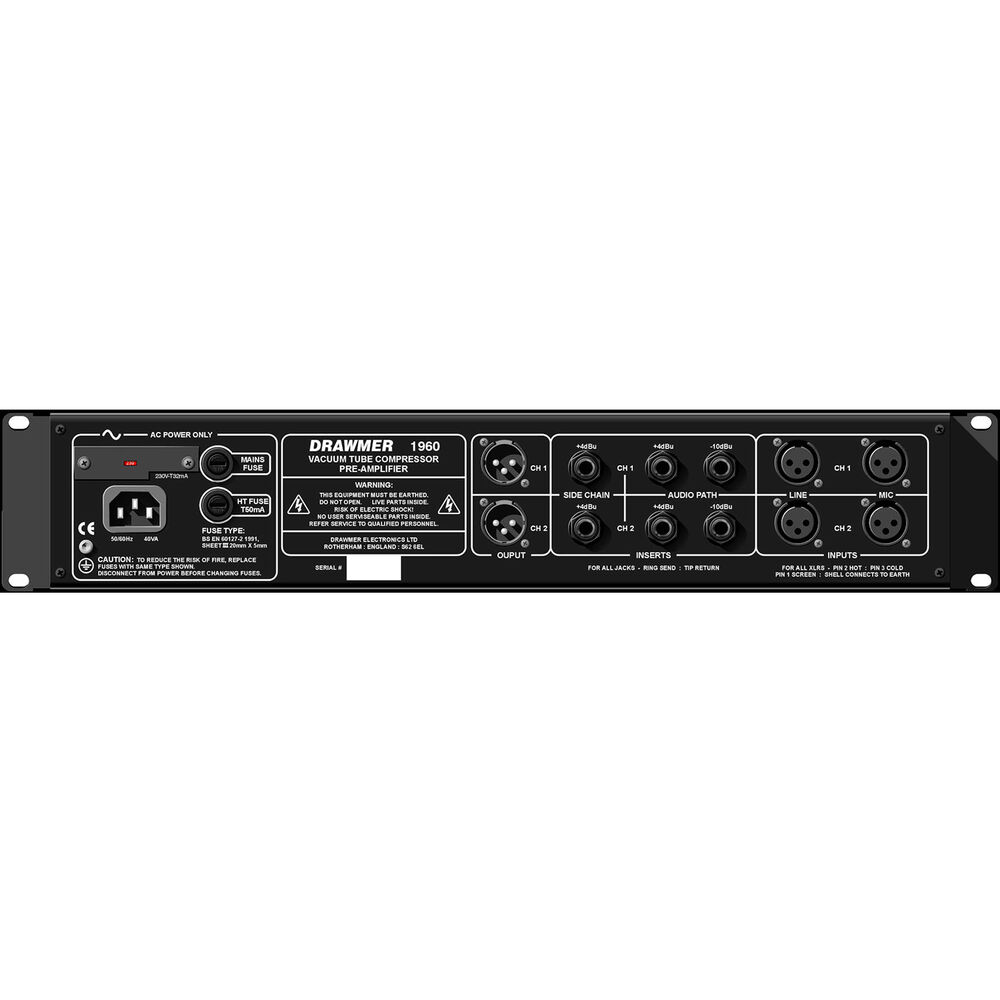

- Two balanced XLR mic inputs and two balanced XLR line inputs
- Balanced XLR outputs
- 1/4" inserts for FX send and return
In the Box
- Drawmer 1960 Stereo Microphone Preamplifier/Compressor/DI Box
- AC Power Cord
- Limited 1-Year Manufacturer Warranty
- Description
- Simple Yet Versatile Compressor
- Low-Noise Microphone Preamp
- Powerful Direct Instrument Input
Drawmer 1960 Specs
| Input Impedances |
Line: 20 Kilohms
Mic: 150 to 600 Ohms Aux: 2.2 Megohms |
| Output Impedance |
50 Ohms
|
| Mic Input Noise (E.I.N.) |
-128.5 dB (at +60 dB Gain)
|
| Maximum Input Level |
+20 dBu
|
| Maximum Output Level |
+22 dBm (Balanced)
|
| Bandwidth |
<10 Hz to 22 kHz (-1 dB)
|
| THD + N |
Line Input with Bypass Selected: <0.1 %
Line Input with Normal Selected: <0.3 % |
| Audio I/O |
2x XLR 3-Pin Mic Input (1 Stereo Pair)
2x XLR 3-Pin Line Input (1 Stereo Pair) 2x 1/4" TRS Line Input (1 Stereo Pair, -10 dBu, Tip Return) 2x 1/4" TRS Line Input (1 Stereo Pair, -4 dBu) 1x 1/4" TS Aux/Hi-Z/Instrument Input (Front Panel) 2x 1/4" TRS Line Input/Output (1 Stereo Pair, Side-Chain, Ring Send) 2x XLR 3-Pin Line Output (1 Stereo Pair) |
| Power Source |
AC Input (Built-In)
|
| Power Consumption |
38 W
|
| Power Requirements |
115 or 230 VAC, 50/60 Hz (User Selectable)
|
| Certifications |
CE
|
| Mounting |
Front: 4 x Standard Rackmount Hole
|
| Color |
Black
|
| Material of Construction |
Metal
|
| Dimensions |
19 x 9.8 x 3.5" / 48.2 x 25 x 8.8 cm
|
| Weight |
13.2 lb / 6 kg
|
| Package Weight |
14.675 lb
|
| Box Dimensions (LxWxH) |
21.8 x 16.4 x 6.6"
|
