E-Image EI-7903 Overview

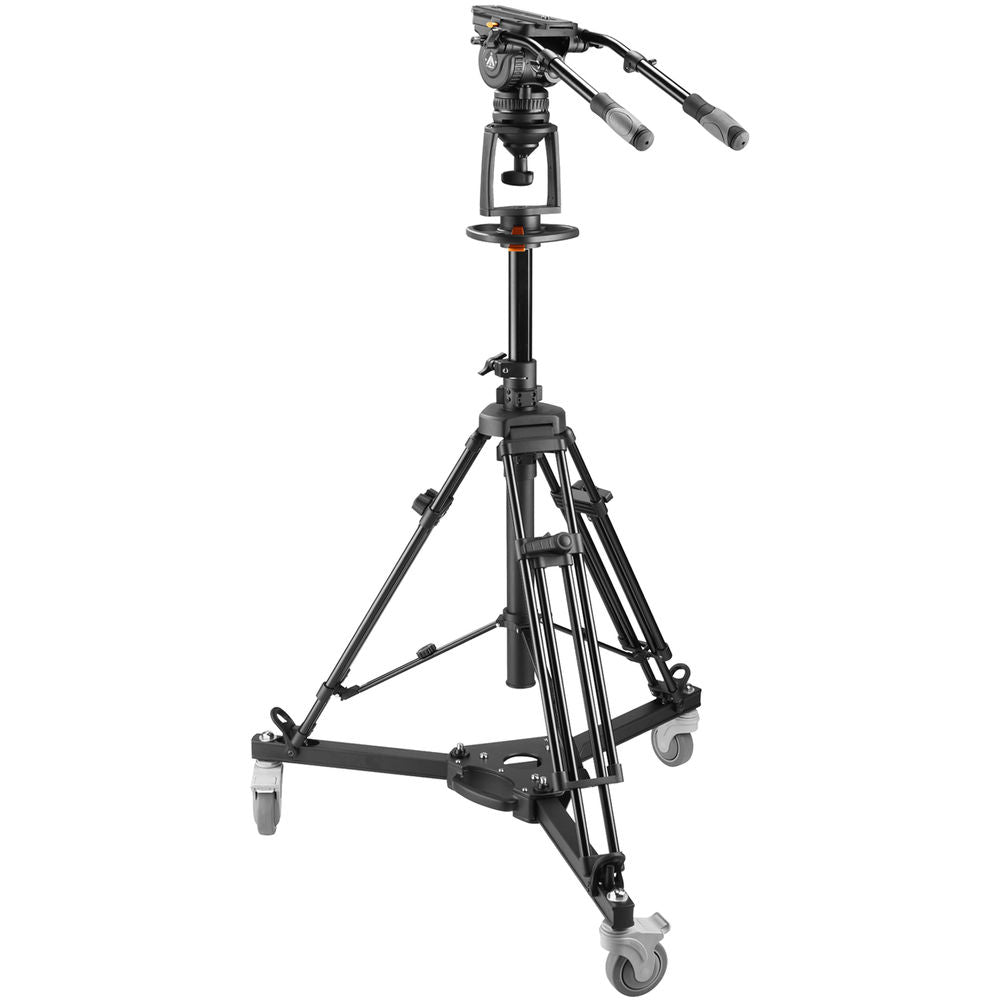

Transport your camera around the set or studio smoothly and quickly with this Air-Assist Pedestal with Height-Adjustment Lever from E-Image. This pedestal is made up of the heavy-duty 7103H fluid head with P3 quick release plate, the AT7903A tripod pedestal, the EI-7005 tripod dolly, two GB3 padded pan handles, and a carry bag.

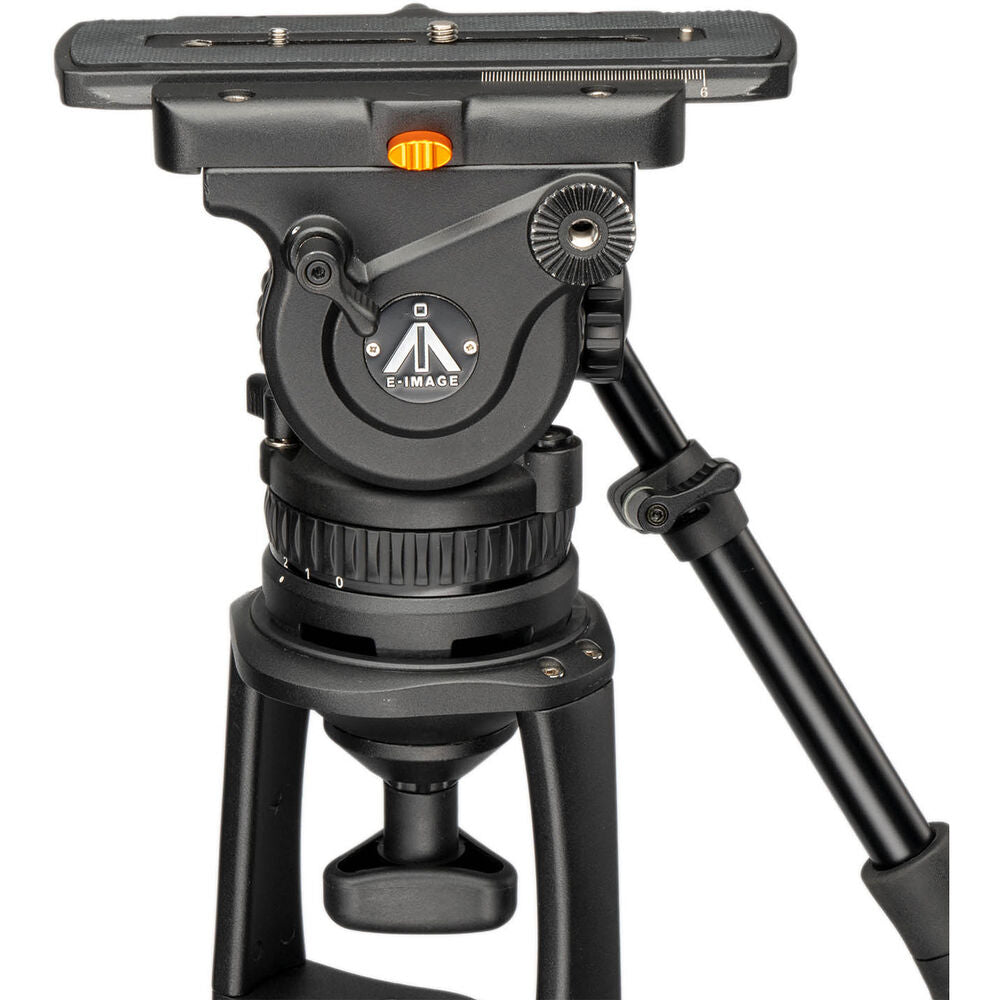

The 7103H head features a 100mm bowl, 33 lb maximum load capacity, an eight-position counterbalance system, and three stages of pan and tilt dampening. The head comes with a large, studio-style, quick release mounting plate that helps to balance large studio cameras or teleprompters. It features two rosettes where you can connect the two included GB3 padded pan handles.

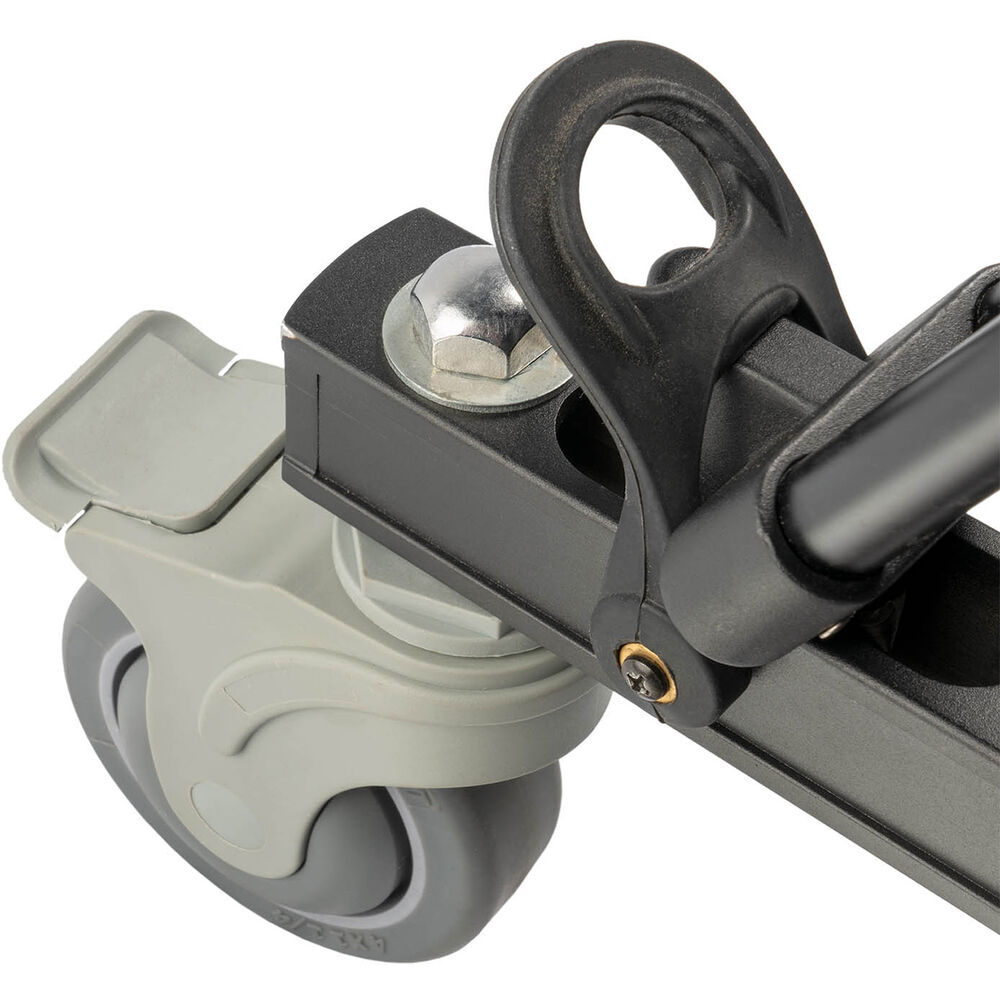

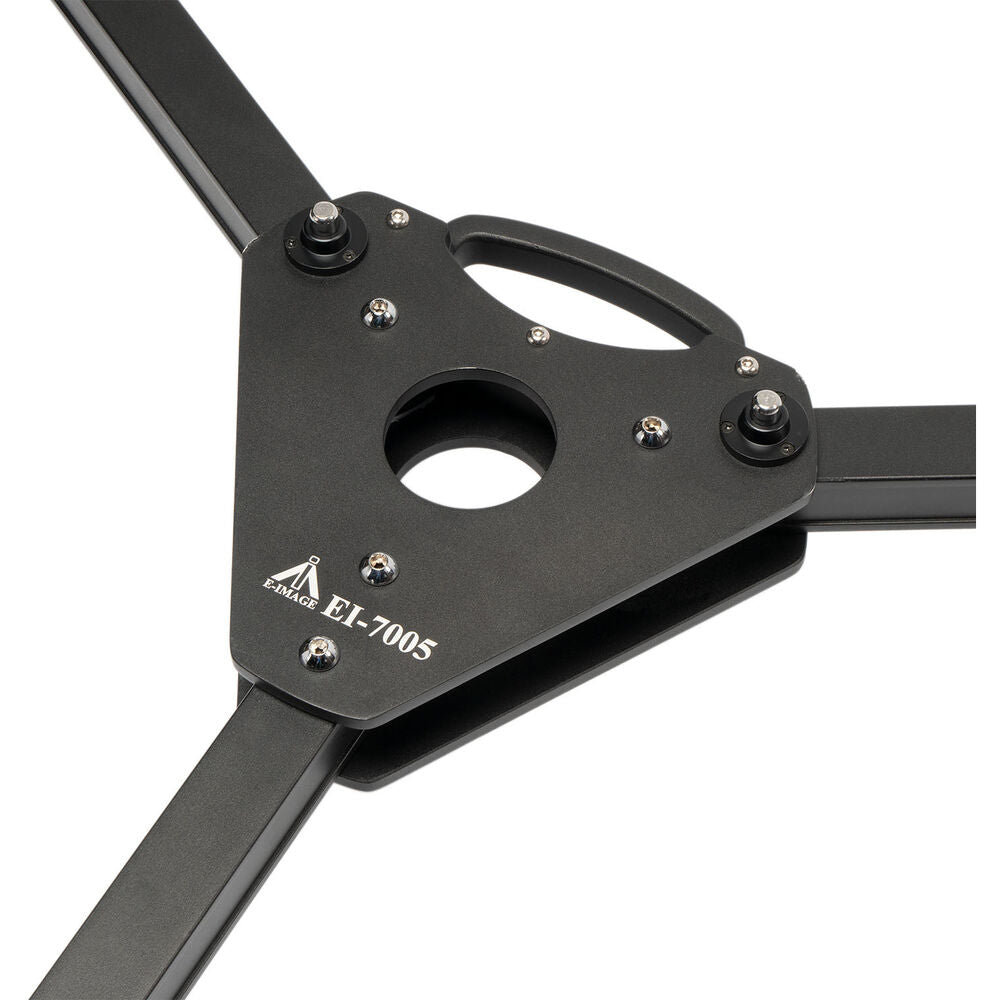

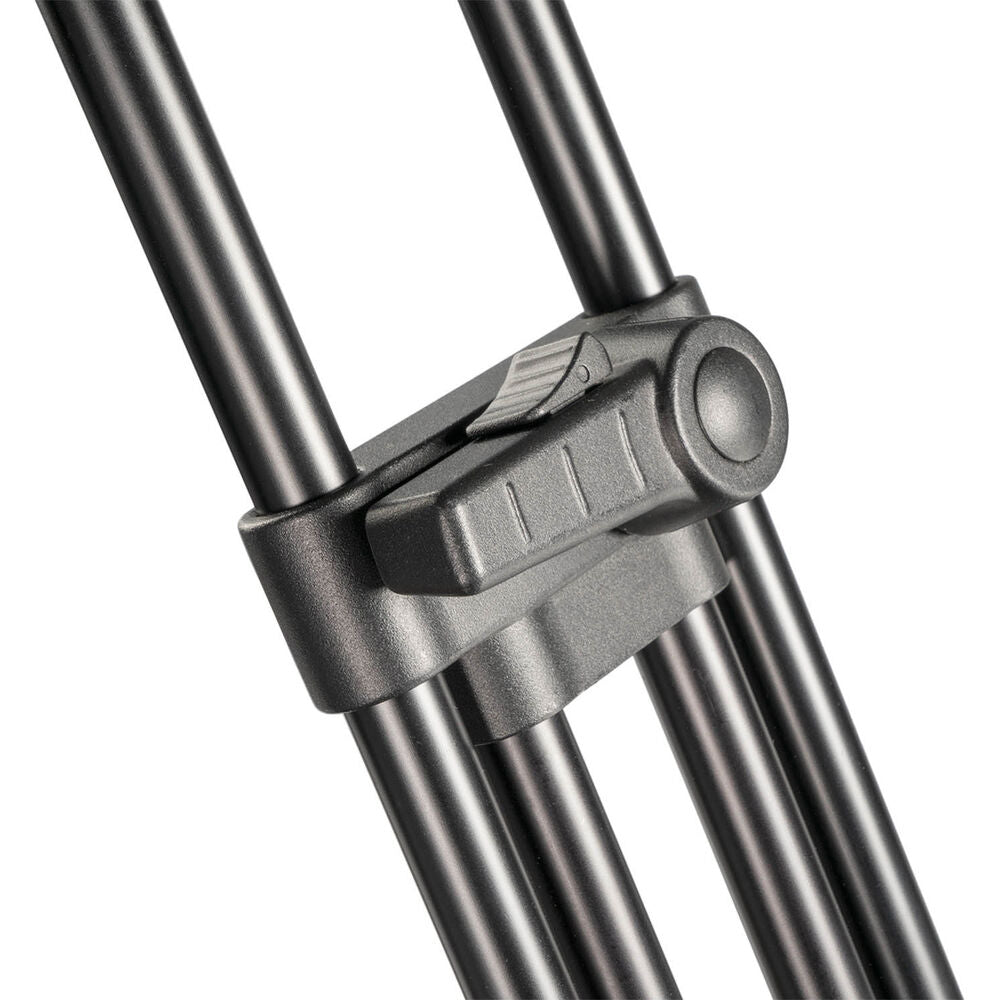

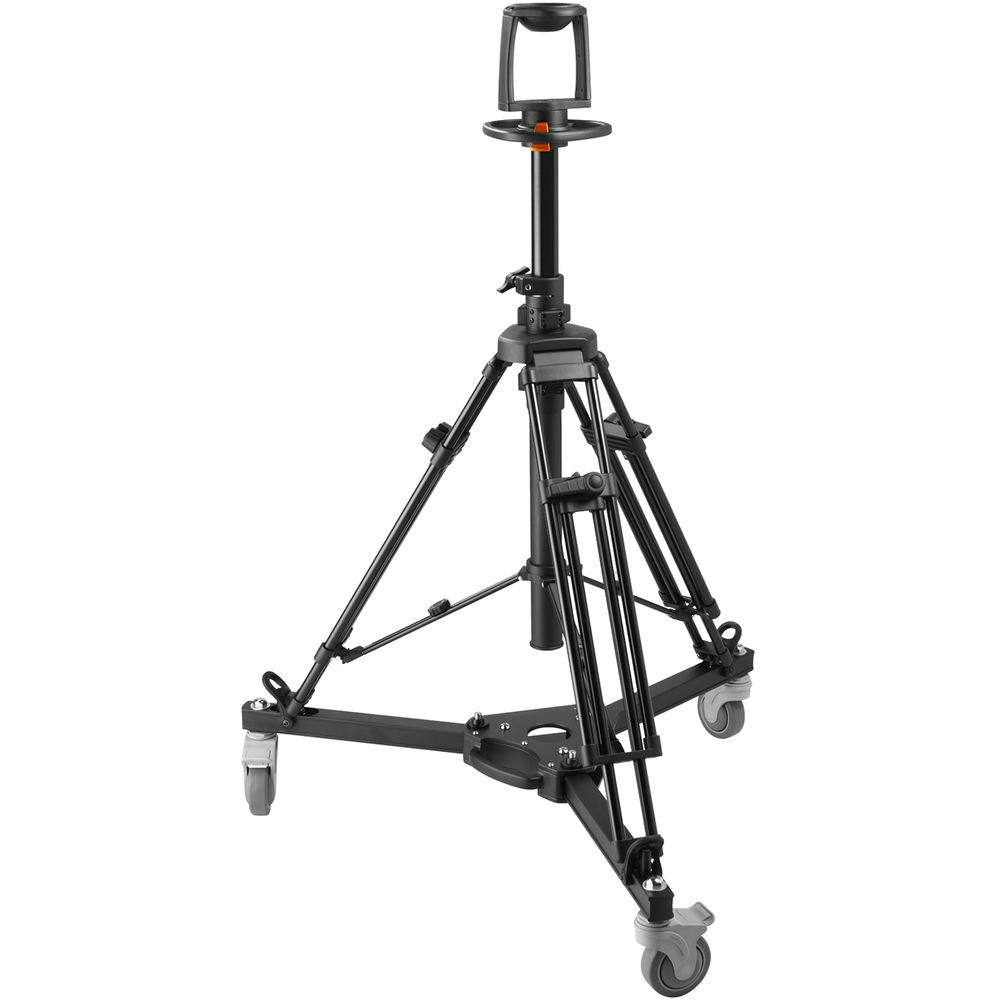

The pedestal tripod legs feature a flip lock leg design as well as an adjustment lever, which allows you to quickly adjust the pedestal height from 47 to 80". The "air-assist" center column has a dampening function that helps with the movement of heavy loads. The EI-7005 dolly features three locking rubber wheels, a load capacity of 220 lb, and a 39.4" footprint diameter, and it can be removed from the legs and folded for transport and storage. The entire system can fit into the included Oscar T30 travel bag.
Transport camera or teleprompter around set or studio
Fluid head with 100mm bowl, 33 lb maximum load, and quick release studio plate
8 stages of counterbalance, 3 stages of tilt and pan drag
Wheeled tripod dolly with 220 lb load, 39.4 footprint diameter, and locking rubber wheels
Air-Assist central column dampens the movement of heavy loads
Height range of 47 to 80"
Two padded pan handles that connect to the head's two rosette mounts are included
In the Box
- E-Image Air-Assist Pedestal with Height-Adjustment Lever
- EI-7103H Heavy-Duty Fluid Head
- E-Image Camera Pedestal Dolly for Heavy-Duty Tripod
- 2 x E-Image Handle for GH15/25 Heavy Duty Fluid Video Heads
- E-Image Quick Release Plate for 710 Series Fluid Video Head
- AT7903A Tripod Legs
- Oscar T30 Travel Bag
E-Image EI-7903 Specs
General
| Material of Construction |
Aluminum |
| Bowl Diameter/Thread |
100 mm |
| Minimum Height |
47" / 119.4 cm |
| Maximum Height |
80" / 203.2 cm |
| Weight |
Not Specified by Manufacturer |
Head
| Load Capacity |
33 lb / 15 kg |
| Counterbalance Range |
0 to 8 Stages |
| Tilt Drag |
0 to 3 Stages |
| Pan Drag |
0 to 3 Stages |
| Bubble Level |
Yes |
Dolly
| Transit Doorway Width |
39.4" / 100 cm |
| Load Capacity |
220.5 lb / 100 kg |
| Wheels |
3 x Rubber |
| Wheel Lock |
Yes |
Packaging Info
| Package Weight |
61 lb |
| Box Dimensions (LxWxH) |
45 x 21 x 10.5" |
