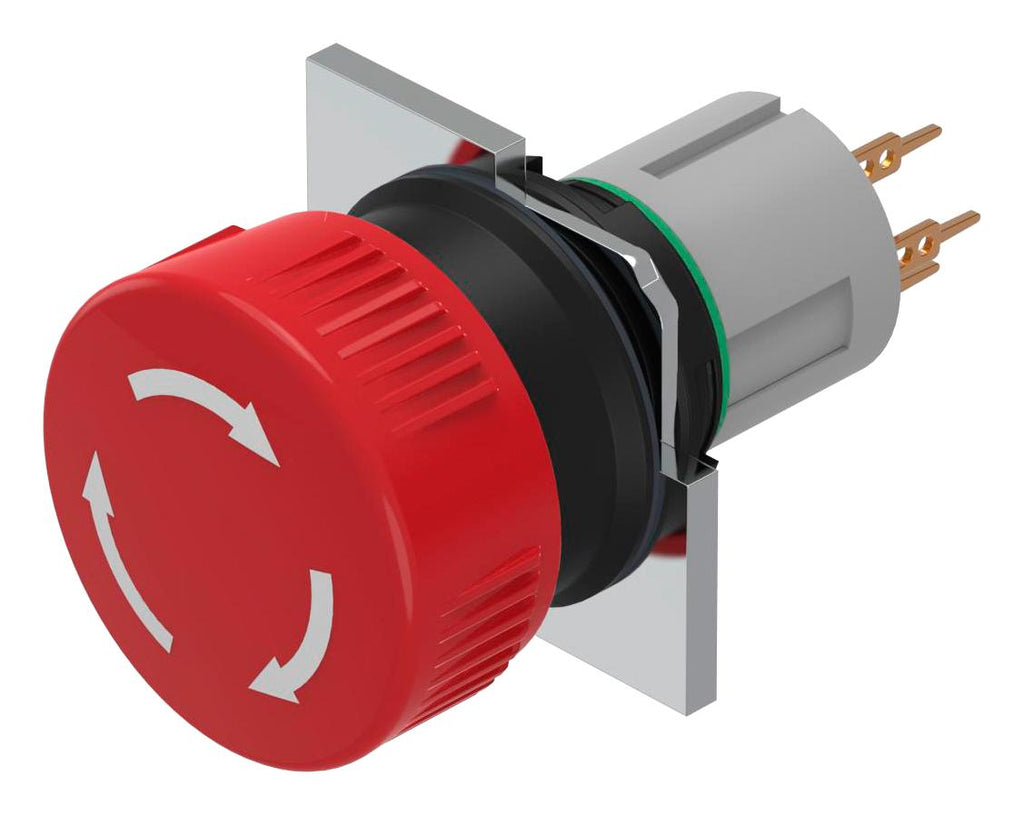

- Complete with stop switch
- � 16mm mounting cut-out, raised design
- � 24.5mm front dimension, round front shape
- Plastic lens material, red lens colour, mushroom lens profile
- Opaque lens optics, non-illuminative lens
- IP65 front protection, universal 2.0 x 0.5mm terminal
- Maintained switching action, 1 NC contacts
- 42VAC/DC switching voltage, 0.1A switching current, gold-plated silver contact material
Product details
| Contact Configuration:
SPST-NC
|
| Switch Operation:
Maintained
|
| Switch Terminals:
PC Pin, Solder Lug
|
| Contact Current Max:
100mA
|
| Contact Voltage AC Nom:
42V
|
| Contact Voltage DC Nom:
42V
|
| Pushbutton Actuator Style:
Round
|
| IP Rating:
IP65
|
| Product Range:
51 Series
|
Other details
| Brand |
EAO |
| Part Number |
51-256.026 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
