Description

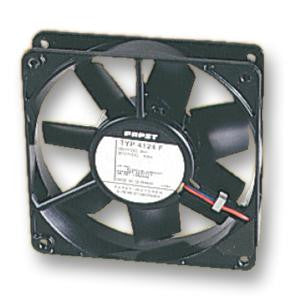

The 4184NGX is a 24VDC standard or basic speed Axial Fan with speed signal, Sintec sleeve bearing and terminal power connection. Die-cast aluminium housing and fibreglass-reinforced plastic (PA) impeller. Clockwise direction of rotation looking at rotor, inlet over bars direction of air flow, flat plugs 2.8 x 0.5mm connection with mounting bore hole of 3.7mm. The DC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.
- 2800RPM Speed rating
- 3.6W Rated power
- -20 to 75°C Maximum ambient temperature range
- Protected against reverse polarity and locking
Applications
HVAC
Product details
| Supply Voltage | 24V |
| Power Connection Type | Terminals |
| Flow Rate - Metric | 160m³/h |
| Fan Frame Size | 119mm |
| Current Type | DC |
| Product Range | 4100N Series |
| Flow Rate - Imperial | 94.2cu.ft/min |
| Current Rating | - |
| Noise Rating | 44dBA |
| Bearing Type | Sleeve |
| External Depth | 38mm |
Other details
| Brand | EBM-PAPST |
| Part Number | 4184NGX |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Technical Data Sheet EN | |
