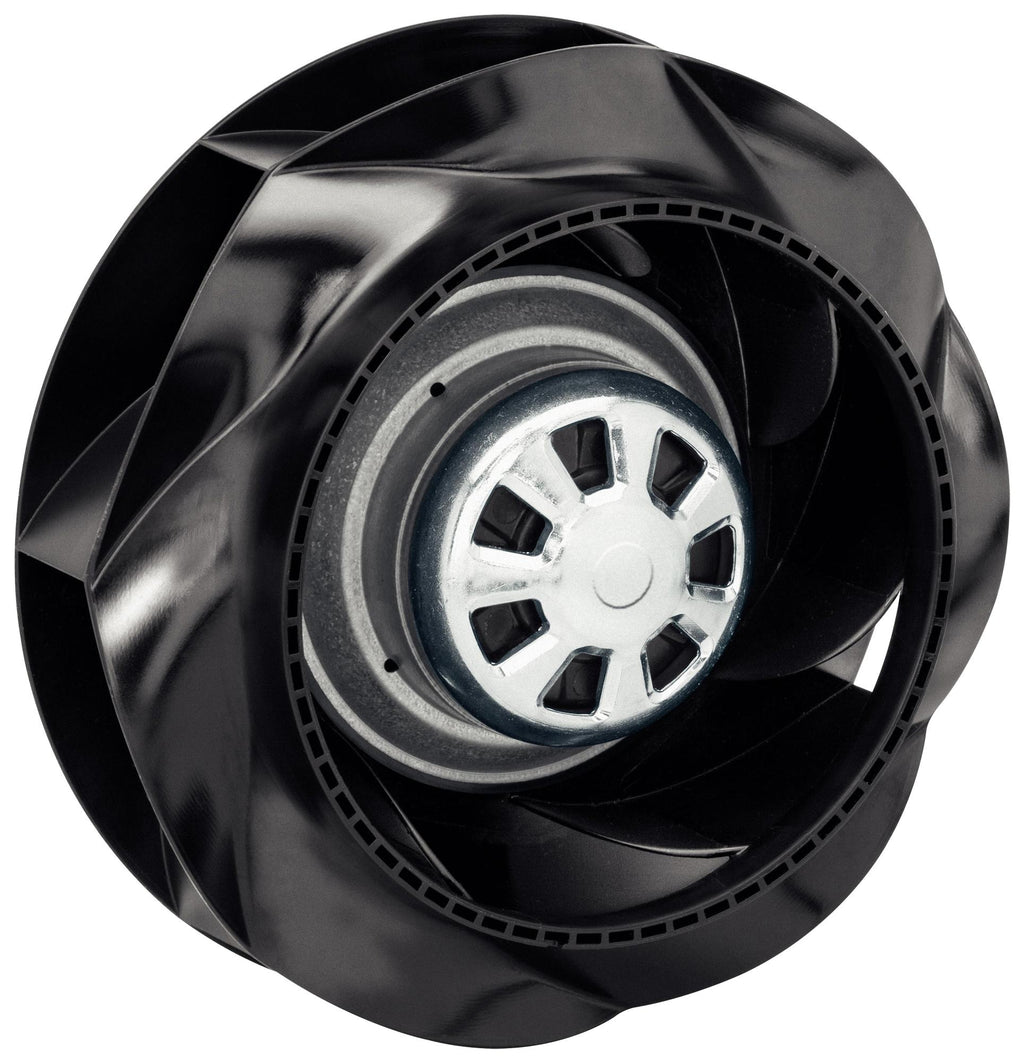

RadiCal fans are one piece backward-curved impellers made of high-tech composite material. These centrifugals feature highly efficient GreenTech EC technology providing low-pressure solutions with backward-curved blades, used primarily as intake fans and do not require a scroll housing.
- Impeller sizes 133mm to 250mm
- Voltage range 200VAC to 240VAC, 50 / 60Hz
- Significantly reduce power requirements
- Aerodynamic shape reduces noise emissions
- Hybrid construction makes impellers highly corrosion-resistant
- IP54 protection
- Mechanical compatibility allows easy replacement of existing AC technology
- Open-collector tachometer signal output
- 100% speed controllable via analogue or digital interface
- Supplied with inlet ring
- EC control options available
Product details
| Blower Type:
EC Centrifugal
|
| Supply Voltage:
240V
|
| Voltage Type:
AC
|
| Fan Frame Size:
133mm
|
| External Depth:
13mm
|
| Air Flow - CFM:
165CFM
|
| Air Flow - m3/min:
4.67m³/min
|
| Noise Rating:
-
|
| Bearing Type:
Ball Bearing
|
| Power Connection Type:
7 Lead Wires
|
| Power Rating:
27W
|
| Product Range:
-
|
| IP Rating:
IP54
|
Other details
| Brand |
EBM-PAPST |
| Part Number |
R3G133-RA01-03 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
