Description

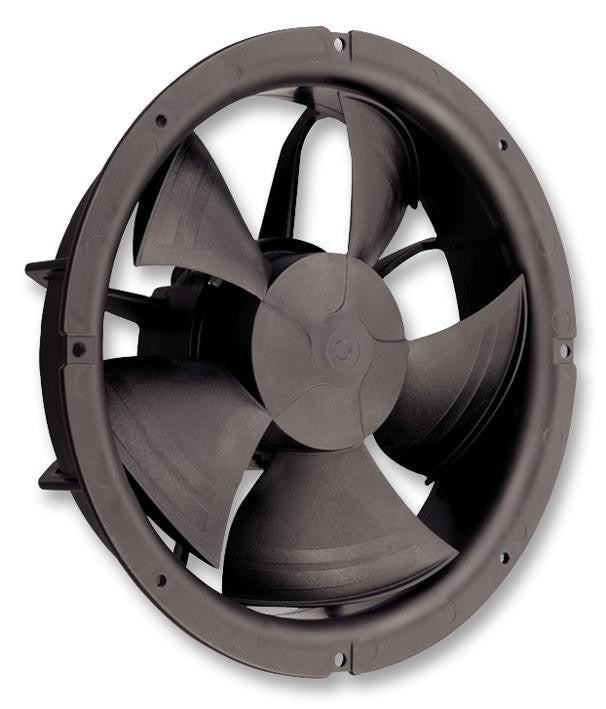

The W1G200-EC87-20 from EBM Papst is an energy saving AC axial fan. The fan made of plastic polypropylene wall ring and fibreglass-reinforced polyamide plastic blades. Electrical connection via line cord with plug.
- Nominal voltage is 230VAC
- Power input is 11W
- Ambient temperature range from -30°C to 50°C
- Air flow is 500m³/h
- Speed is 1300rpm
- Sound pressure level is 41dBA
- Ball bearing
- Mass is 1Kg
- Insulation class B
- Direction of rotation is counter-clockwise, seen on rotor
Applications
Industrial
Product details
| Supply Voltage | 230V |
| Power Connection Type | Power Cord |
| Flow Rate - Metric | 500m³/h |
| Fan Frame Size | 200mm |
| Current Type | AC |
| Product Range | W1G200 Series |
| Flow Rate - Imperial | 294.29cu.ft/min |
| Current Rating | 70mA |
| Noise Rating | 41dBA |
| Bearing Type | Ball |
| External Depth | 79mm |
Other details
| Brand | EBM-PAPST |
| Part Number | W1G200-EC87-20 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 14940.94 |
| 3-5 | ₹ 14788.48 |
| 5-10 | ₹ 14483.57 |
| 10+ | ₹ 14178.65 |
Bulk discount will be automatically applied during checkout based on quantity.
