Description

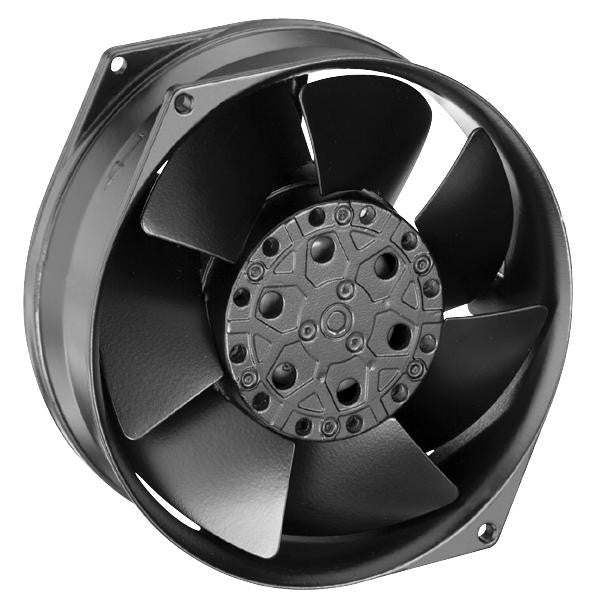

The W2S130-AA25-01 is a 115VAC Axial Fan with wall ring, ball bearing, wire leaded power connection and 2-pole shaded pole motor. Die-cast aluminium housing, impeller of sheet steel, directly welded onto rotor. External rotor shaded pole motor, counter-clockwise direction of rotation seen on rotor air exhaust over struts air flow direction with S1 operation mode.
- 38W Rated power
- 80°C Maximum permissible ambient motor temperature
- Protection class-I
- IP20 Protection rating
Applications
HVAC
Product details
| Supply Voltage | 115V |
| Power Connection Type | 2 Lead Wires |
| Flow Rate - Metric | 6.33m³/min |
| Fan Frame Size | 172mm |
| Current Type | AC |
| Product Range | W2S130 Series |
| Flow Rate - Imperial | 223.6cu.ft/min |
| Current Rating | - |
| Noise Rating | 53dBA |
| Bearing Type | Ball |
| External Depth | 55mm |
Other details
| Brand | EBM-PAPST |
| Part Number | W2S130-AA25-01 |
| Quantity | Each |
| Technical Data Sheet EN |  |
