Description

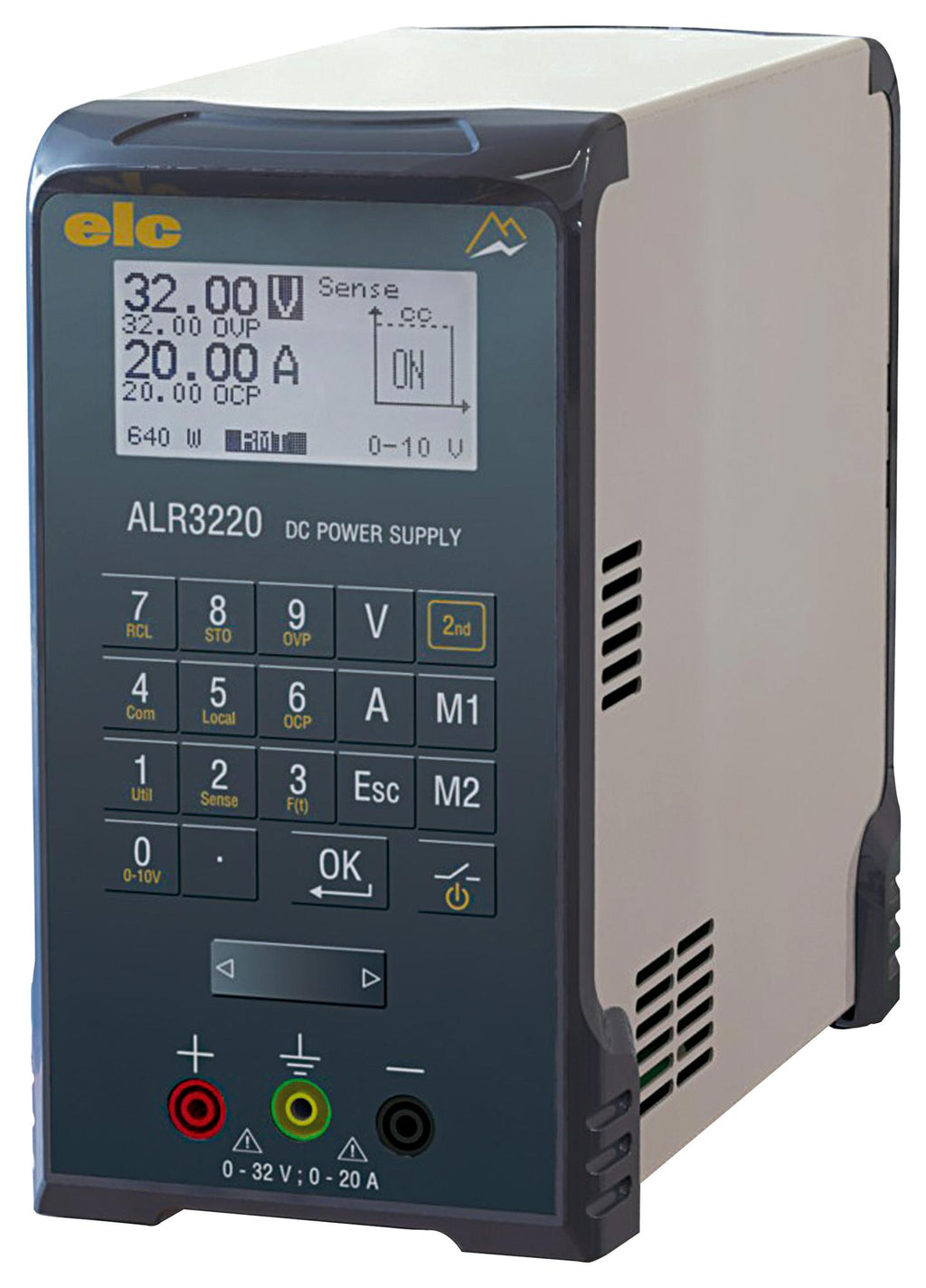

The ALR3220 from ELC is a 0V to 32V, 0 to 20A programmable power supply. It provides protection against short-circuits, by current regulation, against overtemperature by fan and thermal circuit-breaker and against overcurrent on main input, by internal fuses. It has 4 digit graphic LCD 128 x 64 pixels display with white backlight for clear view.
- Automatic constant voltage operation adjustable voltage of 0 to 32V(0 to ±10mV) with 10mV resolution
- Automatic constant current operation adjustable current from 0Amps to 20Amps with 10mA resolution
- Input voltage of 230Volts ±10%, 50 / 60Hz
- Power consumption of 770W
- 16 memory configurations

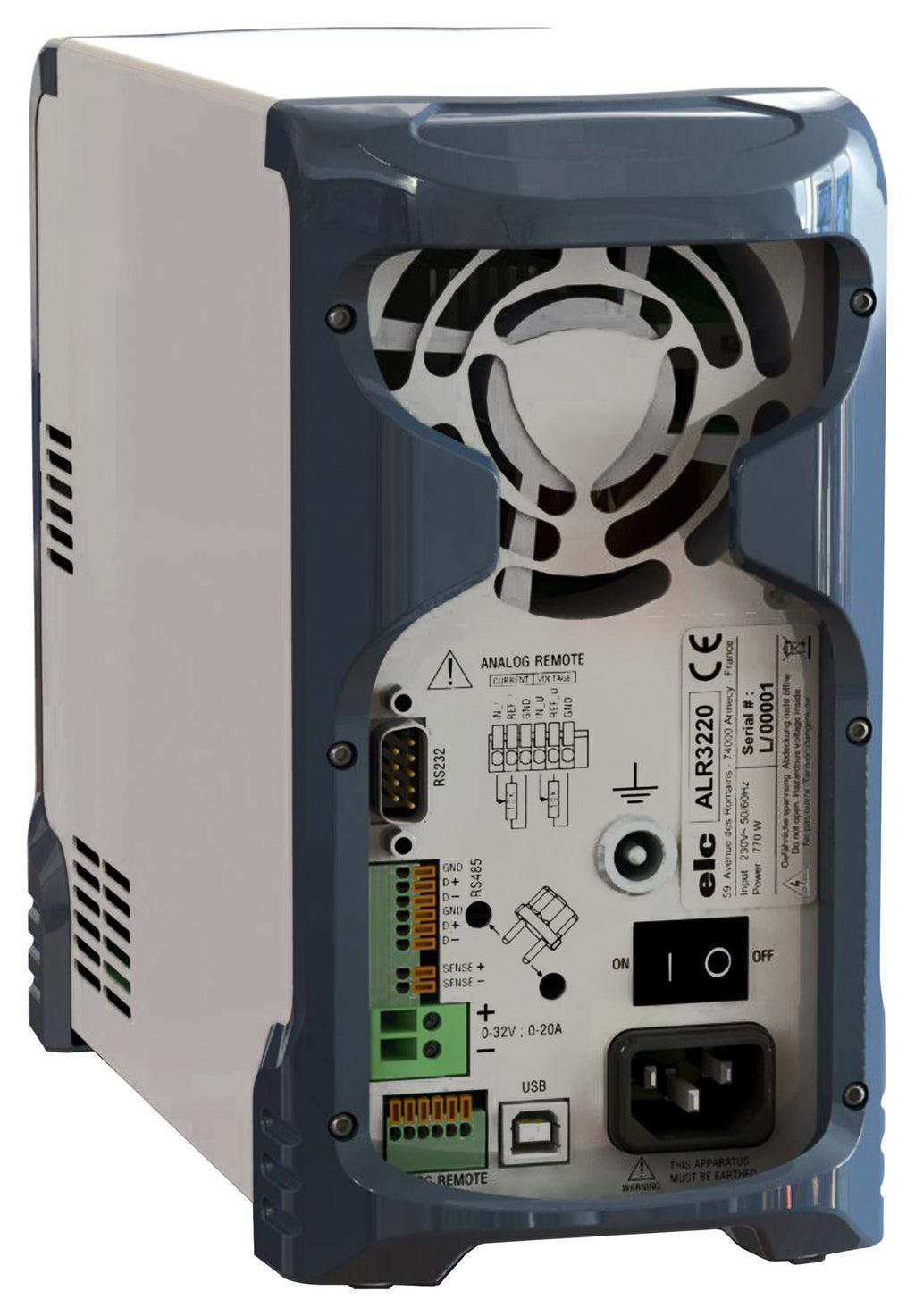

- USB, RS232 and RS485 interface & 0-10V insulated interface
- Complies with EN 61326-1, EN 55011, EN 61010-1 and CAT II standards
- Operating temperature range from +5°C to +40°C
- Dimension is 155mm x 250mm x 335mm and weight is 3.15Kg

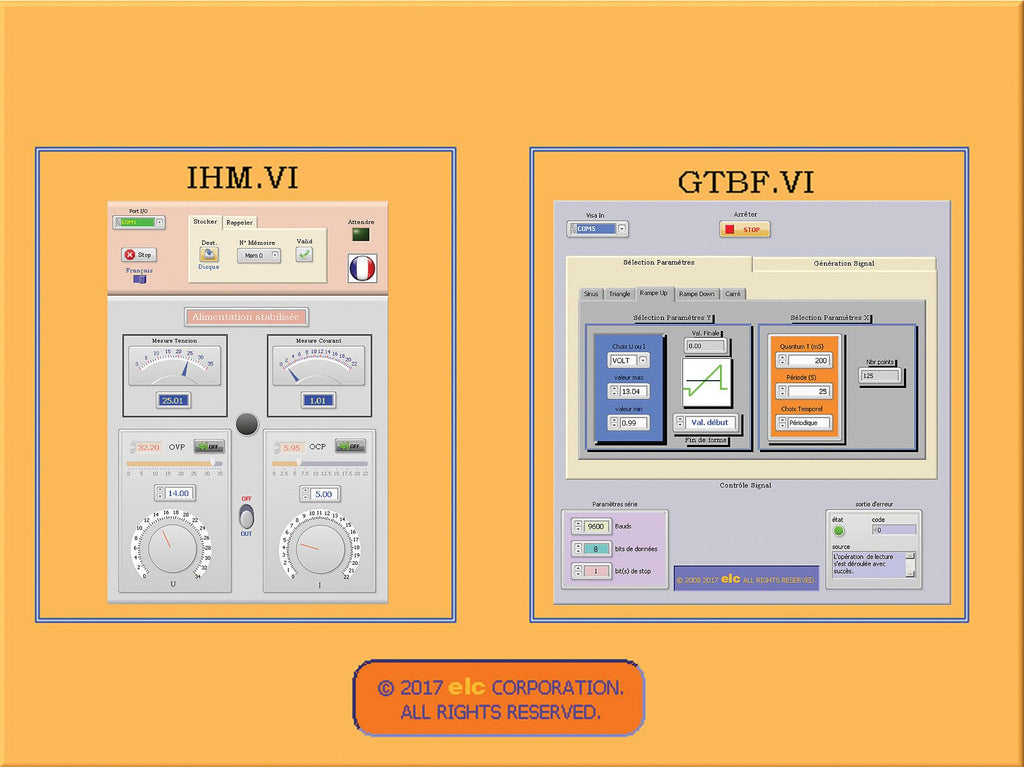

- LabVIEW drivers and executable provided
Test & Measurement
Footnotes In addition, we have calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.Other details
| Brand | ELC |
| Part Number | ALR3220 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Certificate of Conformity EN | |
