Description

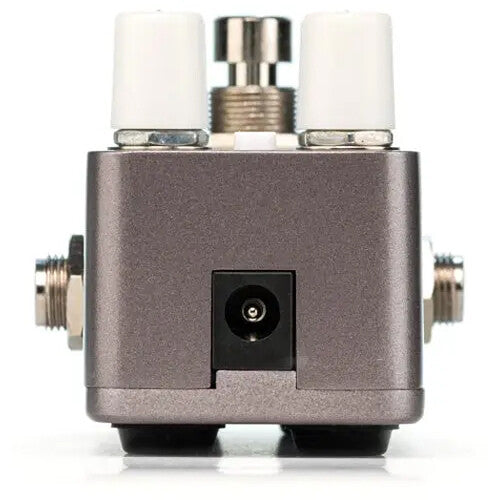

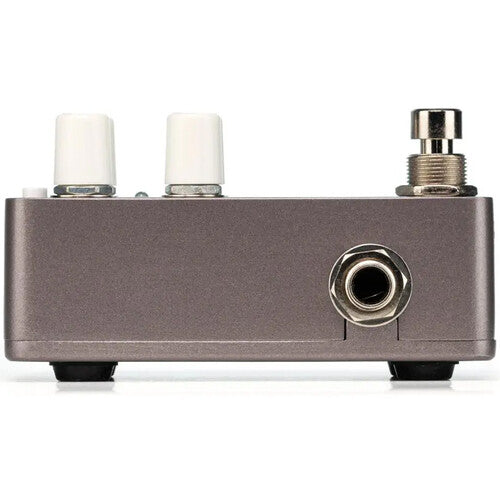

Electro-Harmonix PICO PLATFORM Overview
Stuffing the comp section of the Stereo Platform into a compact Pico chassis, the Pico Platform from Electro-Harmonix is a powerful studio-style compressor and limiter pedal. With two selectable modes and two compression curves (soft or hard knee), you can easily sculpt dynamics with precision.
With the Blend control knob, you can adjust the wet/dry mix for built-in parallel compression. Depending on which mode you have selected (compression or limiting), the Sustain knob adjusts either compression ratio or limiting threshold. Further controls include an Attack knob and a Volume knob that controls total output volume. The transparent circuit on the Pico Platform avoids tonal coloration, providing you with a modern and pure dynamics processor. The Pico Platform includes a 9V power adapter.
In Limiter mode, turning the Sustain knob clockwise decreases the threshold level, which forces the limiter to act sooner. The compression ratio is constant and practically infinite in Limiter mode.
Hard knee creates a more dramatic compression effect, while soft knee is smoother. Hard knee is selected by default from the factory. Changing the compression curve is achieved by pressing and holding the Type button.
In the Box
- Electro-Harmonix Pico Platform Compressor and Limiter Pedal
- 9V Power Adapter
- Limited 90-Day Manufacturer Warranty
Additional Resources
Electro-Harmonix PICO PLATFORMSpecs
| Input Impedance |
2.2 Megohms
|
| Maximum Input Level |
+1.5 dBu
|
| Maximum Output Level |
+2.1 dBu
|
| Output Impedance |
680 Ohms
|
| Audio Circuit Type |
Digital
|
| Buffer |
Buffered Bypass
|
| Controls and Indicators |
4 x Rotary Knob (Volume, Sustain, Attack, and Blend)
1 x Button (Compressor Mode and Limiter Mode) 1 x Footswitch (On/Bypass) 1 x Green/Orange LED (Compressor Mode and Limiter Mode) |
| Audio I/O |
1x 1/4" TS Hi-Z/Instrument Input
1x 1/4" TS Hi-Z/Instrument Output |
| Power Source |
AC Adapter with Power Brick (Included)
|
| DC Input Power |
9.6 to 10.5 VDC at 100 mA
|
| Operating Current |
100 mA (Typical)
|
| Color |
Gray
|
| Environmental Resistance |
No
|
| Dimensions |
3.65 x 2 x 2" / 9.27 x 5.1 x 5.1 cm
|
| Weight |
Not Specified by Manufacturer
|
| Package Weight |
1.18 lb
|
| Box Dimensions (LxWxH) |
7.4 x 5.4 x 2.4"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
