Description

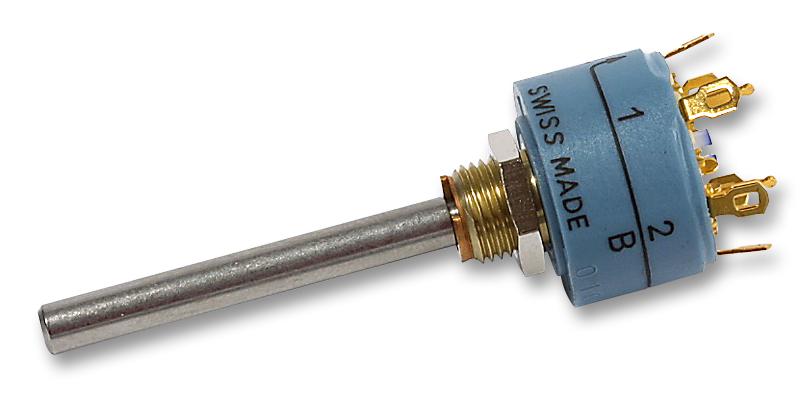

The 01-1234 is a 3-position non-illuminated Rotary Selector Switch with 60° non-shorting index angle and solder eyelets. Its ingenious design makes obvious choice of audio, industrial and medical product design professionals. It has stainless steel shaft, nickel silver bushing, fibre enforced plastic housing and gold-plated copper alloy soldering leads.
- UL94-HB Flammability rating
- 25000 Switching cycles with up to 6Ncm switching torque
- 3-micron Gold-plated contacts
- Robust metal bushing and shaft
- Up to IP68 front panel sealing
- -40 to 85°C Operating temperature range
Medical, Audio, Test & Measurement, Sensing & Instrumentation, Avionics, Automation & Process Control, Building Automation, Industrial
Other details
| Brand | ELMA |
| Part Number | 01-1234 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 12164.76 |
| 3-5 | ₹ 12040.63 |
| 5-10 | ₹ 11792.37 |
| 10+ | ₹ 11544.11 |
Bulk discount will be automatically applied during checkout based on quantity.
