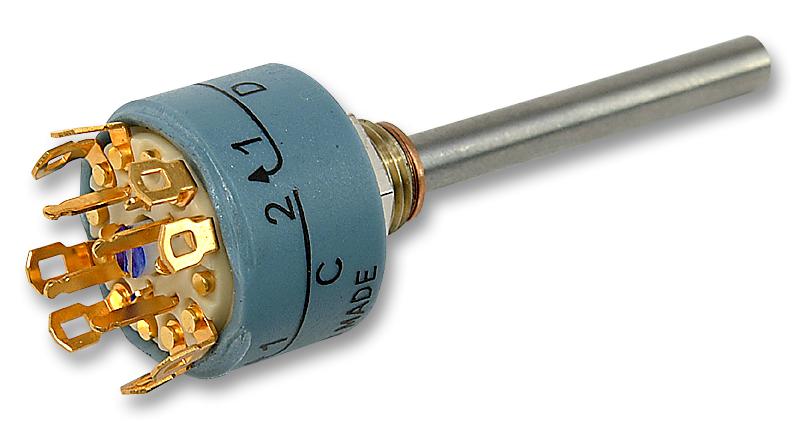

The 01-1424 from Elma is a rotary switch. It is a compact, 6 position selector switch of type 01 version with 60° indexing angle and non shorting circuit.
- 4 x 2 poles per wafer
- Available with solder eyelets
- 25000 switching cycles with upto 6Ncm switching torque
- Gold plated contacts
- Robust metal housing with metal shaft
- Operating temperature range from -40°C to 85°C
- Stainless steel shaft and Nickel silver bushing
- Maximum switching voltage is 42VDC
- Maximum load current is 2A
Applications
Industrial, Power Management, Automation & Process Control, Avionics, Sensing & Instrumentation, Medical, Audio
Product details
| No. of Switch Positions |
2 Position |
| No. of Poles |
4 Pole |
| Angle of Throw |
60° |
| Contact Current AC Max |
- |
| Contact Voltage AC Max |
- |
| Product Range |
- |
| Illumination |
Non Illuminated |
| Contact Current DC Max |
2A |
| Contact Voltage DC Max |
42V |
Other details
| Brand |
ELMA |
| Part Number |
01-1424 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
