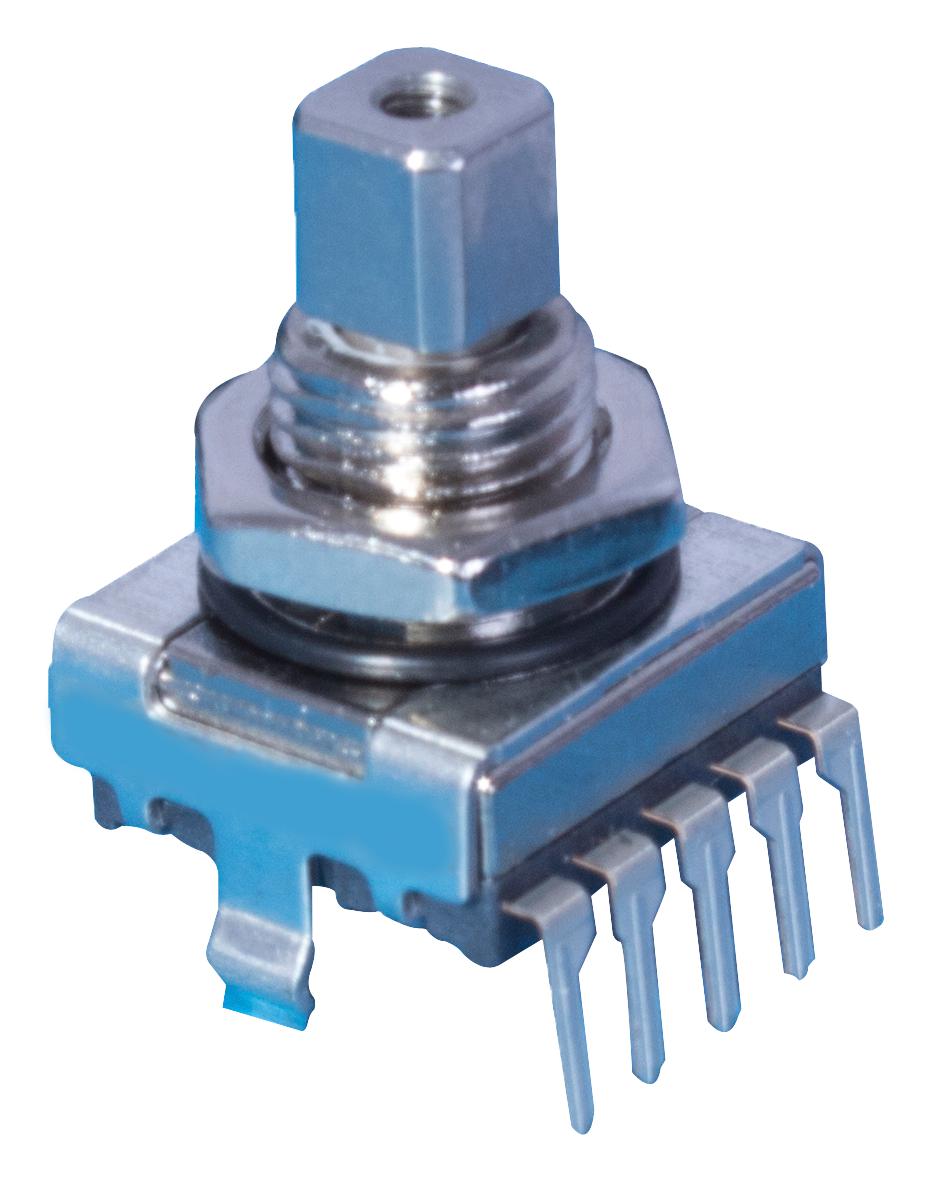

E33 series high performance encoder are typically used in application such as value and menu control for industrial PLCs, avionics, measurement and test equipment, frequency and channel selection for two way radios, user interface controls for medical devices and volume and menu setting for transportation control and entertainment systems.
- THT vertical mounting, threaded M7 x 0.75 x 6mm (nut supplied, packed separately) bushing
- IP68 shaft and front panel sealing
- Rotational life up to ONE MILLION (1M) revolutions
- Switching torque up to 1.5Ncm (remains consistent over lifetime)
- Gold plated contacts, body size is 11.5 x 12.3 x 4.9mm
- Standard resolution of 16 detent
- Robust metal housing with stainless steel shaft
- Push button with up to 6N push force
- Operating temperature from -40 to +85°C
- Reflow ability
Product details
| Encoder Technology:
Mechanical
|
| Encoder Type:
Incremental
|
| Encoder Resolution:
16PPR
|
| No. of Detents:
16 Detents
|
| Orientation:
Vertical
|
| Push Switch:
With Push Switch
|
| Encoder Output:
Quadrature
|
| Encoder Mounting:
Through Hole
|
| Product Range:
E33 Series
|
| Rotational Speed Max:
60rpm
|
| No. of Channels:
2Channels
|
| Shaft Type:
Square with Threaded Hole
|
| Shaft Length:
5mm
|
| Shaft Diameter:
4.5mm
|
| Supply Voltage Min:
-
|
| Supply Voltage Max:
-
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
85°C
|
| IP Rating:
IP68
|
| Termination:
PC Pin
|
Other details
| Brand |
ELMA |
| Part Number |
E33-VT652-M45T |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
